GWN7001/GWN7002/GWN7003

Product Description

Enterprise-Grade Routing and Security for Growing Businesses

The Grandstream GWN7001, GWN7002, and GWN7003 are powerful Multi-WAN Gigabit VPN routers designed to provide businesses with comprehensive wired, wireless, and VPN networking solutions. With built-in firewalls, advanced security features, and high-performance routing capabilities, these routers deliver enterprise-grade protection and reliable connectivity for single or multiple locations.

Whether you need to connect remote employees via VPN, ensure internet redundancy with failover, or manage a network of Wi-Fi access points, the GWN7000 series offers the flexibility, performance, and security required for modern business networks. Ideal for small-to-medium businesses, retail, education, hospitality, healthcare, and more, these routers provide a complete networking solution in a single device.

Three Models for Every Business Need

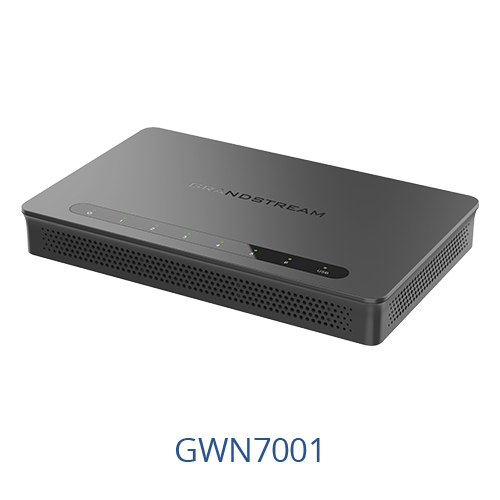

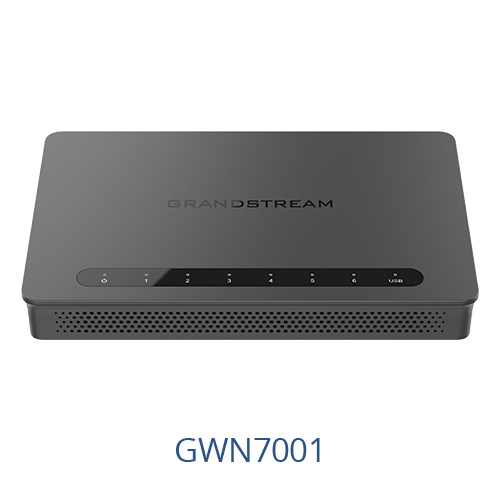

GWN7001 – Compact and Powerful

• Network Interfaces: 6x Gigabit Ethernet ports (all ports support WAN/LAN configurable)

• NAT Throughput: 2.2Gbps

• IPsec VPN Throughput: 530Mbps

• NAT Sessions: 30,000

• Max Concurrent VPN Tunnels: Up to 50

• Embedded AP Management: Manages itself and up to 100 GWN APs

• Mounting: Desktop and wall mounting

• Ideal For: Small offices and home offices requiring reliable routing and VPN connectivity.

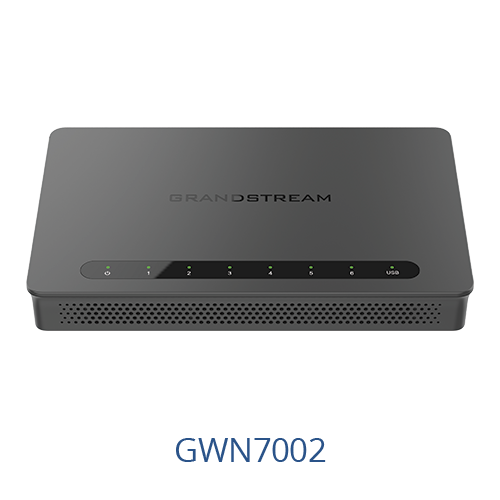

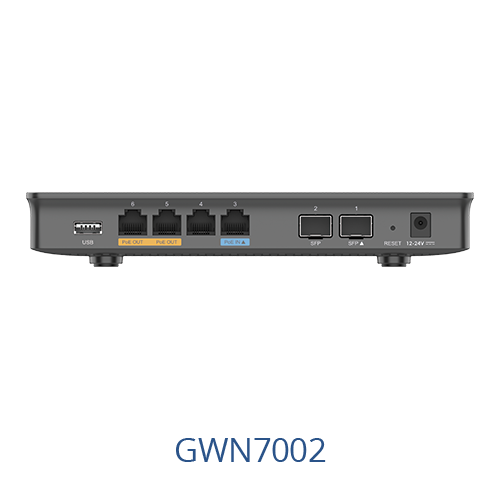

GWN7002 – Enhanced Connectivity with PoE

• Network Interfaces: 2x 2.5 Gigabit SFP ports and 4x Gigabit Ethernet ports (all ports support WAN/LAN configurable)

• PoE Output: 2x PoE out ports (48V Passive PoE or IEEE802.3af)

• PoE Power Budget: 12.8W (24V DC 1A) or 24.8W (24V DC 1.5A)

• NAT Throughput: 2.2Gbps

• IPsec VPN Throughput: 530Mbps

• NAT Sessions: 30,000

• Max Concurrent VPN Tunnels: Up to 50

• Embedded AP Management: Manages itself and up to 100 GWN APs

• Mounting: Desktop, wall-mount, or rack-mount (brackets included)

• Ideal For: Small-to-medium businesses needing PoE for IP phones, cameras, or access points.

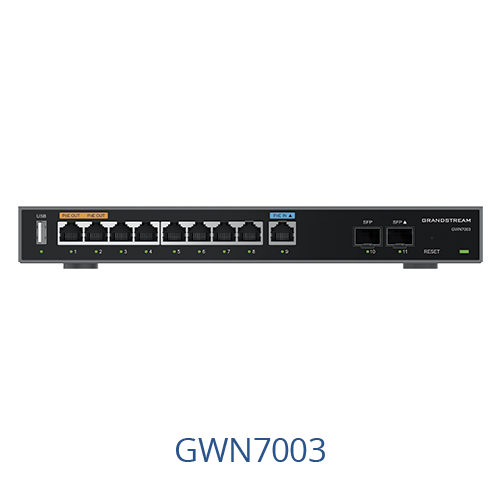

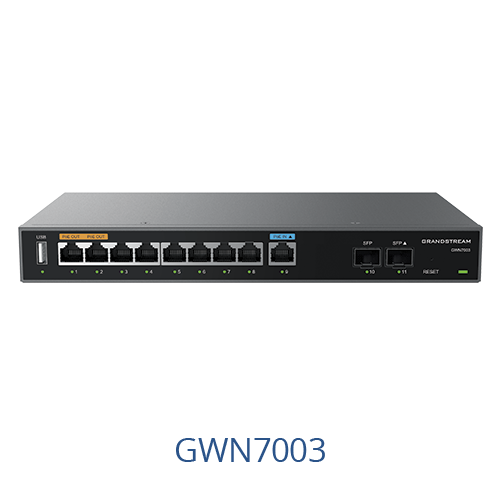

GWN7003 – High-Performance with Maximum Connectivity

• Network Interfaces: 2x 2.5 Gigabit SFP ports and 9x Gigabit Ethernet ports (all ports support WAN/LAN configurable)

• PoE Input: 1x GbE RJ45 port with IEEE 802.3af/at PoE Input

• PoE Output: 2x PoE out ports (48V Passive PoE or IEEE802.3af)

• PoE Power Budget: 12.8W (24V DC 1A), 24.8W (24V DC 1.5A), or 36W (24V DC 2A)

• NAT Throughput: 2.2Gbps

• IPsec VPN Throughput: 530Mbps

• NAT Sessions: 60,000

• Max Concurrent VPN Tunnels: Up to 100

• Embedded AP Management: Manages itself and up to 150 GWN APs

• SD-WAN Support: Advanced WAN optimization and management

• Mounting: Desktop, wall-mount, or rack-mount (brackets included)

• Ideal For: Medium-to-large businesses, branch offices, and multi-site deployments.

Key Features and Benefits

High-Performance Routing and Switching

• 2.2Gbps NAT Throughput: Delivers fast and efficient routing performance for bandwidth-intensive applications.

• Multiple Gigabit RJ45 Ports: Provides high-speed wired connectivity for all your network devices.

• 2x 2.5 Gigabit SFP Ports (GWN7002/GWN7003): Enables high-speed fiber connectivity for backbone networks and long-distance transmission.

• 530Mbps IPsec VPN Throughput: Ensures fast and secure VPN connections for remote employees and branch offices.

Power over Ethernet (PoE) Capabilities (GWN7002/GWN7003)

• 2x PoE Output Ports: Provides 48V Passive PoE or IEEE802.3af PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints.

• PoE Input (GWN7003 Only): Features 1x GbE RJ45 port with IEEE 802.3af/at PoE input, allowing the router to be powered over Ethernet for simplified deployment.

• Flexible PoE Power Budget: Supports multiple power adapter options (24V DC 1A, 1.5A, or 2A) to accommodate different power requirements.

Built-in VPN Support

• Comprehensive VPN Protocols: Supports IPsec (Client-to-Site / Site-to-Site), PPTP VPN Server/Client, L2TP Client-to-Site, OpenVPN Server/Client, and WireGuard.

• Secure Encryption: IPsec Encryption (DES, 3DES, AES), OpenVPN Encryption (AES, DES), and PPTP Encryption (MPPE 40-bit, 128-bit, IPsec).

• Multiple Authentication Methods: Supports MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512, and Pre-shared Key.

• Easy Access for Remote Employees: Built-in VPN support allows easy access to corporate networks for remote employees, ensuring secure connectivity from anywhere.

• Up to 100 Concurrent VPN Tunnels: Supports up to 100 simultaneous VPN connections (GWN7003) for medium-to-large remote workforces.

Multi-WAN with Load Balancing and Failover

• Multiple WAN Ports: All ports support WAN/LAN configurable, providing flexibility in WAN connectivity.

• Load Balancing: Distributes traffic across multiple WAN connections to maximize bandwidth utilization and performance.

• Failover: Automatically switches to a backup WAN connection in case of primary link failure, maximizing connection reliability.

• SD-WAN Support (GWN7003): Advanced WAN management and optimization for multi-site deployments.

Enterprise-Grade Security

• Rich Firewall Features: Includes DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, and ALG for comprehensive network protection.

• Deep Packet Inspection (DPI): Supports application/protocol monitoring and traffic statistics with DPI, providing visibility into network traffic and application usage.

• Content Filtering: Supports application, URL, DNS, and web content filtering to block access from unsecure contents, ensuring safe and productive internet usage.

• Safe Search: Enforces safe search on search engines for enhanced security and content control.

• Advanced Threat Protection: Built-in firewall with advanced content security, filtering, threat detection, and attack prevention.

Advanced QoS

• Comprehensive QoS Features: Supports VLAN, TOS, multiple traffic classes, filtering by port, IP address, DSCP, and policing.

• Application QoS: Prioritizes critical applications for optimal performance.

• VoIP Prioritization: Advanced QoS to ensure real-time performance of low-latency applications, guaranteeing crystal-clear voice communications.

Intelligent AP Management

• Embedded Controller: The embedded controller can manage itself and up to 150 GWN series Wi-Fi APs (GWN7003), eliminating the need for a separate hardware controller.

• GDMS Networking: Offers a free cloud management platform for unlimited routers and GWN APs, providing centralized management from anywhere.

• GWN Manager: On-premise software controller for advanced network management.

• Flexible Management Options: Supports SSH for CLI, Telnet (pending), TR-069, and SNMP v1/v2c/v3 for comprehensive management capabilities.

Technical Specifications

The Ideal Choice for Business Networks

The Grandstream GWN7000 series routers are the perfect networking solution for organizations that require enterprise-grade routing, security, and management capabilities. Their combination of high-performance routing, comprehensive VPN support, advanced security features, multi-WAN connectivity, and embedded AP management makes them ideal for:

• Small-to-Medium Businesses - Build a secure and reliable network core with advanced routing and VPN capabilities.

• Retail Stores - Connect POS systems, IP cameras, and customer Wi-Fi with secure and reliable connectivity.

• Educational Institutions - Deploy in classrooms and administrative offices with content filtering and security.

• Hotels and Hospitality - Provide guest Wi-Fi, VoIP services, and secure management with triple-play support.

• Healthcare Facilities - Ensure secure and reliable connectivity for critical healthcare applications.

• Branch Offices - Connect remote locations with site-to-site VPN and SD-WAN (GWN7003).

• Remote Workforces - Enable secure remote access for employees with comprehensive VPN support.

Why Choose the GWN7000 Series?

• High-Performance Routing: 2.2Gbps NAT throughput for fast and efficient networking.

• Comprehensive VPN Support: Multiple VPN protocols for secure remote access and site-to-site connectivity.

• Enterprise-Grade Security: Advanced firewall, DPI, content filtering, and threat protection.

• Multi-WAN Reliability: Load balancing and failover for maximum connection reliability.

• Flexible PoE Options: Power IP phones, cameras, and access points directly from the router (GWN7002/GWN7003).

• Embedded AP Management: Manage up to 150 GWN APs without additional hardware.

• Free Cloud Management: GDMS Networking offers unlimited router and AP management.

• Scalable Design: Choose the right model for your business needs with room to grow.

With the GWN7000 series, you can build scalable, secure, high-performance, and easy-to-manage business networks that adapt to your growing needs.

Available at Ultratech

The Grandstream GWN7001, GWN7002, and GWN7003 Multi-WAN Gigabit VPN Routers are available now at Ultratech. Our team of networking experts can help you select the right model for your specific requirements, provide deployment guidance, and offer competitive pricing for volume orders.
