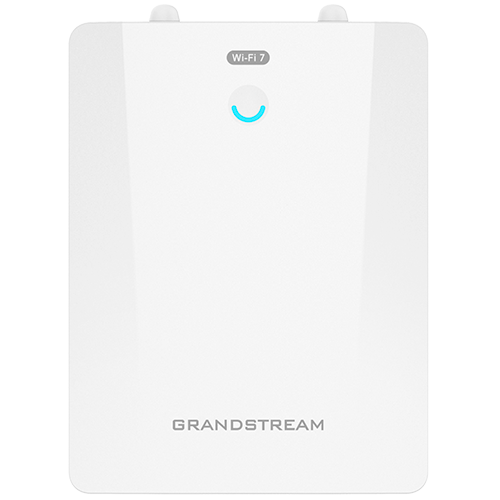

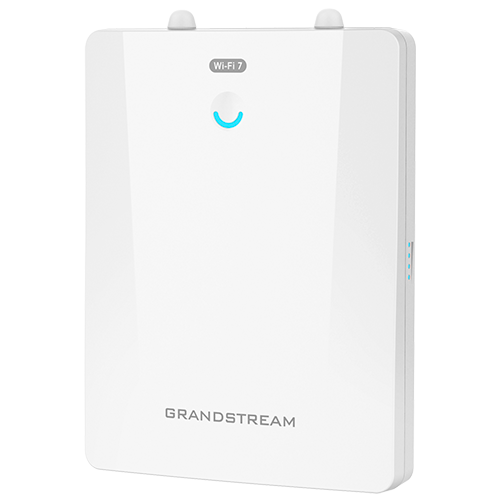

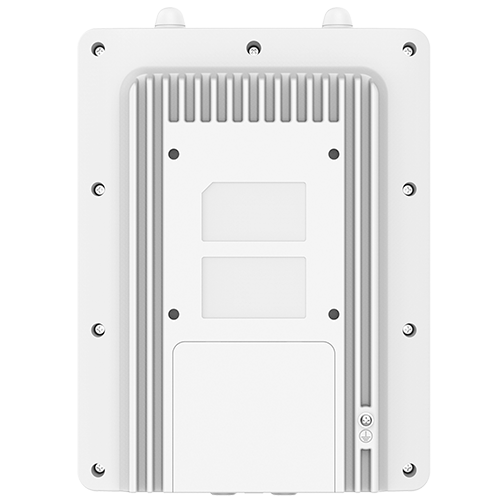

GWN7670LR

Product Description

Next-Generation Wi-Fi 7 Connectivity for Long-Range Deployments

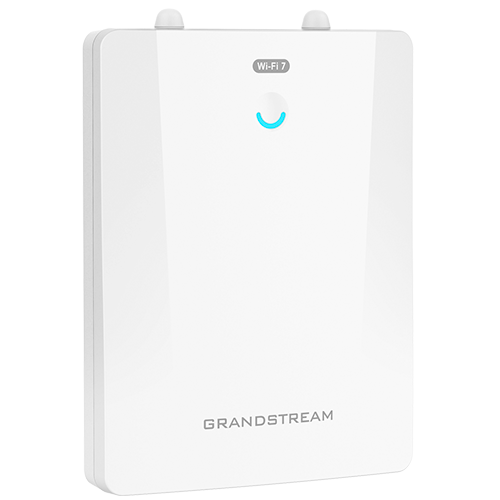

The Grandstream GWN7670LR is a revolutionary long-range Wi-Fi 7 access point designed for medium-to-large businesses that require exceptional coverage, ultra-fast speeds, and robust performance in demanding environments. Leveraging the power of the latest IEEE 802.11be (Wi-Fi 7) standard, this access point delivers unprecedented data transfer rates, lower latency, and enhanced network efficiency.

With its IP66-rated weatherproof casing, the GWN7670LR is built to withstand harsh outdoor conditions while providing seamless connectivity across expansive areas. Whether you're deploying in warehouses, campuses, parks, hospitals, schools, or multiple-floor offices, the GWN7670LR delivers the performance and reliability your business demands.

Blazing-Fast Wi-Fi 7 Performance

The GWN7670LR harnesses the full potential of Wi-Fi 7 technology to deliver exceptional wireless performance:

• 3.6Gbps Aggregate Wireless Throughput: Combined dual-band speeds provide massive bandwidth for bandwidth-intensive applications, 4K/8K streaming, and large file transfers.

• Integrated Wi-Fi 7 Technology: Features dual-band 2x2:2 MIMO with DL/UL OFDMA technology, enabling efficient multi-device communication and reduced latency.

• 4096-QAM Modulation: Wi-Fi 7's advanced 4096-QAM modulation achieves a significant increase in data transfer rates compared to previous Wi-Fi standards, delivering faster and more efficient connectivity.

• Multi-Link Operation (MLO): Optimizes spectrum resource utilization by aggregating multiple frequency bands simultaneously, ensuring a smooth and reliable experience for every user.

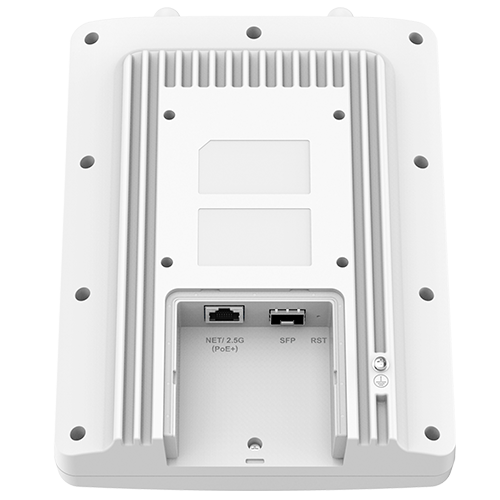

• 2.5 Gigabit Ethernet Port and 2.5 Gigabit SFP Port: High-speed wired connectivity options ensure the wireless network is never bottlenecked, providing full utilization of the 3.6Gbps aggregate throughput.

Exceptional Long-Range Coverage

The GWN7670LR is engineered for expansive coverage, making it ideal for large-scale deployments:

• Up to 350-Meter Coverage Range: Delivers exceptional long-range Wi-Fi coverage, eliminating dead zones and ensuring seamless connectivity across vast areas.

• IP66 Weatherproof Rating: Rugged outdoor casing protects against dust, rain, snow, and harsh weather conditions, ensuring reliable operation in any environment.

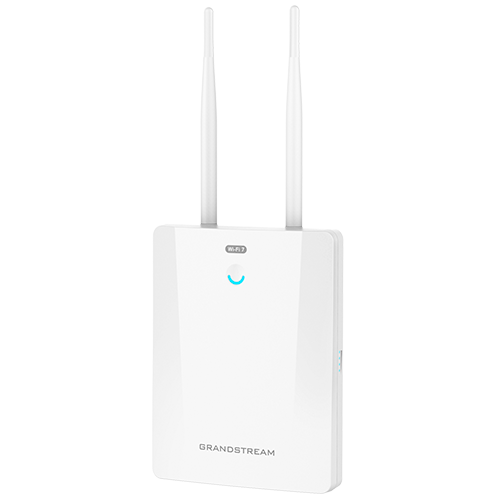

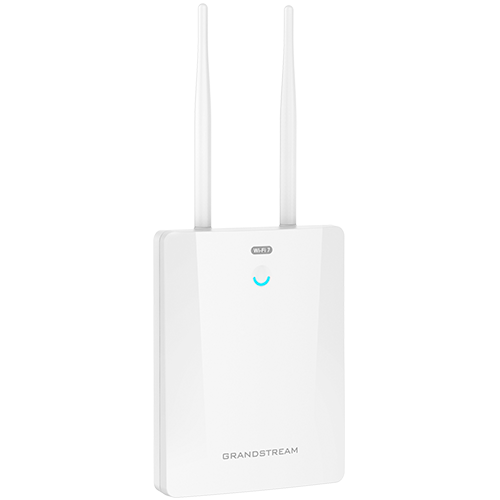

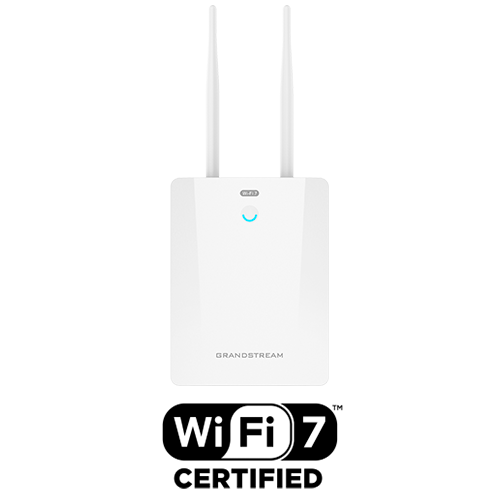

• Dual Antenna Design: Supports flexible switching between internal directional antennas (2.4G: 8dBi, 5G: 13.5dBi) and external omnidirectional antennas (2.4G: 3.5dBi, 5G: 3.5dBi), allowing you to optimize coverage based on deployment requirements.

• Directional Antenna Beamwidth: 2.4G: 90 degrees, 5G: 35 degrees for focused, long-range signal transmission.

• Point-to-Multipoint (Pending): Supports up to 1.5 kilometers of range with PTMP technology, enabling professional long-range wireless bridge deployments.

High-Density Client Support

The GWN7670LR is designed to handle the demands of high-density environments:

• Supports 256 Concurrent Wi-Fi Client Devices: Handle large numbers of simultaneous connections without compromising performance, making it ideal for busy public spaces, enterprise offices, and large venues.

• 32 SSIDs Total (16 per radio): Flexible network segmentation for different user groups, devices, and applications.

• Advanced Band Steering/Client Steering: Automatically guides clients to the frequency band with more abundant spectrum resources for optimal performance.

Intelligent Management and Enterprise-Grade Features

The GWN7670LR provides powerful management capabilities and advanced features for network administrators:

• Flexible Management Options: Includes a controller-less distributed network management design with an embedded controller accessible via the web user interface. The embedded controller can manage up to 50 local GWN series APs. For larger deployments, GDMS Networking offers unlimited AP management, while GWN Manager provides on-premise software AP management for up to 3,000 APs.

• Advanced QoS: Ensures real-time performance for low-latency applications, prioritizing voice, video, and critical business traffic for uninterrupted communication.

• Comprehensive VLAN Support: Supports interface/SSID/MAC binding VLAN, management VLAN, and dynamic VLAN for sophisticated network segmentation.

• Wireless Roaming: Supports 802.11k, 802.11v, and 802.11r for seamless Layer 2 roaming, ensuring uninterrupted connectivity for mobile users.

• Mesh Networking: Supports 2.4G, 2.4G & 5G, and 5G mesh configurations for easy network expansion.

• Captive Portal: Supports RADIUS, social login, vouchers, password, SAML SSO, and active directory authentication for secure guest access.

Robust Security

Security is paramount with the GWN7670LR, featuring enterprise-grade protection:

• Anti-Hacking Secure Boot: Critical data and control lockdown via digital signatures protect against unauthorized access and tampering.

• Unique Security Certificate and Random Default Password: Each device comes with a unique security certificate and random default password for out-of-the-box protection.

• WPA3 Encryption: Supports the latest WPA3-SAE and WPA3-802.1x encryption standards for enhanced wireless security.

• Comprehensive Security Features: Includes MAC filtering, client isolation, OS filtering, rogue AP detection and containment, and ARP/ND attack defense.

• WIDS: Inbound/outbound traffic rules for advanced wireless intrusion detection.

Self-Power Adaptation and Flexible Power Options

• Self-Power Adaptation: Automatically detects PoE+ and adjusts power consumption accordingly, simplifying installation.

• 802.3at PoE+ Input: Power the access point over a single Ethernet cable, eliminating the need for separate power adapters.

• Maximum Power Consumption: Only 15.5W, ensuring energy-efficient operation.

Technical Specifications

The Ideal Choice for Long-Range Wi-Fi 7 Deployments

The Grandstream GWN7670LR is the ultimate Wi-Fi 7 access point for organizations that require exceptional range, ultra-fast speeds, and rugged reliability. Its combination of next-generation Wi-Fi 7 technology, extensive coverage, weatherproof design, and advanced management features makes it perfect for:

• Enterprises and Office Buildings - Provide high-speed connectivity across multiple floors and large office spaces.

• Warehouses and Industrial Facilities - Ensure reliable coverage across expansive indoor and outdoor areas.

• Parks and Campuses - Deliver Wi-Fi connectivity across large outdoor areas.

• Hospitals and Healthcare Facilities - Support critical healthcare applications with low-latency, reliable Wi-Fi.

• Schools and Educational Institutions - Connect classrooms, auditoriums, and outdoor areas with high-capacity Wi-Fi.

• Hotels and Hospitality - Provide premium Wi-Fi experiences for guests across resort properties.

• Public Areas and Smart Cities - Deploy robust outdoor Wi-Fi infrastructure.

Why Choose the GWN7670LR?

• Wi-Fi 7 Technology: Next-generation performance with 4096-QAM and MLO for maximum speed and efficiency.

• Exceptional Range: Up to 350 meters of coverage for large-scale deployments.

• Rugged Outdoor Design: IP66 weatherproof rating for reliable operation in harsh conditions.

• High-Density Support: 256 concurrent clients for busy environments.

• Flexible Antenna Options: Switch between directional and omnidirectional antennas.

• Advanced Security: Enterprise-grade protection with anti-hacking secure boot and WPA3.

• Easy Management: Local, cloud, and on-premise management options.

With the GWN7670LR, you can build scalable, secure, high-performance, and easy-to-manage Wi-Fi networks that leverage the power of Wi-Fi 7 to deliver exceptional connectivity across vast areas.

Available at Ultratech

The Grandstream GWN7670LR Wi-Fi 7 Long-Range Access Point is available now at Ultratech. Our team of networking experts can help you select the right solution for your specific requirements, provide deployment guidance, and offer competitive pricing for volume orders.

Contact Ultratech today to learn more about the GWN7670LR, request a quote, or place your order. Upgrade your outdoor and long-range Wi-Fi infrastructure with Grandstream's cutting-edge Wi-Fi 7 technology.
