GWN7710R

Product Description

Industrial-Grade Outdoor Networking for Demanding Environments

The Grandstream GWN7710R is a 6-Port Outdoor Lite Managed PoE Switch engineered to deliver reliable, high-performance networking in the most challenging outdoor conditions. With its rugged IP66-rated waterproof and dustproof casing, this switch is built to withstand rain, snow, extreme temperatures, and harsh weather, making it the ideal choice for outdoor surveillance, public Wi-Fi deployments, campus networks, and industrial applications.

Whether you need to power security cameras, outdoor access points, or IP intercom systems, the GWN7710R provides the flexibility, power, and intelligence to support your critical infrastructure in any environment.

Versatile Connectivity and Powerful PoE Capabilities

The GWN7710R offers a comprehensive port configuration designed for maximum deployment flexibility:

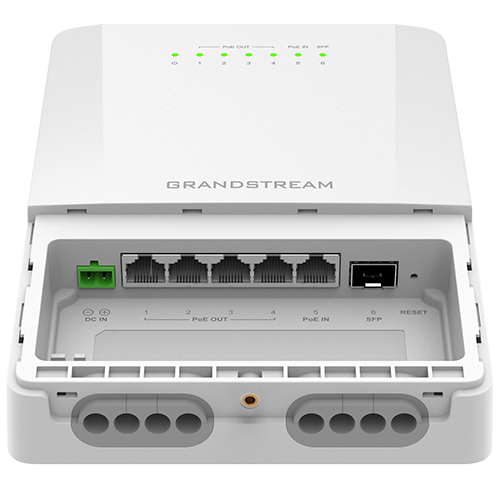

• 5 Gigabit RJ45 Ports: Includes 4 PoE output ports and 1 PoE input port for versatile power and data connections.

• 2.5G SFP Fiber Port: Enables long-distance transmission, perfect for connecting remote locations or extending network reach over fiber optic cables.

• High-Power PoE++ Output: Supports IEEE 802.3at/af and 24V/48V DC passive PoE output. Port 1 delivers up to 60W, while Ports 2-4 provide up to 30W each, supporting even the most power-hungry outdoor devices.

• PoE Watchdog Function: Automatically monitors connected devices and reboots them if they become unresponsive, ensuring continuous operation of critical equipment like surveillance cameras.

Built to Survive Extreme Conditions

The GWN7710R is specifically designed for outdoor deployment, offering exceptional durability and reliability:

• IP66 Dustproof and Waterproof Rating: Fully protected against dust ingress and powerful water jets, ensuring uninterrupted operation in rain, snow, and dusty environments.

• Wide Operating Temperature Range: Functions flawlessly in temperatures from -40°C to 60°C, making it suitable for freezing winters and scorching summers alike.

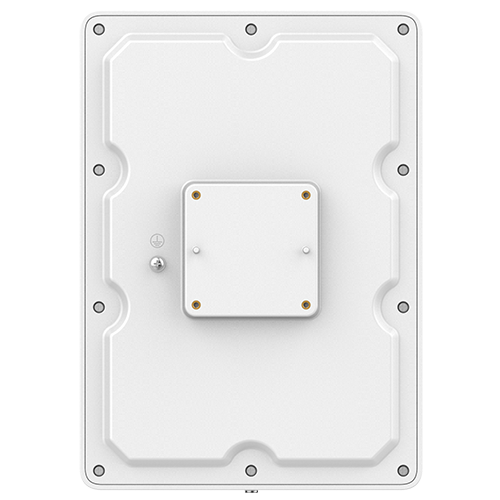

• Flexible Mounting Options: Supports pole, DIN-rail, and wall-mounted installation, providing versatile deployment options for both outdoor and indoor applications.

Intelligent Management and Enterprise-Grade Features

Despite its rugged exterior, the GWN7710R is packed with advanced management and security features to ensure optimal network performance:

• Multiple Management Options: Supports convenient and intelligent local Web configuration, Grandstream's GDMS Networking cloud platform, and GWN Manager on-premise software for flexible network administration.

• STP/RSTP: Spanning Tree Protocol and Rapid Spanning Tree Protocol guarantee fast convergence, ensure network stability, and provide link load balance and redundancy for critical network infrastructure.

• Built-in QoS: Allows for prioritization of network traffic, ensuring critical applications like VoIP and video surveillance receive the bandwidth they need for optimal performance.

• Comprehensive VLAN Support: Supports global and per-port VLANs, as well as 802.1Q VLAN, allowing for flexible traffic segmentation and network isolation.

• Voice VLAN: Dedicated VoiceVLAN support ensures high-quality VoIP connections for clear, uninterrupted communication.

• DHCP Snooping: Enhances network security by allowing only DHCP packets from trusted ports, protecting your enterprise DHCP environment from rogue servers.

• Bandwidth and Storm Control: Manage network traffic effectively with bandwidth control and storm control features to prevent network congestion.

Simplified PoE Management

The GWN7710R includes intelligent PoE features that simplify deployment and maintenance:

• Continuous PoE During Restarts: The switch maintains PoE power supply during soft restarts, ensuring critical devices like cameras do not lose power and data feeds remain uninterrupted.

• Real-Time PoE Monitoring: Dynamic display and control of PoE power allows for timely detection of anomalies and efficient power management.

• Dynamic PoE Configuration: PoE ports support dynamic configuration for non-standard 24VDC and 802.3af/at, ensuring compatibility with various APs and cameras.

• Solar and Cascaded Power Support: Supports PoE++ and DC input, making it suitable for solar-powered installations and switch cascaded power supply configurations.

Deployment Scenarios

Solar + Fiber Optic Deployment
The GWN7710R is ideal for remote outdoor locations where traditional power is unavailable. Connect the switch to a solar or battery power source (12-57V DC), use the SFP port for long-distance fiber backhaul, and power cameras, intercom systems, and LED lighting directly from the PoE ports.

PoE++ RJ45 Power and Data Deployment
In locations where power and data are available over a single cable, connect a PoE++ source to Port 5 (PoE input), and use the remaining ports to power and connect a variety of outdoor devices including high-power cameras and Wi-Fi access points.

Technical Specifications

The Ideal Choice for Outdoor Network Infrastructure

The Grandstream GWN7710R is the ultimate outdoor networking solution for businesses and organizations that require reliable, high-performance connectivity in challenging environments. Its combination of industrial-grade durability, versatile PoE capabilities, intelligent management features, and flexible deployment options makes it perfect for:

• Outdoor Surveillance Systems - Power and connect IP cameras in parking lots, perimeters, and public spaces.

• Public Wi-Fi Deployments - Provide connectivity for outdoor access points in parks, campuses, and city centers.

• Hospitality and Retail - Extend network coverage to outdoor dining areas, hotel gardens, and shopping plazas.

• Industrial and Transportation - Deploy in factories, warehouses, transportation hubs, and remote monitoring stations.

• Smart City Infrastructure - Support IoT devices, smart lighting, and environmental sensors.

With the GWN7710R, you can build scalable, secure, high-performance, and easy-to-manage business networks that thrive in any environment.
