GWN7605CLR

Product Description

Rugged Outdoor Wi-Fi for Demanding Environments

The Grandstream GWN7605CLR is a powerful outdoor long-range Wi-Fi access point designed to deliver reliable, high-performance wireless connectivity in the most challenging outdoor environments. With its IP66-rated weatherproof casing, this access point is built to withstand rain, snow, dust, and extreme temperatures, making it the ideal solution for outdoor surveillance, public Wi-Fi deployments, campus networks, and industrial applications.

Whether you need to provide Wi-Fi coverage in parking lots, parks, stadiums, warehouses, or outdoor dining areas, the GWN7605CLR delivers the performance, durability, and intelligent management features required for enterprise-grade outdoor networking.

Exceptional Performance and Coverage

The GWN7605CLR combines advanced Wi-Fi technology with robust hardware to deliver outstanding wireless performance:

• 1.27Gbps Aggregate Wireless Throughput: Dual-band speeds provide ample bandwidth for bandwidth-intensive applications, video streaming, and high-density client environments.

• Dual-Band 2x2:2 MU-MIMO with Beamforming: Delivers efficient multi-device communication, improved signal strength, and enhanced network performance.

• Up to 150-Meter Coverage Range: Provides extensive outdoor coverage, eliminating dead zones and ensuring seamless connectivity across large areas.

• Supports 100+ Concurrent Wi-Fi Client Devices: Handles high-density environments with ease, making it perfect for public spaces and busy outdoor locations.

• 2x Gigabit Wireline Ports: High-speed wired connectivity options ensure the wireless network is never bottlenecked.

Designed for Outdoor Durability

The GWN7605CLR is engineered to thrive in harsh outdoor conditions:

• IP66 Weatherproof Rating: Fully protected against dust ingress and powerful water jets, ensuring reliable operation in rain, snow, and dusty environments.

• Wide Operating Temperature Range: Functions flawlessly in temperatures from -30°C to 60°C, making it suitable for freezing winters and scorching summers.

• 2 Internal Dual-Band Antennas: 2.4GHz gain of 4.0dBi and 5GHz gain of 4.0dBi for optimized signal coverage.

• Flexible Antenna Options: Supports 2 internal antennas for different application scenarios, providing deployment flexibility.

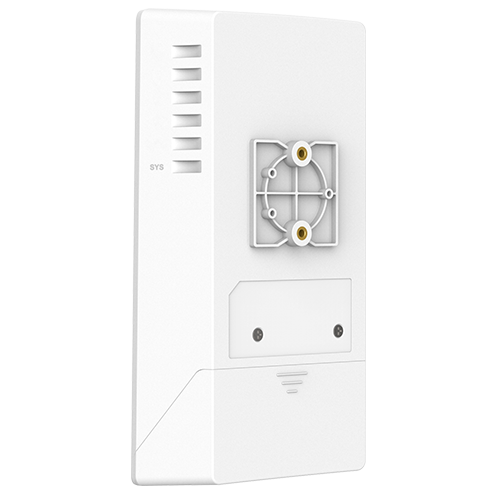

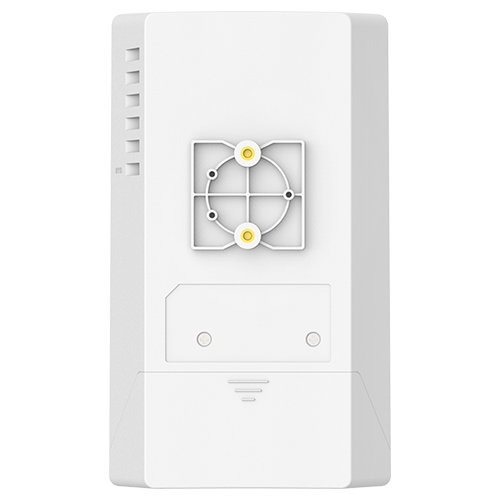

• Outdoor Metal Bar Mount or Wall Mount: Mounting kits included for versatile installation options.

Flexible Power Options

The GWN7605CLR offers multiple power options for simplified deployment:

• Self-Power Adaptation: Automatically detects PoE or PoE+ and adjusts power consumption accordingly, simplifying installation.

• 802.3af/at PoE Input: Power the access point over a single Ethernet cable, eliminating the need for separate power adapters.

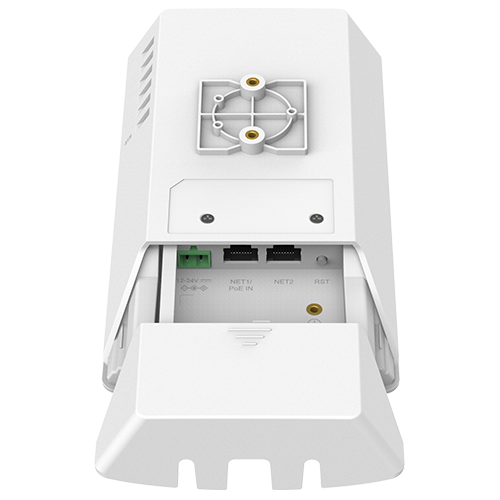

• Phoenix Connector (12V-24V): Connect DC power supply through the Phoenix Connector for installations where PoE is not available.

• Maximum Power Consumption: Only 10W, ensuring energy-efficient operation.

Intelligent Management and Enterprise-Grade Features

The GWN7605CLR provides powerful management capabilities and advanced features for network administrators:

• Flexible Management Options: Includes a controller-less distributed network management design with an embedded controller accessible via the web user interface. The embedded controller can manage up to 50 local GWN series APs. For larger deployments, GDMS Networking offers unlimited AP management, while GWN Manager provides on-premise software AP management for up to 3,000 APs.

• Advanced QoS: Ensures real-time performance for low-latency applications, prioritizing voice, video, and critical business traffic for uninterrupted communication.

• Comprehensive VLAN Support: Supports interface/SSID/MAC binding VLAN, management VLAN, and dynamic VLAN for sophisticated network segmentation.

• Wireless Roaming: Supports 802.11k, 802.11v, and 802.11r for seamless Layer 2 roaming, ensuring uninterrupted connectivity for mobile users.

• Mesh Networking: Supports 2.4GHz, 5GHz, and 2.4GHz & 5GHz mesh configurations for easy network expansion.

• Captive Portal: Supports RADIUS, social login, vouchers, password, SAML SSO, and active directory authentication for secure guest access.

• Port Aggregation: Multiple uplink ports for port aggregation to increase uplink bandwidth.

Robust Security

Security is paramount with the GWN7605CLR, featuring enterprise-grade protection:

• Anti-Hacking Secure Boot: Critical data and control lockdown via digital signatures protect against unauthorized access and tampering.

• Unique Security Certificate and Random Default Password: Each device comes with a unique security certificate and random default password for out-of-the-box protection.

• WPA2/WPA3 Encryption: Supports the latest WPA3-SAE and WPA3-802.1x encryption standards for enhanced wireless security.

• Comprehensive Security Features: Includes MAC filtering, client isolation, OS filtering, rogue AP detection and containment, and ARP/ND attack defense.

• WIDS: Inbound/outbound traffic rules for advanced wireless intrusion detection.

Technical Specifications

The Ideal Choice for Outdoor Wi-Fi Deployments

The Grandstream GWN7605CLR is the perfect outdoor Wi-Fi solution for organizations that require reliable coverage, robust performance, and enterprise-grade security. Its combination of high-speed wireless connectivity, durable weatherproof design, advanced management features, and flexible power options makes it ideal for:

• Outdoor Surveillance Systems - Provide wireless connectivity for IP cameras in parking lots, perimeters, and public spaces.

• Public Wi-Fi Deployments - Deliver Wi-Fi connectivity in parks, campuses, stadiums, and city centers.

• Hospitality and Retail - Extend network coverage to outdoor dining areas, hotel gardens, and shopping plazas.

• Industrial and Warehousing - Deploy in factories, warehouses, and logistics centers with outdoor storage areas.

• Educational Institutions - Provide outdoor connectivity for campuses and sports facilities.

• Smart City Infrastructure - Support IoT devices, smart lighting, and environmental sensors.

Why Choose the GWN7605CLR?

• Rugged Outdoor Design: IP66 weatherproof rating for reliable operation in harsh conditions.

• High-Performance Wi-Fi: 1.27Gbps throughput and dual-band MU-MIMO for superior connectivity.

• Extensive Coverage: Up to 150 meters of coverage for large outdoor areas.

• Flexible Power Options: PoE, PoE+, and Phoenix Connector for versatile deployment.

• Advanced Security: Enterprise-grade protection with anti-hacking secure boot and WPA3.

• Easy Management: Local, cloud, and on-premise management options for any deployment scenario.

• Cost-Effective: High-performance features at an affordable price point.

With the GWN7605CLR, you can build scalable, secure, high-performance, and easy-to-manage outdoor Wi-Fi networks that thrive in any environment.

Available at Ultratech

The Grandstream GWN7605CLR Outdoor Long-Range Wi-Fi Access Point is available now at Ultratech. Our team of networking experts can help you select the right solution for your specific requirements, provide deployment guidance, and offer competitive pricing for volume orders.

Contact Ultratech today to learn more about the GWN7605CLR, request a quote, or place your order. Upgrade your outdoor Wi-Fi infrastructure with Grandstream's reliable and feature-rich wireless solutions.
