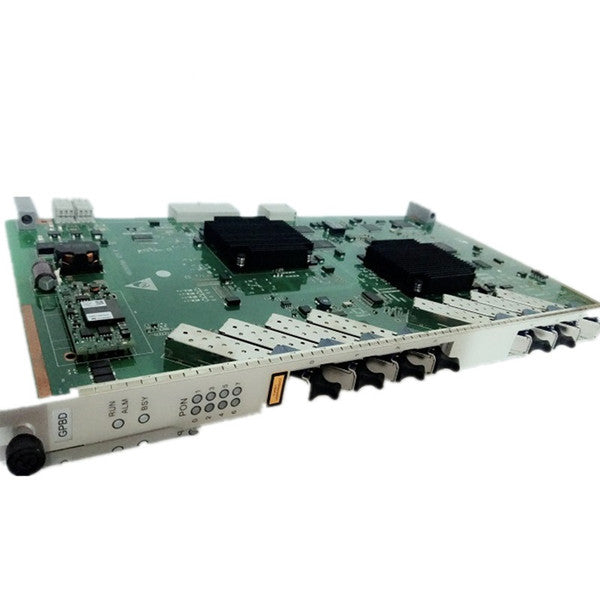

Huawei GPBD Service Board

Name: Huawei GPBD Service Board
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specifications

Details

Specifications	H805GPBD H806GPBD H807GPBD	H807GPBH
No. Of interface	8	8
Splitting ratio (Class B+)	0.086111111	0.086111111
Splitting ratio (Class C+ / Class C++)	0.130555556	0.130555556
D-CMTS	×	×
Traffic shaping	√	√
Optical channel performance testing	√	√
RSS detection, optical module light control	√	√
Speed limit based on ONU granularity	√	√
CAR group	√	√
Temperature inquiry and high-temperature alarm	√	√
High-temperature automatic shutdown	√	√
The maximum optical path distance is poor (km)	20	40
The maximum number of traffic that each board supports (pc)	8184	8184
The number of MAC addresses supported by each board	32768	32768
DBA-based broadband based on single port (kbps)	1238784	1238784
The number of T-CONTs supported by each GPON port	1024	1024
Down FEC function	√	√
Up FEC function	√	√
Rogue ONT detection	√	√
The maximum number of ONTs per GPON port	128	128
The number of GEM ports supported by each board	8192	8192
The number of GEM ports supported by each GPON interface	3872	3872
The maximum number of business streams per GEM Port	8184	8184
HQoS (4 layers)	×	√
9K Jumbo frame	H805GPBD:× H806GPBD :× H807GPBD: √	√
The GPON port supports the optical power budget	CLASS B+: 28.5dB, Most Used
	CLASS C+: 32dB, Long distance transmission
	CLASS C+: 35dB
The minimum bandwidth of each T-CONT	Minimum Broadband Delay Mode: 1Mbps
The minimum bandwidth of each T-CONT	Maximum broadband usage pattern: 128kbps
