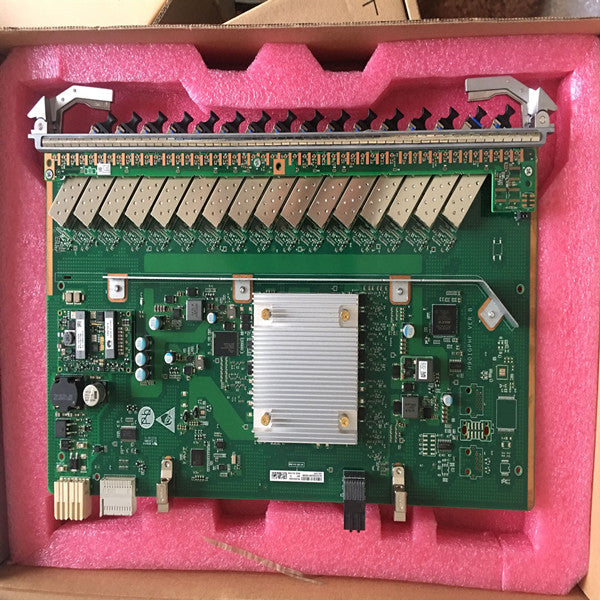

Huawei GPHF Service Board

Name: Huawei GPHF Service Board
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specifications

Details:

Brand	Huawei
Model	GPHF
GPON Port	16-GPON Port
Type	C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power	C+ Module : 3.00 dBm
Maximum Output Optical Power	C+ Module : 7.00 dBm
Maximum Receiver Sensitivity	C+ Module : -32.00 dBm
Optical Connector Type	SC/PC
Optical Fiber Type	Single-mode
Reach	20.00 km
Overload Optical Power	C+ Module : -12.0 dBm
Extinction Ratio	8.2 dB
Dimensions (W x D x H)	23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption	Static: 25W; Maximum:50W
Maximum Frame Size	2004 bytes
	9216 bytes (jumbo frame enabled)
Operating temperature	-40°C to +65°C
