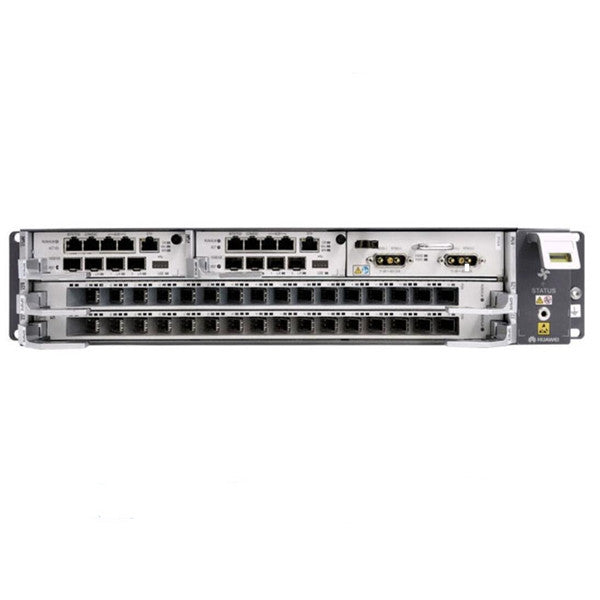

Huawei SmartAX MA5800 X2 OLT

Name: Huawei SmartAX MA5800 X2 OLT
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specifications

Details:

Item	Specs
Without hanging size (width x depth x height)	442 0mmx268.7mmx88.1mm
With IEC specifications hanging size (width * depth * height)	482 6mmx268.7mmx88.1mm
With ETSI specifications (width * depth * height)	535.0mmx268.7mmx88. 1mm
Full weight (with IEC mounting ears)	9.4kg
Power supply	DC (dual power backup) turbulence + battery backup
Rated voltage	AC power supply: 110V/220V
Rated voltage	DC power supply: -48V/-60V
Operating voltage range	DC power supply: -38.4V ~-72V
Operating voltage range	AC power supply: 100V ~ 240V
Maximum input current per channel	DC power supply: 20A
Maximum input current per channel	AC power supply: 8A
