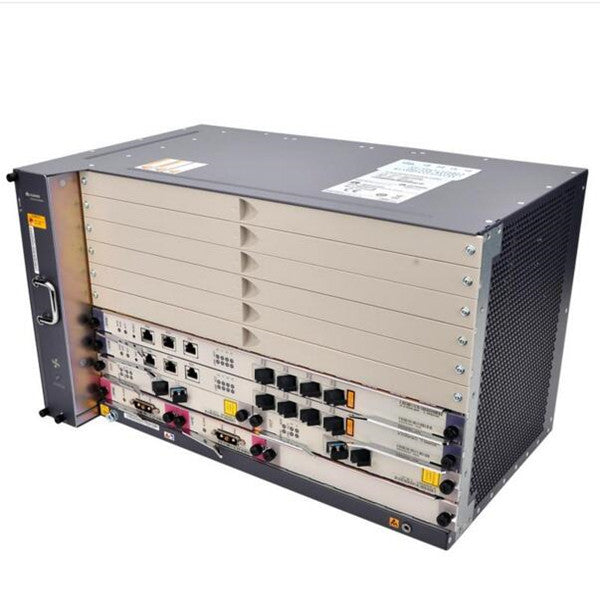

Huawei SmartAX MA5683T OLT

Name: Huawei SmartAX MA5683T OLT
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specifications

Index	MA5680T(ETSI)	MA5680T(IEC)	MA5683T
Compatible cabinet	Indoor cabinet：N63E-22、N66E-18	Indoor cabinet：N66E-22	Indoor cabinet：N66E-18
Compatible cabinet	outdoor cabinet：F01T500	outdoor cabinet	outdoor cabinet：F01S300、F01T500、F01T300
Service Card	Main control board: 2 slots	Main control board: 2 slots	Main control board: 2 slots
	Service board: 16 slots	Service board: 16 slots	Service board: 6 slots
	Universal interface board: 1 slot	Universal interface board: 1 slot	Universal interface board: 1 slot
	Uplink interface board: 2 slots	Uplink interface board: 2 slots	Uplink interface board: 2 slots
	Power interface board: 2 slots	Power interface board: 2 slots	Power interface board: 2 slots
Supportable main control board and switching capacity	SCUN/SCUK：480Gbit/s（Active/standby mode）、960Gbit/s（Load sharing mode)
Supportable main control board and switching capacity	SCUH/SCUV：960Gbit/s（Active/standby mode）、1920Gbit/s（Load sharing mode)
System Layer 2 packet forwarding rate	SCUN/SCUK：726Mpps（Active/standby mode）、1452Mpps（Load sharing mode）
System Layer 2 packet forwarding rate	SCUH/SCUV：1428Mpps（Active/standby mode）、2856Mpps（Load sharing mode)
Exchange forwarding delay	Has a lower forwarding delay. The 100Mbit/s Ethernet port sends 64Byte Ethernet packets with a delay of no more than 20μs.
Full load error rate	When the port is transmitting at full load, the bit error rate (bit error rate) is <10 e-7.
