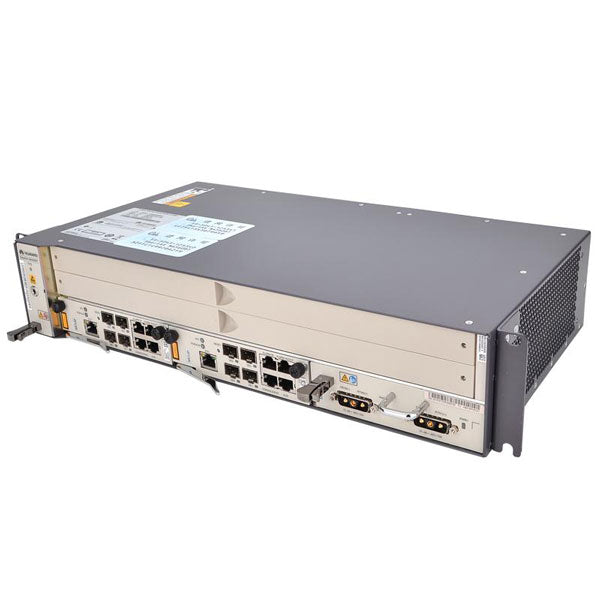

Huawei SmartAX MA5608T OLT

Name: Huawei SmartAX MA5608T OLT
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specifications

Details:

Model No.	MA5680T	MA5683T	MA5608T
Dimension:	490275.8447.2mm	442283.2263mm	442233.588mm
Operating Environment	Temperature: -25℃~+55℃ Humidity:5%~95% (non-condensing)	Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing)	Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing)
Power Supply Parameters	-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V	-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V	-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V Support 220V / 110V AC input
Backplane Exchange capacity	3.2Tbit/s	1.5Tbit/s	720Gbit/s
Control Board Exchange Capacity	1920 Gbit/s	960Gbit/s	512Gbit/s
Access Capacity	12810G EPON 6410G GPON 128EPON 256GPON 768*GE	4810G EPON 2410G GPON 48EPON 96GPON 288*GE	1610G EPON 810G GPON 16EPON 32GPON 96*GE
Access Type	Upstream interface: 10GE optical, GE optical/electricity Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface
