Ultratech

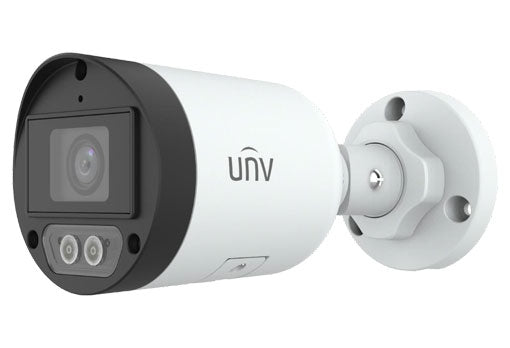

IPC2122LB-F28(40)K-WL

Name: IPC2122LB-F28(40)K-WL
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

Camera	Description
Resolution	2MP
Sensor	1/2.9"CMOS
Min. Illumination	IPC2122LB‑AF28K‑WL:Colour: 0.005 lux ( F1.6, AGC ON) IPC2122LB‑AF40K‑WL:Colour: 0.005 lux ( F1.6, AGC ON）
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N	>52dB
WDR	DWDR
Lens	Description
Lens type	IPC2122LB‑AF28K‑WL:2.8mm IPC2122LB‑AF40K‑WL:4.0mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	IPC2122LB‑AF28K‑WL:101.1° IPC2122LB‑AF40K‑WL:83.7°
Field of View (V)	IPC2122LB‑AF28K‑WL:55.0° IPC2122LB‑AF40K‑WL:44.6°
Field of View (D)	IPC2122LB‑AF28K‑WL:111.0° IPC2122LB‑AF40K‑WL:89.1°
DORI	Description
DORI Distance（Lens）	IPC2122LB‑AF28K‑WL:2.8mm IPC2122LB‑AF40K‑WL:4.0mm
DORI Distance（Detect）	IPC2122LB‑AF28K‑WL:45.0m(147.6ft) IPC2122LB‑AF40K‑WL:64.3m(210.9ft)
DORI Distance（Observe）	IPC2122LB‑AF28K‑WL:18.0m(59.1ft) IPC2122LB‑AF40K‑WL:25.7m(84.4ft)
DORI Distance（Recognize）	IPC2122LB‑AF28K‑WL:9.0m(29.5ft) IPC2122LB‑AF40K‑WL:12.9m(42.2ft)
DORI Distance（Identify）	IPC2122LB‑AF28K‑WL:4.5m(14.8ft) IPC2122LB‑AF40K‑WL:6.4m(21.1ft)
Illuminator	Description
Illumination Distance(Warm Light)	30m
Light On/Off Control	Auto/Manual
Video	Description
Video Compression	Ultra 265; H.265; H.264
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 2MP (19201080),Max 30fps; 720P (1280720),Max 30fps Sub Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps
Video Bit Rate	128 Kbps~6144 Kbps
U-code	Support (Main stream)
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video stream	Dual streams
Image	Description
White Balance	Auto;Outdoor;Fine Tune;Sodium Lamp;Locked;Auto2
Digital noise reduction	2D/3D DNR
Smart Illumination	Support
Flip	Normal;Flip Vertical;Flip Horizontal;180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Events	Description
Basic Detection	Motion detection;
General Function	Watermark;IP Address Filtering;Access Policy;ARP Protection;RTSP Authentication;User Authentication;HTTP authentication
Storage	Description
Edge Storage	Micro SD, up to 128 GB
Network	Description
Protocols	IPv4;IGMP;ICMP;ARP;TCP;UDP;DHCP;RTP;RTSP;RTCP;RTMP;DNS;DDNS;NTP;UPnP;HTTP;HTTPS;QoS;SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile T, Profile G),API,SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password protection;Strong password;HTTPS encryption;Export operation logs;Basic and digest authentication for RTSP;Digest authentication for HTTP;WSSE and digest authentication for ONVIF
Client	EZStation;EZView; EZLive
Web Browser	Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;Plug‑in free live view: Chorme 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface	Description
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 * RJ45 10M/100M Base‑TX Ethernet
Video Output	N/A
Certification	Description
EMC	CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368‑1) CB (IEC 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
Environment	CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection	IP67 (IEC 60529)
General	Description
Power	DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 7.8W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions	162 × 67 × 67mm (6.4” × 2.6” × 2.6”)
Weight	0.24kg(0.53lb)
Material	Metal + Plastic
Working Environment	‑30°C ~ 60°C (‑22°F ~ 140°F), Humidity: ≤95% RH (non‑condensing)
Storage Environment	‑30°C ~ 60°C (‑22°F ~ 140°F), Humidity: ≤95% RH (non‑condensing)
Surge protection	4KV
Reset button	N/A
Web Client Language	1 Language English
