Ultratech

IPC2125SB-DF28(40)KMC-I0

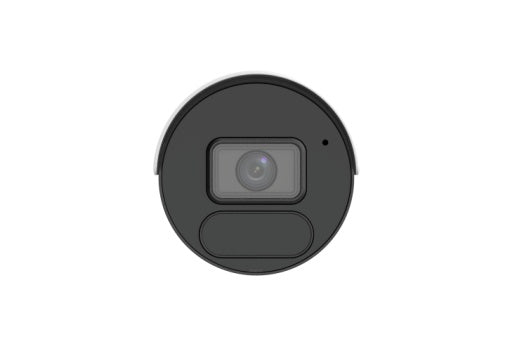

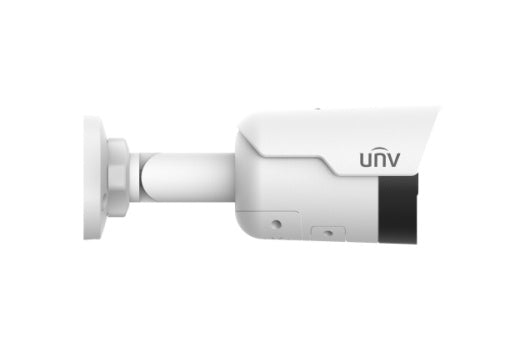

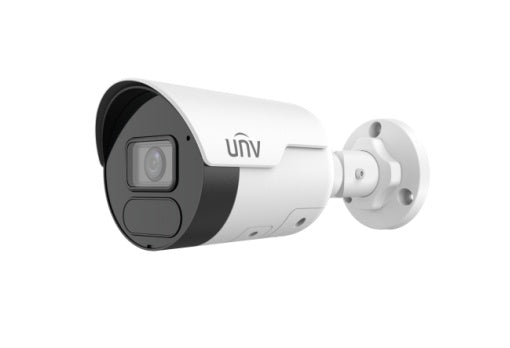

Name: IPC2125SB-DF28(40)KMC-I0
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

Camera	Description
Resolution	5MP
Sensor	1/2.7''CMOS
Min. Illumination	Colour: 0.002 lux ( F1.6, AGC ON) 0 Lux with light
Day/Night	IR‑cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N	>52dB
WDR	120dB
Lens	Description
Lens type	IPC2125SB‑ADF28KMC‑I0:2.8mm IPC2125SB‑ADF40KMC‑I0:4.0mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	IPC2125SB‑ADF28KMC‑I0:112.9° IPC2125SB‑ADF40KMC‑I0:91.2°
Field of View (V)	IPC2125SB‑ADF28KMC‑I0:59.1° IPC2125SB‑ADF40KMC‑I0:47.9°
Field of View (D)	IPC2125SB‑ADF28KMC‑I0:121.2° IPC2125SB‑ADF40KMC‑I0:95.9°
Zoom	Fixed
DORI	Description
DORI Distance（Lens）	IPC2125SB‑ADF28KMC‑I0:2.8mm IPC2125SB‑ADF40KMC‑I0:4.0mm
DORI Distance（Detect）	IPC2125SB‑ADF28KMC‑I0:63.0m(206.7ft) IPC2125SB‑ADF40KMC‑I0:90.0m(295.2ft)
DORI Distance（Observe）	IPC2125SB‑ADF28KMC‑I0:25.2m(82.7ft) IPC2125SB‑ADF40KMC‑I0:36.0m(118.1ft)
DORI Distance（Recognize）	IPC2125SB‑ADF28KMC‑I0:12.6m(41.3ft) IPC2125SB‑ADF40KMC‑I0:18.0m(59.1ft)
DORI Distance（Identify）	IPC2125SB‑ADF28KMC‑I0:6.3m(20.7ft) IPC2125SB‑ADF40KMC‑I0:9.0m(29.5ft)
Illuminator	Description
Illumination Distance(IR)	Up to 30m (98ft)
Illumination Distance(Warm Light)	30m
Wavelength	850nm
Light On/Off Control	Auto/Manual
Video	Description
Video Compression	Ultra 265; H.265; H.264; MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream:5MP (28801620), Max 30fps; 4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video stream	Triple streams
Image	Description
White Balance	Auto;Outdoor;Fine Tune;Sodium Lamp;Locked;Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal;Flip Vertical;Flip Horizontal;180°;90°Clockwise;90°Anti‑clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Intelligent	Description
Smart intrusion prevention	Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection
Recognition
Statistical Analysis	People counting;support people flow counting and crowd density monitoring
Events	Description
Basic Detection	Motion detection;Ultra motion detection;Tampering alarm;
General Function	Watermark;IP Address Filtering;Access Policy;ARP Protection;RTSP Authentication;User Authentication;HTTP Authentication
Storage	Description
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR;NAS(NFS)
Network	Description
Protocols	IPv4;IPv6;IGMP;ICMP;ARP;TCP;UDP;DHCP;RTP;RTSP;RTCP;RTMP;DNS;DDNS;NTP;FTP;UPnP;HTTP;HTTPS;SMTP;SSL/TLS;802.1x;SNMP;PPPoE
Compatible Integration	ONVIF (Profile S, Profile G, Profile T);API;SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password protection;Strong password;HTTPS encryption;Export operation logs;Basic and digest authentication for RTSP;Digest authentication for HTTP;TLS 1.2;WSSE and digest authentication for ONVIF
Client	EZStation;EZView; EZLive
Web Browser	Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface	Description
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Speaker	Support
WIFI	N/A
Network	1 * RJ45 10M/100M Base‑TX Ethernet
Video Output	N/A
Certification	Description
EMC	CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368‑1) CB (IEC 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
Environment	CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
General	Description
Power	DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 11.5W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions	191×75×74mm (7.5”×2.9”×2.9”)
Weight	0.50kg (1.10lb)
Material	Metal
Working Environment	‑30°C ~ 60°C (‑22°F ~ 140°F), Humidity: ≤95% RH (non‑condensing)
Storage Environment	‑30°C ~ 60°C (‑22°F ~ 140°F), Humidity: ≤95% RH (non‑condensing)
Surge protection	4KV
Reset button	Support
Web Client Language	20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
