Ultratech

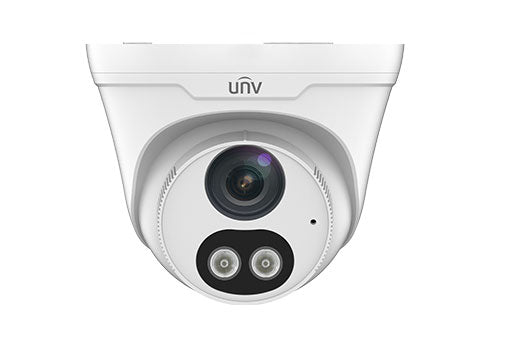

IPC3614LE-DF28(40)KC-WL

Name: IPC3614LE-DF28(40)KC-WL
Brand: Ultratech
Availability: InStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

Camera	Description
Resolution	4MP
Sensor	1/3.0"CMOS
Min. Illumination	Colour: 0.003 lux ( F1.6, AGC ON) 0 Lux with light
Day/Night	IR‑cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N	>52dB
WDR	120dB
Lens	Description
Lens type	IPC3614LE‑ADF28KC‑WL:2.8mm IPC3614LE‑ADF40KC‑WL:4.0mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	IPC3614LE‑ADF28KC‑WL:112.9° IPC3614LE‑ADF40KC‑WL:91.2°
Field of View (V)	IPC3614LE‑ADF28KC‑WL:59.1° IPC3614LE‑ADF40KC‑WL:47.9°
Field of View (D)	IPC3614LE‑ADF28KC‑WL:121.2° IPC3614LE‑ADF40KC‑WL:95.9°
DORI	Description
DORI Distance（Lens）	IPC3614LE‑ADF28KC‑WL:2.8mm IPC3614LE‑ADF40KC‑WL:4.0mm
DORI Distance（Detect）	IPC3614LE‑ADF28KC‑WL:63.0m(206.7ft) IPC3614LE‑ADF40KC‑WL:90.0m(295.2ft)
DORI Distance（Observe）	IPC3614LE‑ADF28KC‑WL:25.2m(82.7ft) IPC3614LE‑ADF40KC‑WL:36.0m(118.1ft)
DORI Distance（Recognize）	IPC3614LE‑ADF28KC‑WL:12.6m(41.3ft) IPC3614LE‑ADF40KC‑WL:18.0m(59.1ft)
DORI Distance（Identify）	IPC3614LE‑ADF28KC‑WL:6.3m(20.7ft) IPC3614LE‑ADF40KC‑WL:9.0m(29.5ft)
Illuminator	Description
Illumination Distance(IR)	30m
Illumination Distance(Warm Light)	30m
Wavelength	850nm
Light On/Off Control	Auto/Manual
Video	Description
Video Compression	Ultra 265; H.265; H.264; MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4MP (26881520), Max 25fps;4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video stream	Dual streams
Image	Description
White Balance	Auto;Outdoor;Fine Tune;Sodium Lamp;Locked;Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal;Flip Vertical;Flip Horizontal;180°;90°Clockwise;90°Anti‑clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Events	Description
Basic Detection	Cross line;intrusion(based on human body detection);Motion detection;Ultra motion detection;Tampering alarm;
General Function	Watermark;IP Address Filtering;Access Policy;ARP Protection;RTSP Authentication;User Authentication;HTTP Authentication
Storage	Description
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR;NAS(NFS)
Network	Description
Protocols	IPv4;IPv6;IGMP;ICMP;ARP;TCP;UDP;DHCP;RTP;RTSP;RTCP;RTMP;DNS;DDNS;NTP;FTP;UPnP;HTTP;HTTPS;SMTP;SSL/TLS;802.1x;SNMP;PPPoE
Compatible Integration	ONVIF (Profile S, Profile G, Profile T);API;SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password protection;Strong password;HTTPS encryption;Export operation logs;Basic and digest authentication for RTSP;Digest authentication for HTTP;TLS 1.2;WSSE and digest authentication for ONVIF
Client	EZStation;EZView; EZLive
Web Browser	Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface	Description
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Speaker	Support
WIFI	N/A
Network	1 * RJ45 10M/100M Base‑TX Ethernet
Video Output	N/A
Certification	Description
EMC	CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368‑1) CB (IEC 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
Environment	CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection	IP67 (IEC 60529)
General	Description
Power	DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.0W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions	Φ118 x 96mm (Φ4.6” x 3.8”)
Weight	0.30kg (0.66lb)
Material	Metal + Plastic
Working Environment	‑30°C ~ 60°C (‑22°F ~ 140°F), Humidity: ≤95% RH (non‑condensing)
Storage Environment	‑30°C ~ 60°C (‑22°F ~ 140°F), Humidity: ≤95% RH (non‑condensing)
Surge protection	4KV
Reset button	N/A
Web Client Language	13 Languages English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
