L11UG-5HaxD: Build custom outdoor 5 GHz CPE or AP with Wi-Fi 6, dual-core ARM CPU, PoE-in, Gigabit Ethernet, and RouterOS v7 for high-speed wireless connectivity and advanced network management.

MikroTik

L11UG-5HaxD

Name: L11UG-5HaxD
Brand: MikroTik
Availability: InStock
Rating: 5.0 (10 reviews)

Build your own custom outdoor 5 GHz CPE or AP with Wi-Fi 6, dual-core ARM CPU, PoE-in, Gigabit Ethernet and RouterOS v7! MMCX connectors allow creating versatile omnidirectional access points and powerful point-to-point links

Contact Now

DataSheet PDF

Description
Reviews

Description

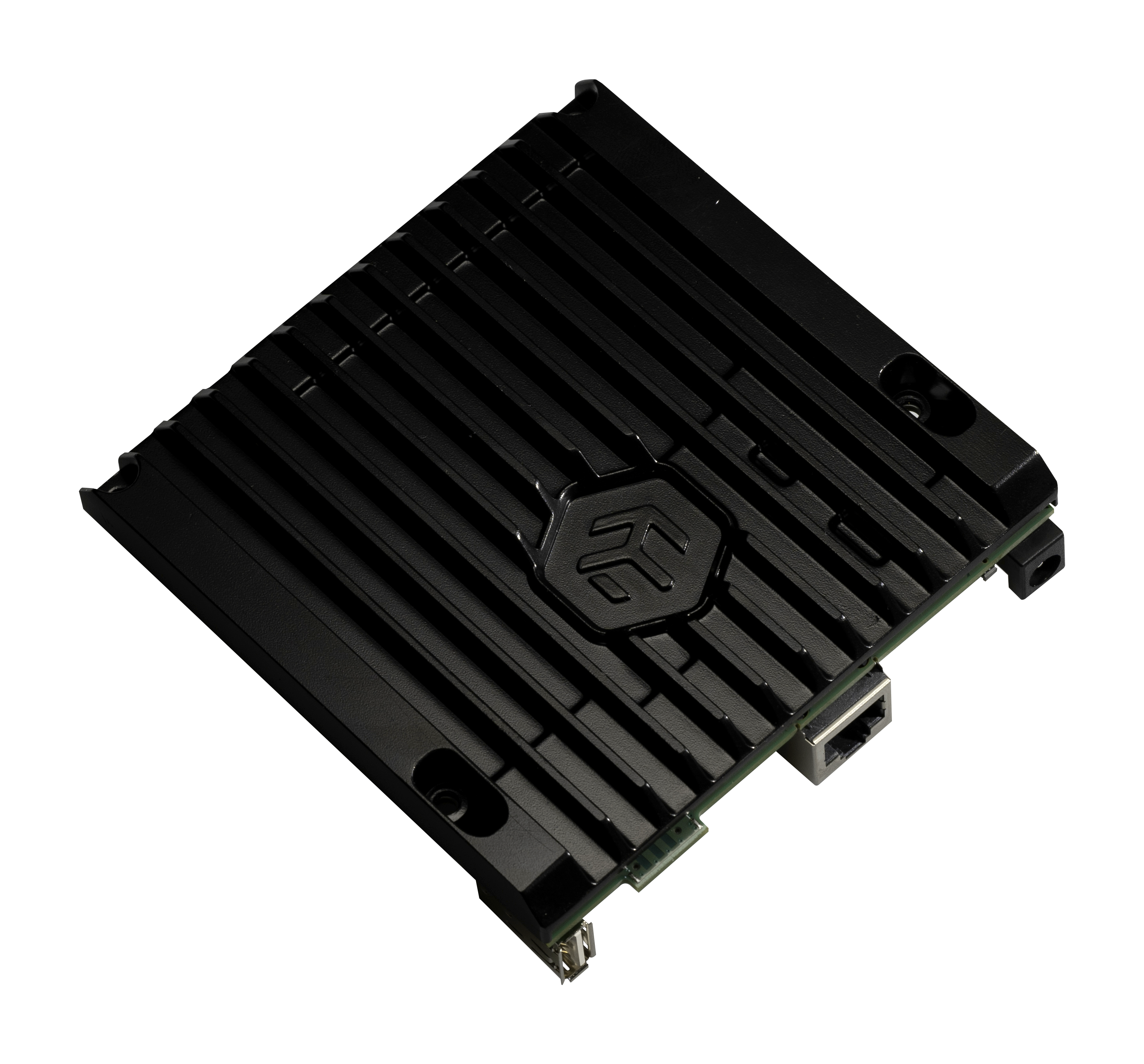

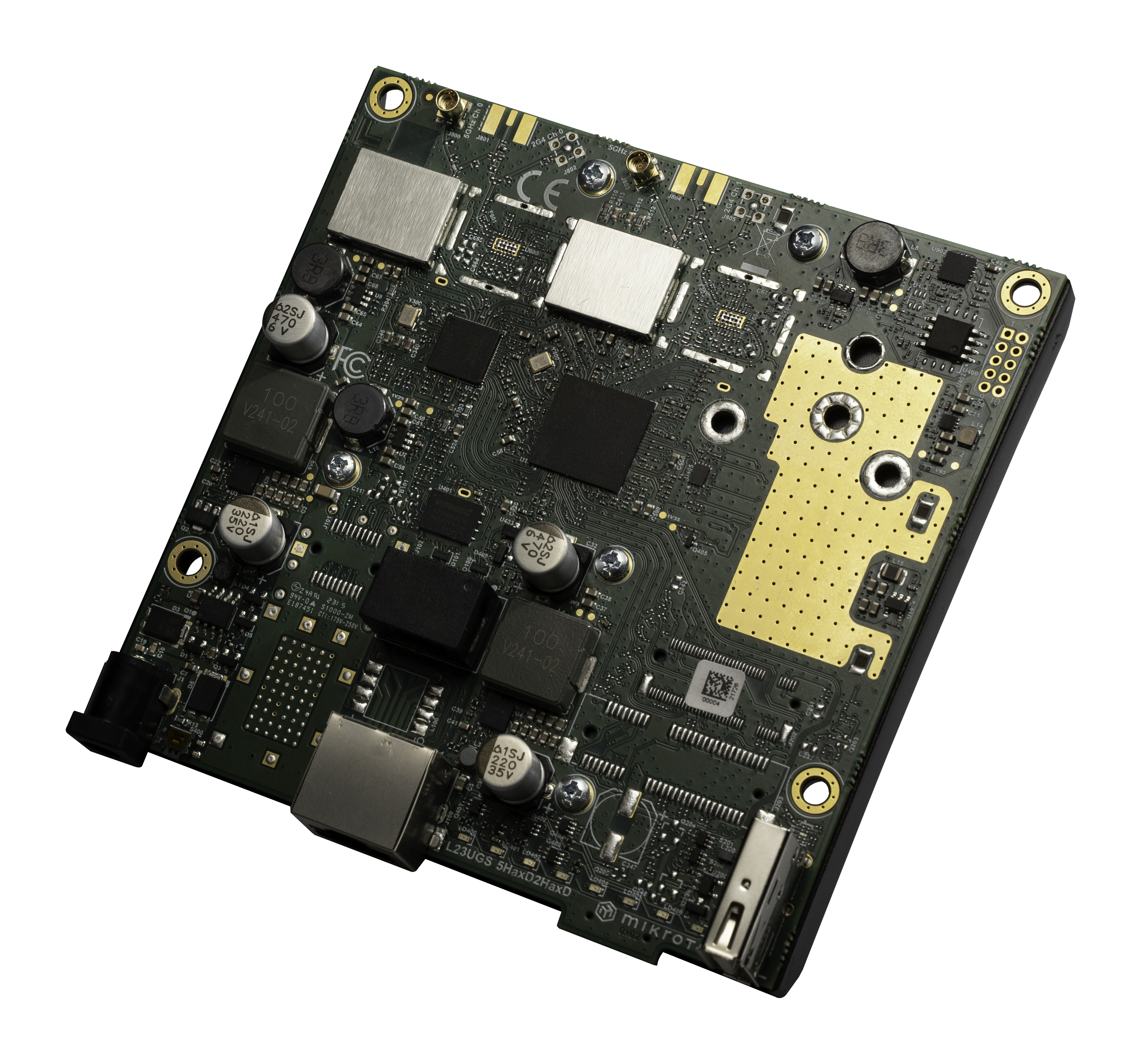

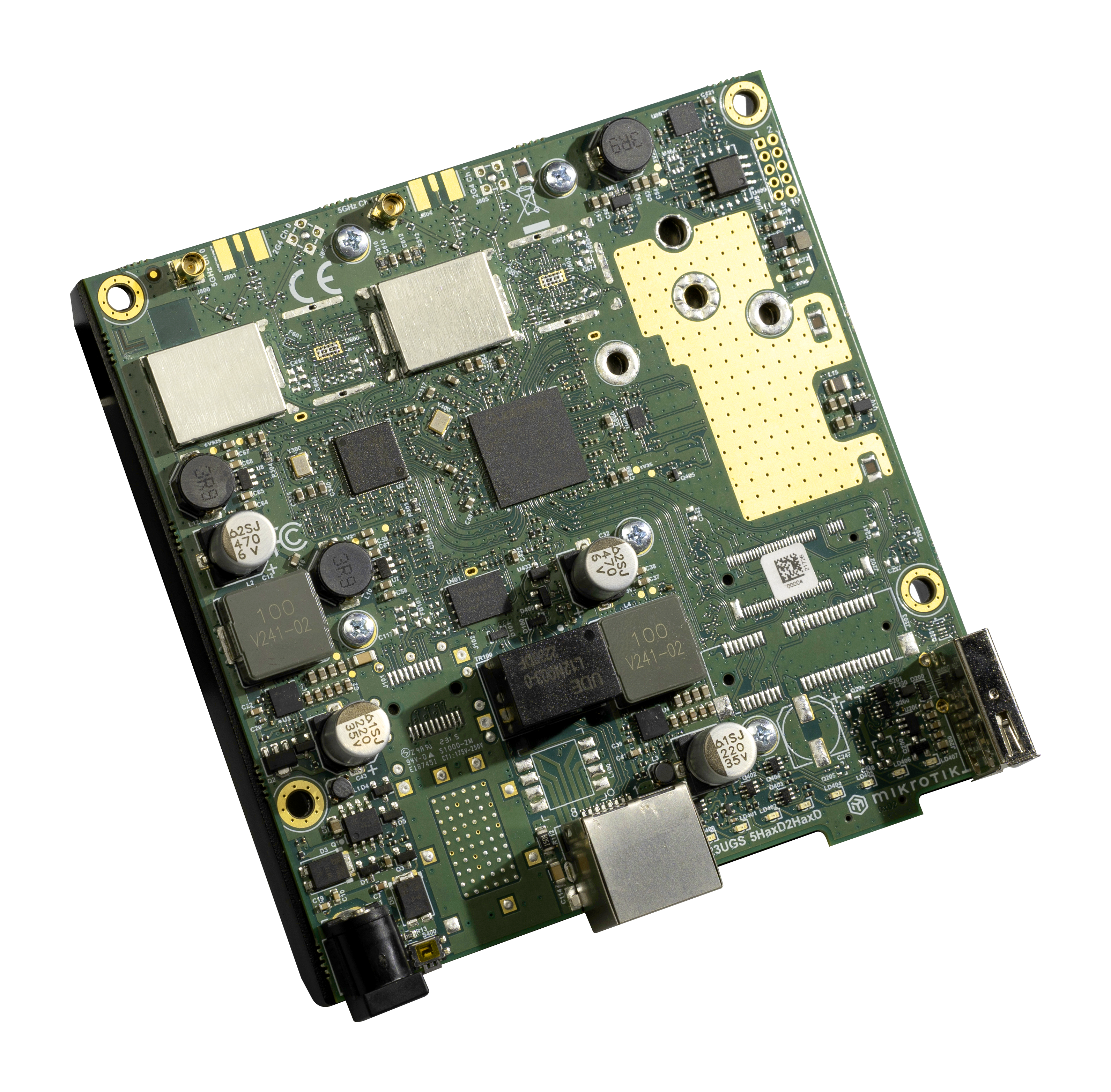

L11UG-5HaxD Board

Build a custom outdoor 5 GHz CPE or AP with:

Wi-Fi 6 for high-speed wireless connectivity
Dual-core ARM CPU for efficient processing
PoE-in for convenient power supply
Gigabit Ethernet for high-speed wired connections
RouterOS v7 for advanced network management
MMCX connectors for versatile omnidirectional access points and powerful point-to-point links

Perfect for building custom outdoor wireless solutions.

Specifications

Details
Product code	L11UG-5HaxD
Architecture	ARM
CPU	IPQ-5010
CPU core count	2
CPU nominal frequency	800 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$79.00

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-28 V
Max power consumption	15 W
Max power consumption without attachments	6 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	18-28 V

Wireless specifications

Details
Wireless 5 GHz Max data rate	2400 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Wireless 5 GHz chip model	QCN-6102
Wireless 5 GHz generation	Wi-Fi 6
