MikroTik

RBM11G

Small size powerful OEM board with one Gigabit LAN and one miniPCIe slot
Available:
Only 20 items in stock
20 items in stock
In stock
Out of stock
Back in stock
  • Description

Description

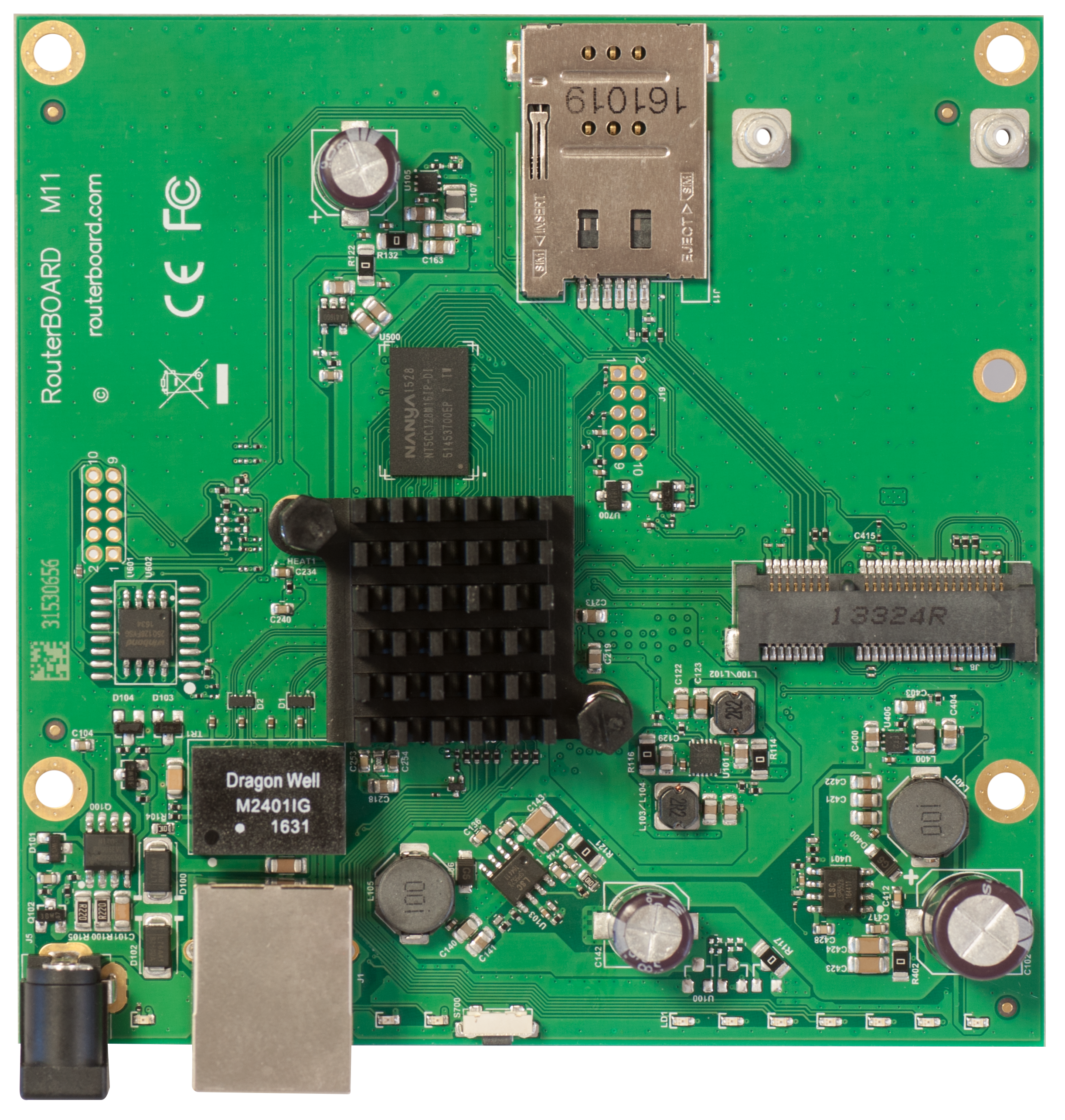

RBM11G Board
A fully featured RouterBOARD device for custom solutions, featuring:
  • Square PCB and mounting holes for easy upgrade from previous models
  • MediaTek dual core CPU at 880MHz
  • MiniPCIe slot for WiFi module or 3G/LTE modem (SIM slot included)
  • Gigabit Ethernet port with PoE support
  • DC power jack for alternative power source
Perfect for building custom solutions or upgrading existing setups with the latest technology.

Specifications

Details
Product code RBM11G
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
Dimensions 105 x 110 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $49.00

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-30 V
Max power consumption 11 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V

Ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1

Certification & Approvals

Details
Certification CE, EAC, ROHS
