RB922UAGS-5HPacD
RB922UAGS-5HPacD
Ultratech

RB922UAGS-5HPacD

720Mhz CPU, 128MB RAM, 1xGigabit Ethernet, 1xSFP cage, 1xminiPCI-e, 1xSIM, onboard 802.11ac Two Chain 5Ghz wireless, RouterOS L4
Available:
Only 20 items in stock
20 items in stock
In stock
Out of stock
Back in stock
  • Description

Description

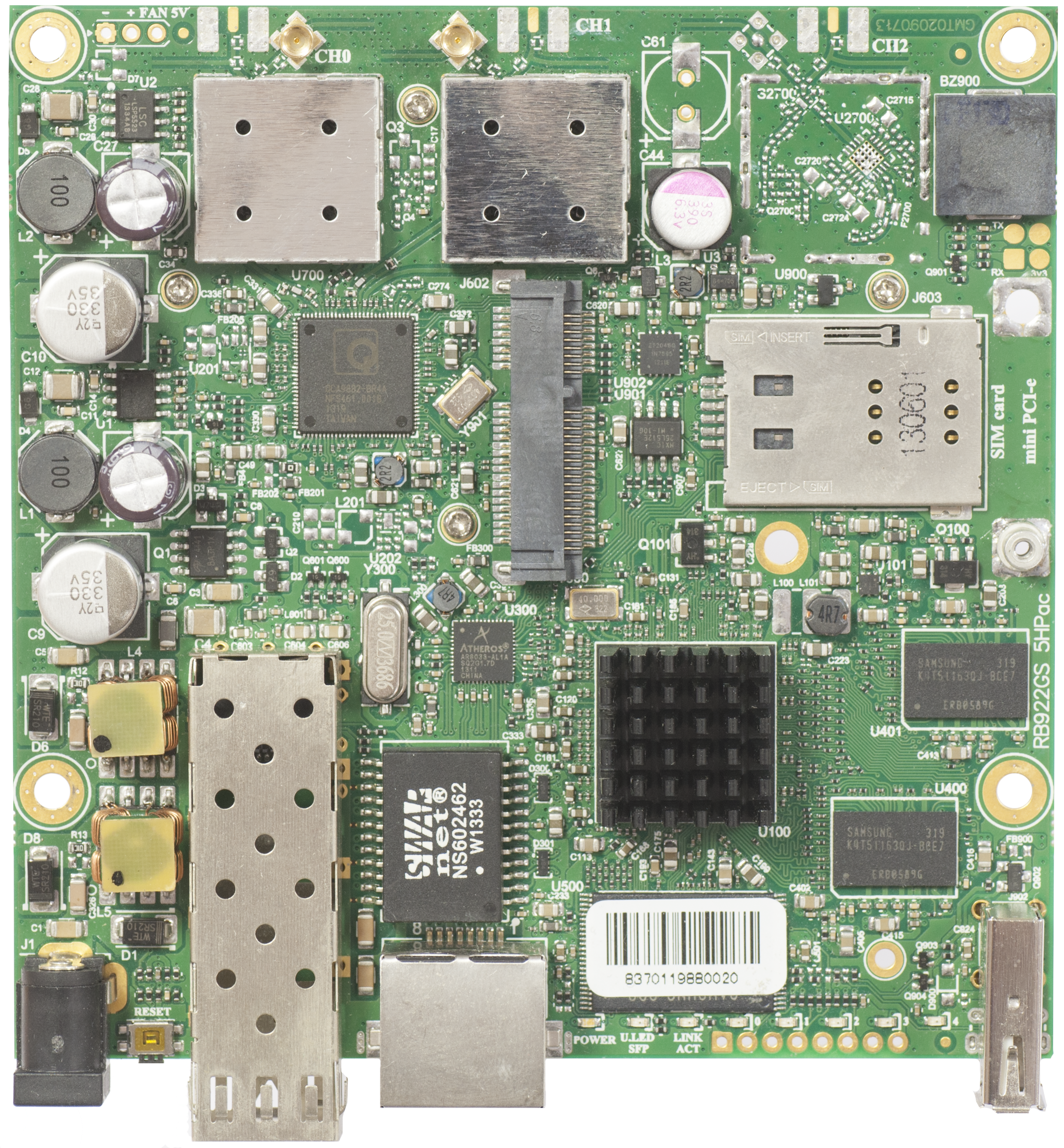

RouterBOARD RB922UAGS-5HPacD
A highly versatile wireless router for custom solutions, featuring:
  • Support for 802.11ac standard with up to 866Mbit data rate and 20/40/80MHz channels
  • 1x SFP cage for fiber connectivity
  • MiniPCIe slot with SIM for 3G/4G modem or additional wireless card
  • USB port for storage or device connectivity
  • Gigabit Ethernet port for wired connections
  • Two MMCX connectors for built-in 802.11ac 2x2 radio
  • Comes with RouterOS L4 (AP) license

Specifications

Details
Product code RB922UAGS-5HPacD
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 105x105mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $99.00

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 17 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Wireless 5 GHz chip model QCA9882
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP DDMI yes
SFP ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP00

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -96
54MBit/s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72
