RB912UAG-5HPnD
RB912UAG-5HPnD
MikroTik

RB912UAG-5HPnD

600MHz CPU, 64MB RAM, 1xGigabit Ethernet, onboard 5Ghz wireless, miniPCI-express, USB, SIM slot, RouterOS L4
Available:
Only 20 items in stock
20 items in stock
In stock
Out of stock
Back in stock
  • Description

Description

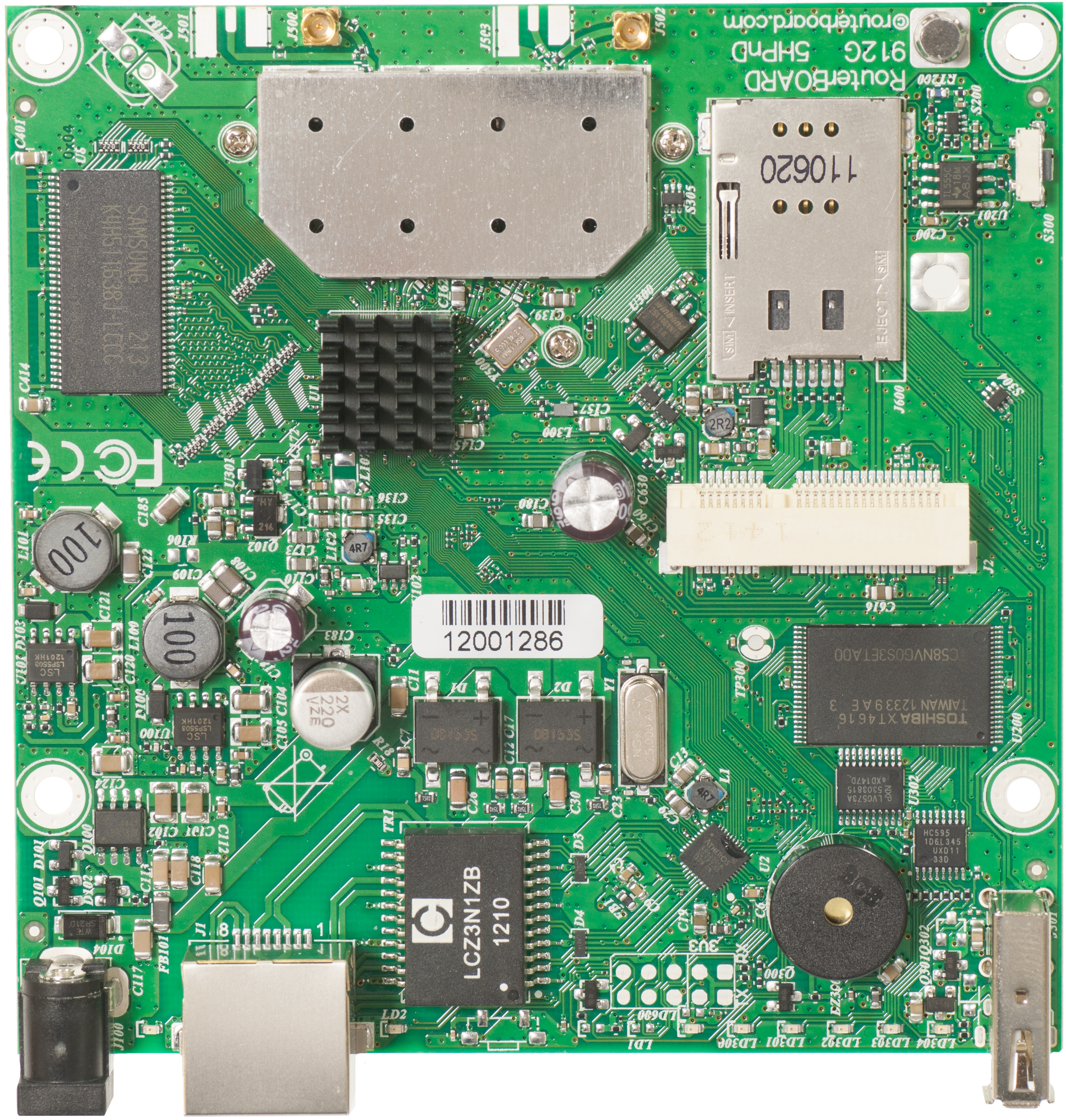

RB912UAG-5HPnD Board
A compact and versatile wireless router, featuring:
  • Integrated high-power wireless card
  • MiniPCIe slot for additional 802.11 wireless or 3G card
  • Gigabit Ethernet port for high-speed wired connections
  • Built-in 16kV ESD protection on Ethernet and MMCX ports
  • Supports various frequency ranges (dependent on region and country regulations)
Ideal for a range of wireless applications, including those requiring high-speed connectivity and robust reliability.

Specifications

Details
Product code RB912UAG-5HPnD
Architecture MIPSBE
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 105x105mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $79.00

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 8-30 V
Max power consumption 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Wireless 5 GHz chip model AR9342
Wireless 5 GHz generation Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP00

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 27 -78
MCS0 30 -96
MCS7 26 -75
