RB450Gx4 Board: A high-performance Ethernet router board with 5 Gigabit Ethernet ports, serial port, and microSD card slot, powered by MikroTik RouterOS and ideal for custom networking solutions
RB450Gx4 Board: A high-performance Ethernet router board with 5 Gigabit Ethernet ports, serial port, and microSD card slot, powered by MikroTik RouterOS and ideal for custom networking solutions
RB450Gx4 Board: A high-performance Ethernet router board with 5 Gigabit Ethernet ports, serial port, and microSD card slot, powered by MikroTik RouterOS and ideal for custom networking solutions
RB450Gx4 Board: A high-performance Ethernet router board with 5 Gigabit Ethernet ports, serial port, and microSD card slot, powered by MikroTik RouterOS and ideal for custom networking solutions
MikroTik

RB450Gx4

Four core 716MHz CPU, 1GB RAM, 5xGigabit Ethernet, PoE out on port #5, RouterOS L5
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
  • Description

Description

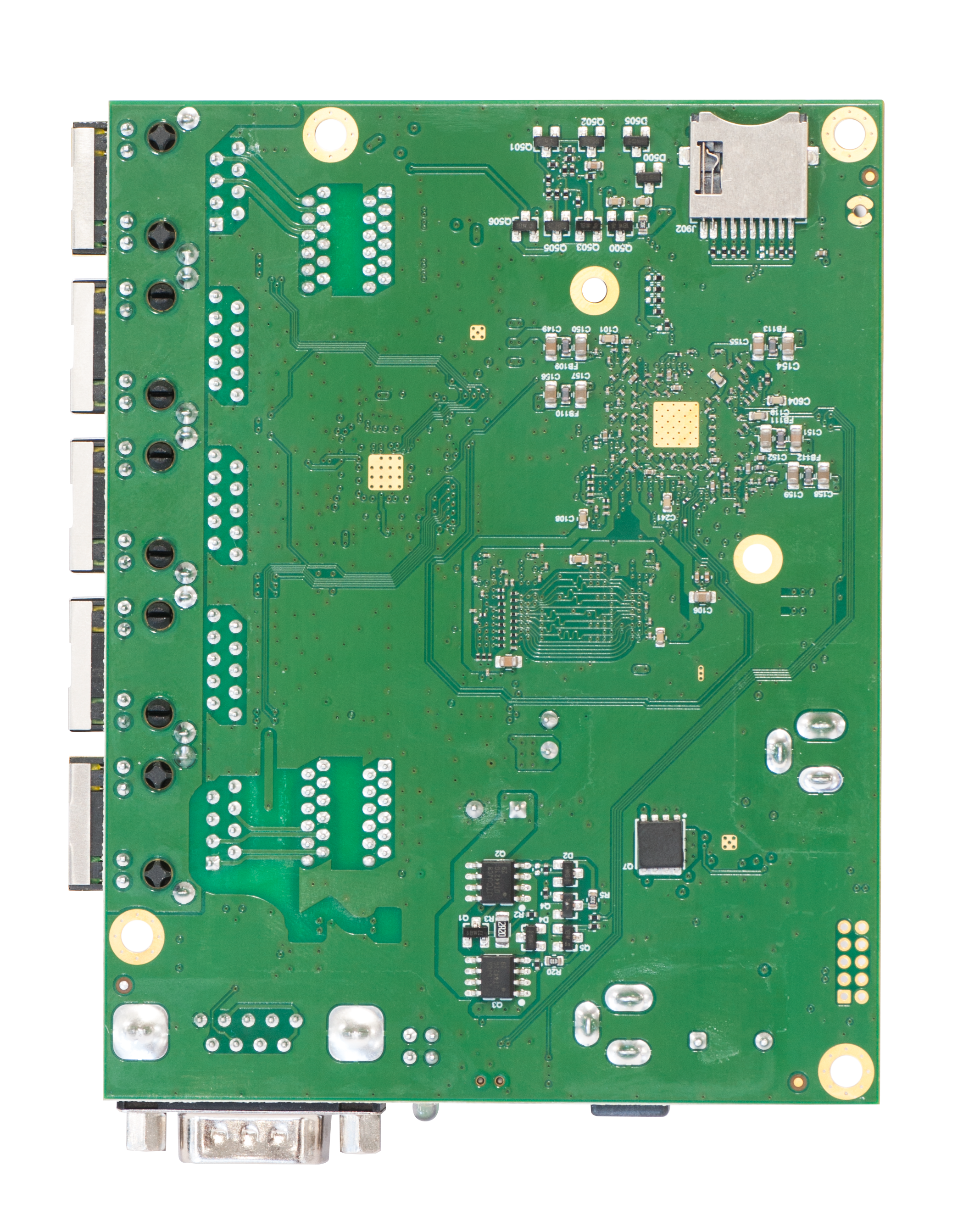

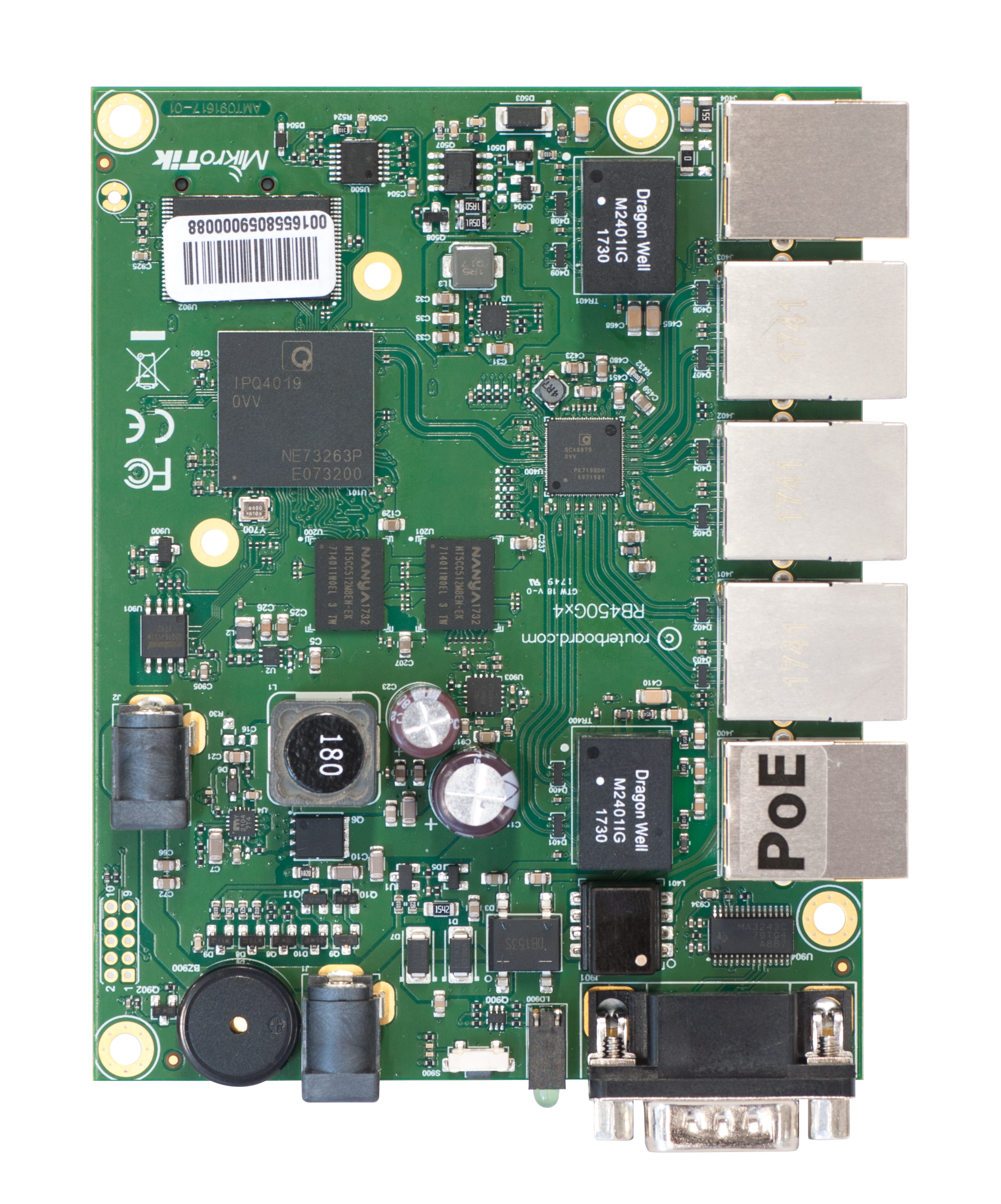

RB450Gx4 Board
A powerful and versatile Ethernet router board, featuring:
  • 5x Gigabit Ethernet ports
  • Serial port
  • 512 MB NAND memory
  • MicroSD card slot
  • Supports 10V-57V input via two power jacks or PoE
  • PoE output for Ethernet port #5
  • Quad-core ARM CPU
  • 1 GB RAM
  • Hardware IPsec encryption
  • Powered by MikroTik RouterOS

Specifications

Details
Product code RB450Gx4
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4019
Dimensions 90 x 116 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $99.00

Powering

Details
Number of DC inputs 3 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 16 W
Max power consumption without attachments 4 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 500 mA
Max total out (A) 500 mA

Ethernet

Details
10/100/1000 Ethernet ports 5

Peripherals

Details
Memory card type microSD
Serial console port RS232

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP00
