MikroTik

RBM33G

Powerful OEM board with three Gigabit LAN and two miniPCIe slots
Available:
Only 20 items in stock
20 items in stock
In stock
Out of stock
Back in stock
  • Description

Description

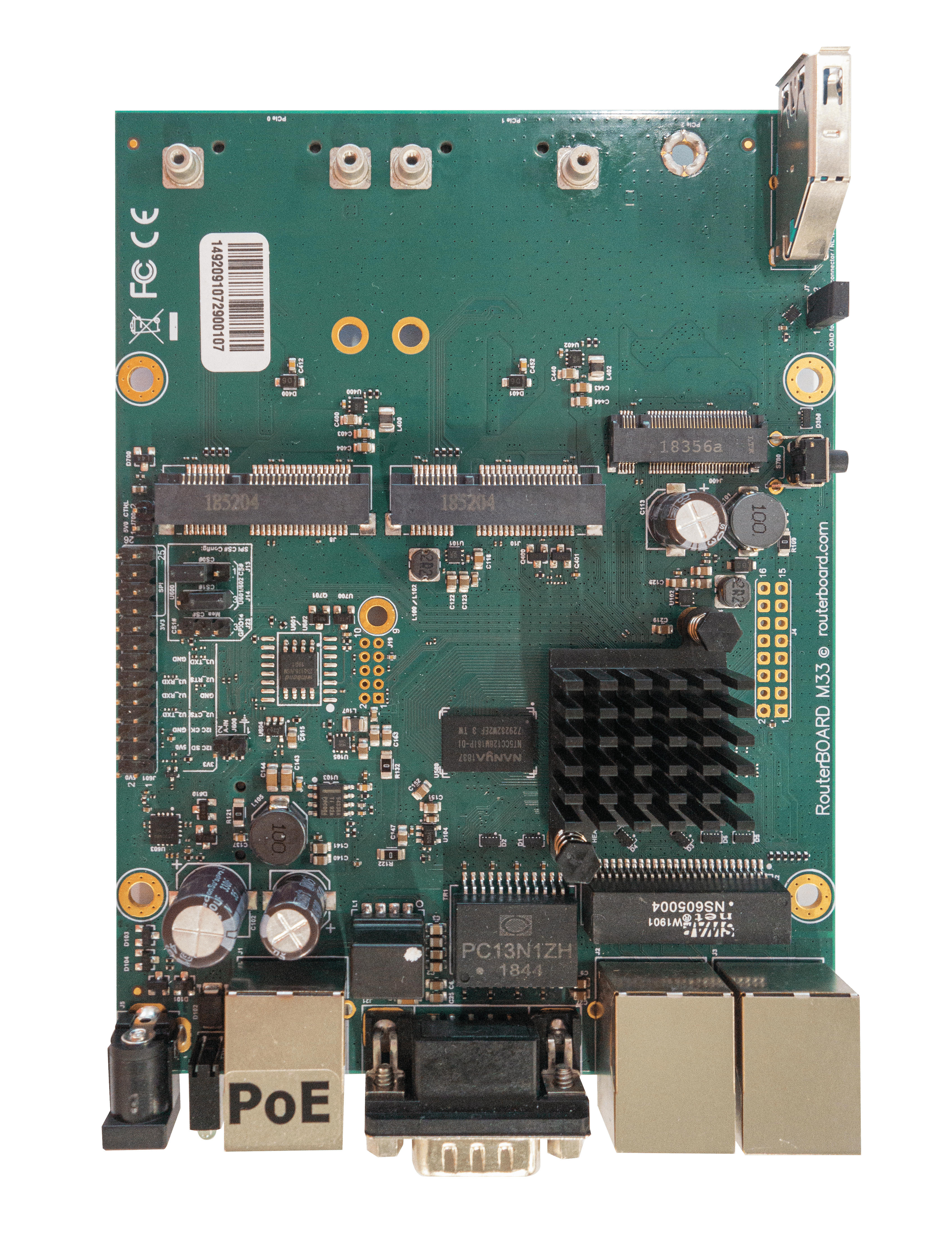

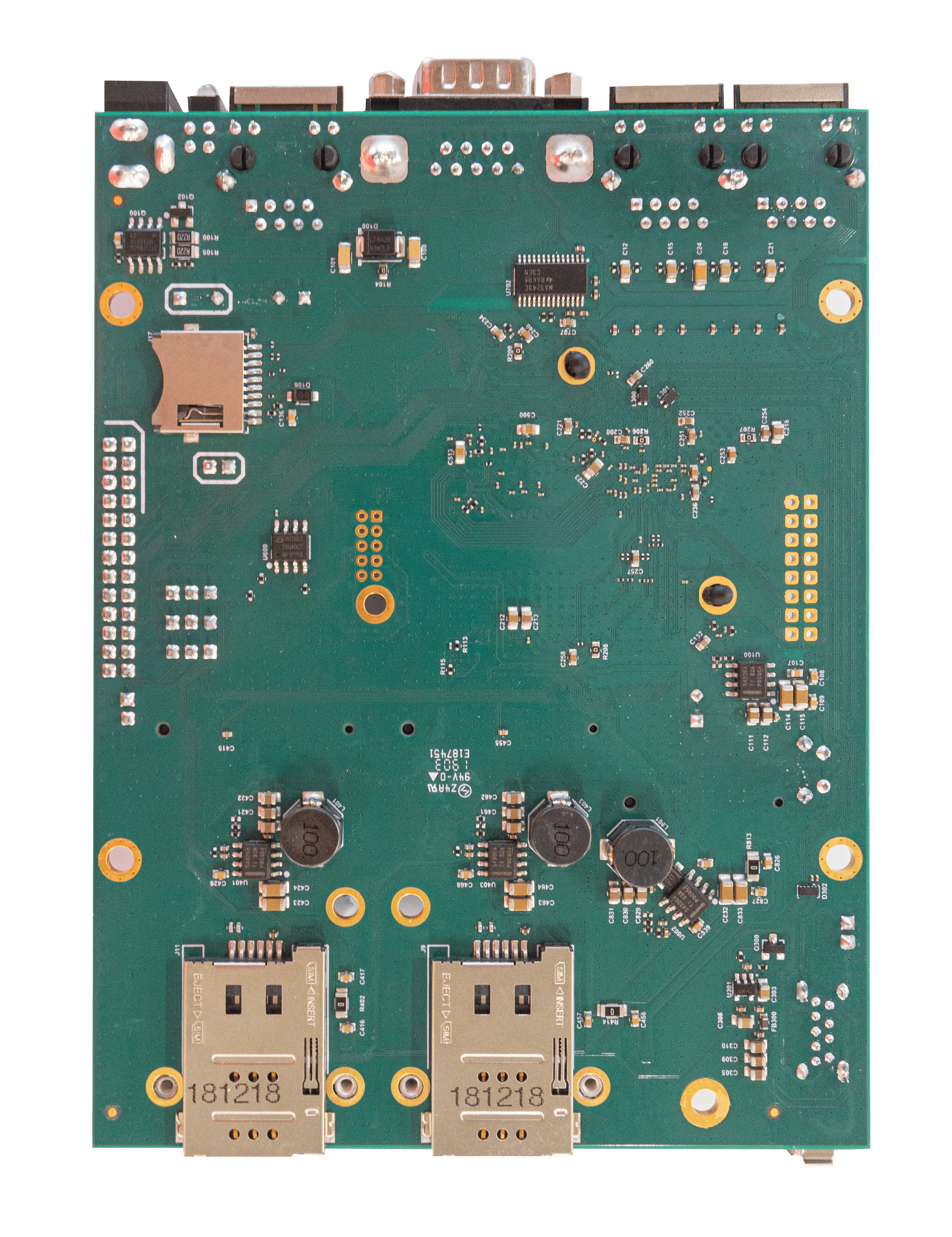

RBM33G Board
A fully featured RouterBOARD device for custom solutions, featuring:
  • Two-core CPU at 880 MHz
  • 256 MB DDR3 RAM
  • Three gigabit Ethernet ports
  • Dual miniPCIe slots for 3G/LTE modems or 802.11 wireless card
  • USB 2.0/3.0 port for 3G/LTE modem or external hard drive
  • MicroSD and PCIe M.2 slots for storage expansion
  • RS232 serial port for console access
  • PoE support through gigabit Ethernet or DC power jack
Perfect for custom setups requiring multiple mobile connections and versatile storage options.

Specifications

Details
Product code RBM33G
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
Switch chip model MT7621A
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $59.00

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 11-28 V
Max power consumption 24 W
Max power consumption without attachments 5 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 11-28 V

Ethernet

Details
10/100/1000 Ethernet ports 3

Peripherals

Details
Number of SIM slots 2 Modem (Mini SIM)
M.2 slots 1
MiniPCI-e slots 2
Serial console port RS232 + GPIO header
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1
Number of M.2 slots 1

Certification & Approvals

Details
Certification CE, EAC, ROHS
