Signal Fire AI-5 Optical Fiber Fusion Splicer

Name: Signal Fire AI-5 Optical Fiber Fusion Splicer
Brand: Singlefire
Availability: OutOfStock
Rating: 5.0 (10 reviews)

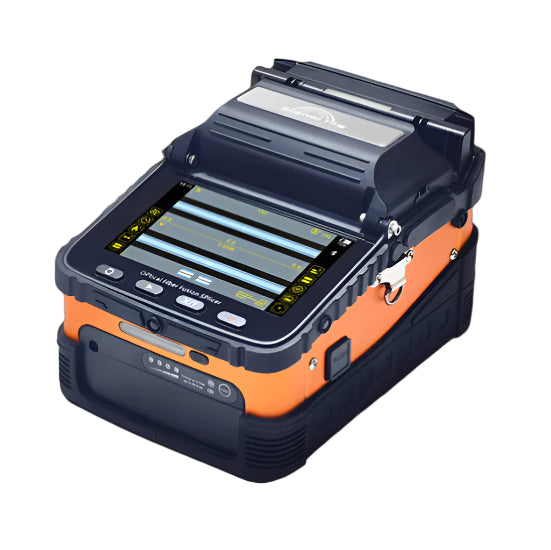

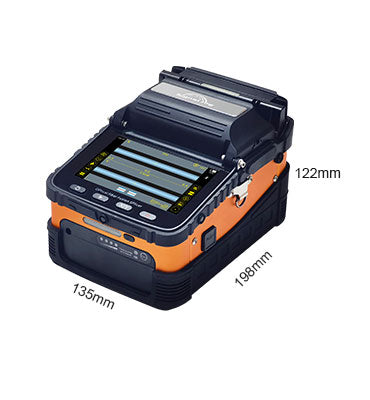

The Signal Fire AI-5 is a high-performance optical fiber fusion splicer designed for fast, precise splicing. Ideal for FTTH and security projects, it features a 5" display, 6-motor core alignment, quick splicing/heating times, and a long-lasting battery—making it a reliable tool for field professionals.

Contact Now

Description
Reviews

Signal Fire AI-5: Fast, Reliable, and User-Friendly Fiber Splicer for Modern Connectivity Needs

The Signal Fire AI-5 is built for top-notch precision and efficiency in splicing optical fibers, which makes it perfect for security monitoring and Fiber to the Home projects. It has a 5-inch color display that’s easy to read and understand, making it simple to use. With six motors and core alignment tech, it can splice in just 8 seconds and heat up in 18 seconds, boosting work speed by about 50% compared to regular splicers. Fiber Splicing Machine works with different types of fiber, like single-mode, multi-mode, bare fiber, and drop cables. Its strong 5200mAh battery lasts for around 160 splicing and heating cycles on a full charge. Plus, it comes with Bluetooth 4.2 for app management, USB ports for LED lights and charging, and a tough design that’s waterproof, dustproof, and drop-resistant.

You can find it at Ultratech in Pakistan, where it brings advanced tech right to your hands.

Feature	Specification
Fiber Alignment	Core/cladding alignment
Motors	6 precision motors
Splicing Time	8 seconds
Heating Time	18 seconds (customizable for environment)
Fiber Compatibility	SM (G.652, BIF/G.657), MM, bare fiber, drop cable, pigtail, jumper, invisible
Cladding Diameter	80–150 μm
Typical Splice Loss	SM: 0.02 dB, MM: 0.01 dB, DS/NZDS: 0.04 dB
Splicing Mode	Auto core alignment; standard/high precision
Splicing Operation	Automatic / Semi-automatic
Fiber Holder	3-in-1 fixture, supports all major fiber types
Battery	5200mAh, ≤3.5h charge, ~160 cycles
Magnification	300x (single axis), 150x (dual axis)
Fiber Diameter	Cladding: 80–150 μm, Coating: 100–1000 μm
Cutting Length	≤250 μm: 8–16 mm; 250–1000 μm: 16 mm
Heat-Shrink Tube Sizes	25 mm, 40 mm, 50 mm, 60 mm
Tensile Test	Standard 2N
Display	5" color TFT screen
External Lighting	USB-powered LED supported
Mobile Charging	USB port available for device charging
Boot Time	1 second
Data Storage	1000 local records, unlimited via server
Wireless	Bluetooth 4.2, 2.4GHz, up to 60m
Software Updates	Via smartphone app (Bluetooth sync)
Management Features	Remote tracking, usage limits, multi-device control
USB Interface	USB 2.0 (Type-A)
Return Loss	> 60 dB
Protection	Waterproof, dustproof, drop-resistant
Power Supply	Input: AC100–240V, 50/60Hz; Output: DC13.5V/4.8A
Power Monitoring	Real-time power mode and battery level tracking
Operating Conditions	Temp: -15°C to +50°C; Humidity <95% RH; Altitude: 0–5000m; Wind ≤15 m/s
