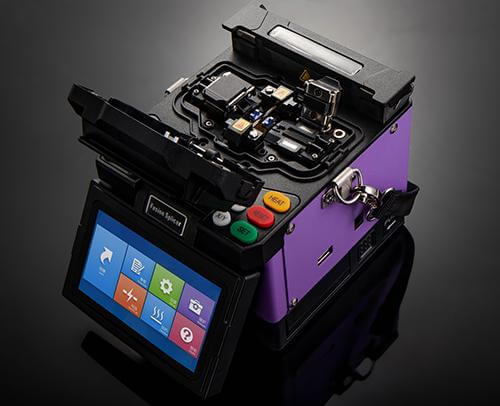

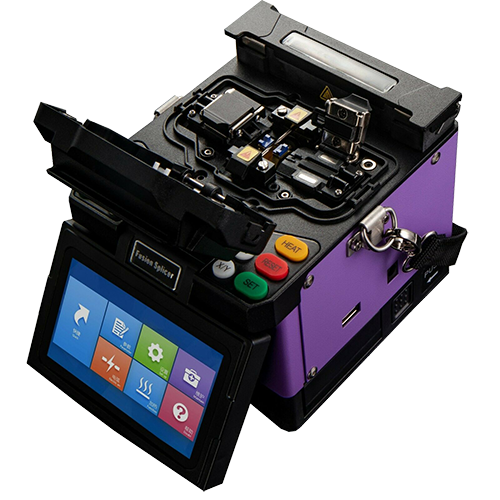

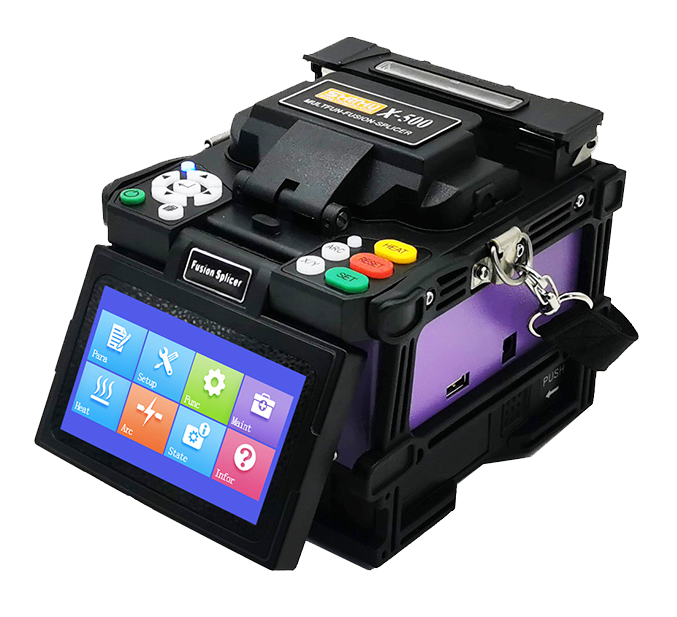

X500 Active V-groove Fusion Splicer

Name: X500 Active V-groove Fusion Splicer
Brand: Shinho
Availability: InStock
Rating: 5.0 (10 reviews)

FTTx Fiber Fusion Splicer

Contact Now

Specifications

Applicable fiber	SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Diameter of cladding	80 -150μm
Diameter of coating	160-900μm
Typical splice loss	SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss	＞ 60dB
Fibe cleaved length	5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
Splicing program	40 groups
Operate mode	Automatic/Manual
Auto-heating	Available
Typical splicing time	7 seconds
Typical heating time	26 seconds
Fiber magnification	250X (X or Y view), 125X (X and Y view)
Display screen	4.3 inch color LCD monitor
Records storage	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easy for operation
Battery	5200mAh Li-battery, typical 250 cycles splicing and heating
Power supply	Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V
Electrodes life	More than 4000 ARC discharges, can be replaced vonveniently
Ternimal	USB2.0 port, for software upgrading and records exporting
Operating conditions	Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s

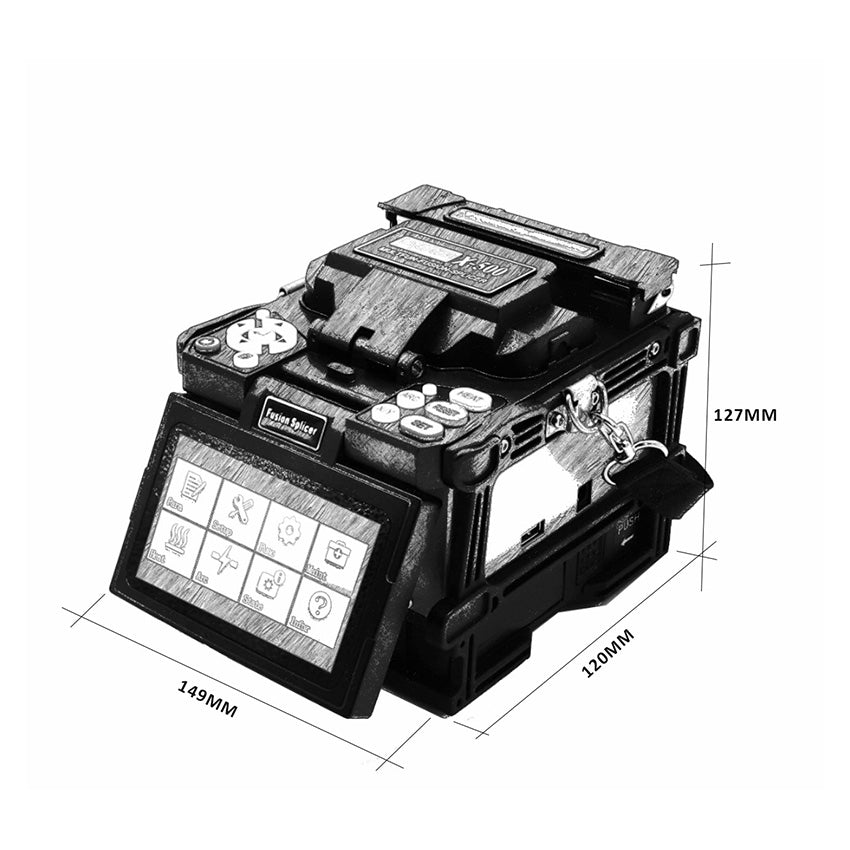

Dimension	149mm(L) * 120mm(W) * 127mm(H)
Weight	1.90kg (including battery)
