Huawei HG8546M | ONT | WiFi, 1x RJ45 1000Mb/s, 3x RJ45 100Mb/s, 1x RJ11, 1x USB

Huawei HG8546M | ONT | WiFi, 1x RJ45 1000Mb/s, 3x RJ45 100Mb/s, 1x RJ11, 1x USB

Name: Huawei HG8546M | ONT | WiFi, 1x RJ45 1000Mb/s, 3x RJ45 100Mb/s, 1x RJ11, 1x USB
Brand: Huawei
Availability: InStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specifications

Features / filters
Number of LAN ports	4x 10/100BaseTX (RJ45)
PON standard	GPON
Wireless network standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.11b,
USB port	1x USB
VoIP ports	1x POTS

Technical specifications of Huawei Echolife HG8546M Gpon onu WiFi subscriber terminal

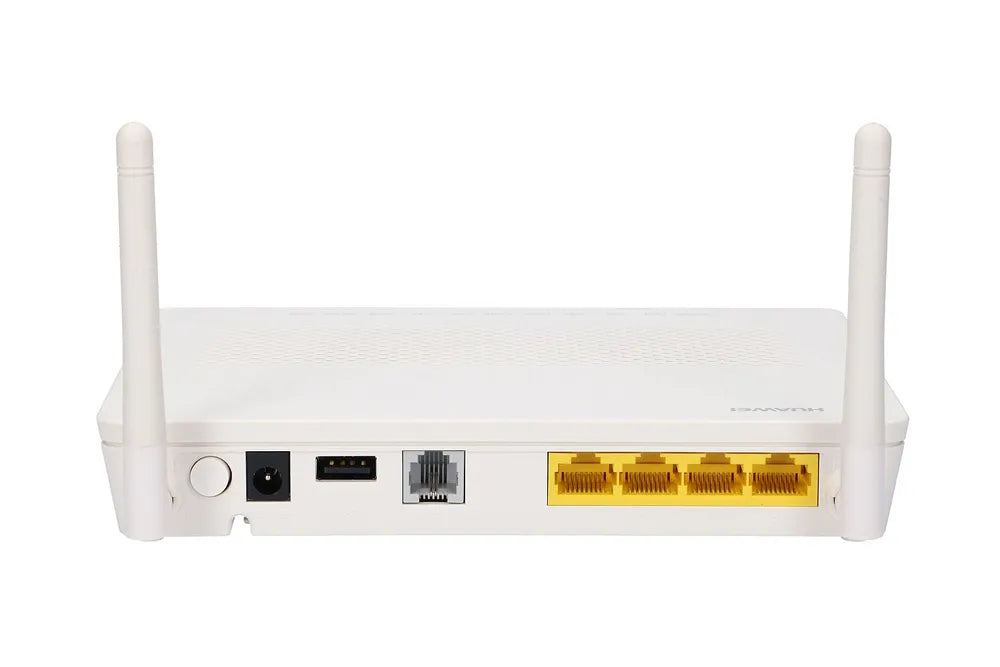

Interfaces
GPON port	1 SC/UPC GPON port Class B+ Sensitive reception: -27 dBm Wavelength: US 1310nm, DS 1490nm WBF Flexible mapping between the GEM and TCONT ports G.984.3 Double-sided FEC SR-DBA and NSR-DBA
Ethernet port	1 port 10/100/1000BASE-T (RJ45); 3 ports 10/100BASE-T (RJ45) Transparent VLAN transmission
POTS port	Maximum REN: 4 G.711A/u, G.729a/b and G.722 T.30 / T.38 / G.711 fax DTMF Emergency calls (via SIP protocol)
USB port	1 USB 2.0 port Possibility to create a network drive based on FTP
WLAN	IEEE 802.11 b/g/n 2x2 MIMO Antennas with 2 dBi gain WMM Many SSIDs WPS
Connection type	SC/UPC
Physical characteristics
Dimensions	176x138x28 mm (without antenna)
Weight	< 500 g
Permissible operating temperature	0 to 40 degrees C
Permissible air humidity	5%-95% RH non-condensing
Power input	100 - 240 V AC, 50-60 Hz
System power supply	11 - 14 V DC, 1 A
Static power consumption	4.5 W
Maximum power consumption	12 W
LEDs	POWER / PON / FATE / LAN / TEL / USB / WLAN / WPS
Functionality
Intelligent connection	Intelligent WIFI coverage (support V300R015C10) Adaptive SIP / H.248 Any port Any service Parental control (support V300R015C10)
Intelligent operation and maintenance	OMCI Active passive ONT detection and isolation Call up simulation / internal test, external PPPoE / DHCP simulation test WLAN simulation
Multicast	IGMP v2 / v3 snooping IGMP v2 proxy server IGMP v3 proxy server (support V300R015C10) MLD v1 / v2 snooping WIFI provides multicast services
QoS	Ethernet port speed limit Priority 802.1 SP/YYYY / SP + YYYYY Limit on packet transmission speed
O & M	OMCI / Web UI / TR069 Double backup and restore software
Security	SPI firewall Anti-DoS attack MAC / IP / URL filtering
