Ultratech

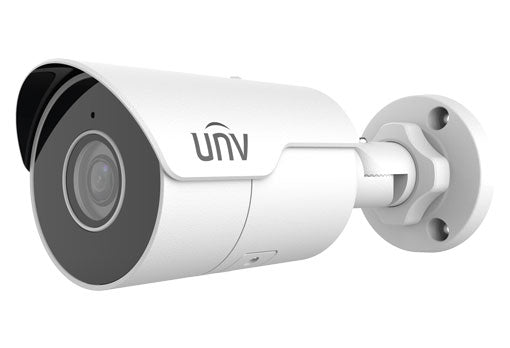

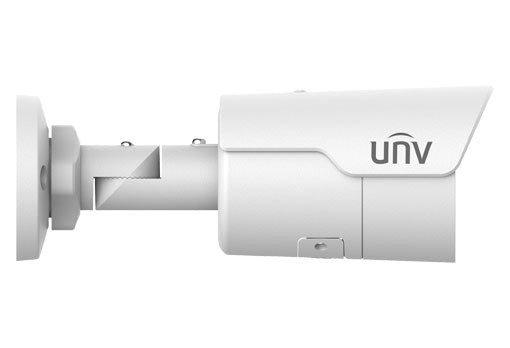

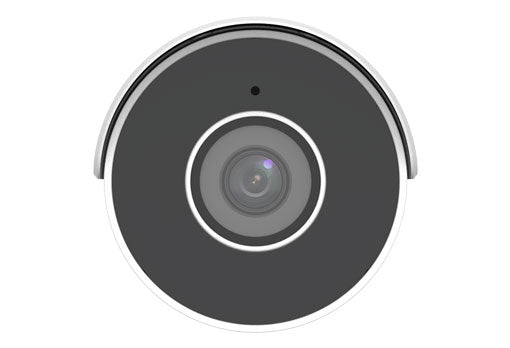

IPC2234LE-EZB2
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
- Description
- Reviews
Specification
IPC2234LE-EZB2 | |||||||
Camera | |||||||
Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||
Lens & Mount | 2.8mm@F1.4@M12 | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||
Angle Of View (H) | 101.1° | ||||||
Angle Of View (V) | 55.3° | ||||||
Angle Of View (O) | 111.1° | ||||||
Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Minimum Illumination | Colour: 0.003Lux (F1.4, AGC ON) 0Lux with IR |
||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
Digital Noise Reduction | 2D/3D DNR | ||||||
S/N | >56dB | ||||||
IR Range | Up to 60m IR range | ||||||
Wavelength | 850nm | ||||||
IR On/Off Control | Auto/Manual | ||||||
Defog | Digital Defog | ||||||
WDR | 120dB | ||||||
Bit Rate | CBR/VBR | ||||||
Trigger Action | Supported | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
H.265 Code Profile | Baseline profile, Main profile, High profile | ||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
Simultaneous Live View | Up to 8 Channels | ||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
User / Host | Up to 35 User | ||||||
9:16 Corridor Mode | Supported | ||||||
OSD | Up to 4 OSDs | ||||||
Privacy Mask | Up to 4 areas | ||||||
ROI | Up to 8 areas | ||||||
Motion Detection | Up to 4 areas | ||||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital Noise Reduction | 2D/3D DNR | ||||||
Environment Noise Filtering | Supported | ||||||
Image Parameters switch | Support | ||||||
Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance (adjustable by client software or web browser.) | ||||||
Smart IR | Support | ||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
Dewarping | N/A | ||||||
HLC | Supported | ||||||
BLC | Supported | ||||||
Audio | |||||||
Audio Bit Rate & Compression | 64kbps @ G.711ulaw | ||||||
Suppression | Supported | ||||||
Sampling Rate | 8KHZ | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256GB | ||||||
Network Storage | ANR, NAS(NFS) | ||||||
Smart | |||||||
Behavior Detection | Cross line, intrusion(based on human body detection), Region Entrance Detection, Region Exiting Detection | ||||||
Visual alarm supported | |||||||
motion detection (Human and Vehicle Targets Classification), video tampering alarm, exception, audio detection | |||||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||||
Linkage Method | Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email. | ||||||
Network | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), SDK, ISAPI/LAPI | ||||||
Security | Password Protection, Complicated Password, HTTPS encryption, WSSE and digest authentication for ONVIF, IP Address Filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2. | ||||||
Client | EZStation EZView EZLive Up to 32 Uses and 3 user levels (administrator, operator and user) |
||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
Interface | |||||||
Network | 1 RJ45 10/100M Base Self-Adaptive Ethernet Port | ||||||
Built-in Mic | Supported | ||||||
Certifications | |||||||
Certifications | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024:2010+A1:2015); CE-RoHS (2011/65/EU, (EU)2015/863); UL: UL (UL 62368-1), CE: CE-LVD (EN 62368-1:2014/A11:2017); FCC: FCC (47 CFR Part 15, Subpart B); KC (KN 32: 2015, KN 35: 2015) WEEE (2012/19/EU), Reach (Regulation (EC) fNo 1907/2006) |
||||||
General | |||||||
Power | DC 12V±25%, PoE (IEEE 802.3af, Class 3) | ||||||
Power consumption: 12VDC±25%,0.88A, max:6.0W, PoE: (802.3af,36V to 57 V), 0.3 A to 0.2 A, max: 10.5 W | |||||||
Dimensions(L × W × H) | 190×73×71mm (7.5”×2.9”×2.8”) | ||||||
Net Weight | 0.46kg (1.01lb) | ||||||
Material | Metal | ||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Environment | CE-RoHS | ||||||
Surge Protection | 4KV | ||||||
Ingress Protection | IP67 (IEC 60529-2013) | ||||||
Reset Button | Software reset |
