Uniview
IPC2322LB-ADEZK-H

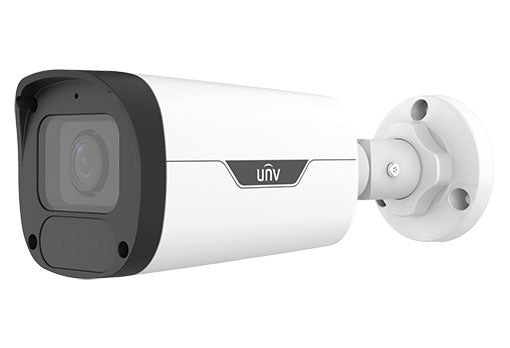

2MP HD IR VF Bullet Network Camera
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
- Description
- Reviews
Description
2MP HD IR VF Bullet Network Camera
High quality image with 2MP, 1/2.8"CMOS sensor
2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
Ultra 265, H.265, H.264, MJPEG
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Alarm:1 in/1 out, Audio: 1 in/1 out
Smart IR, up to 50m (164ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
Specification
IPC2322LB-ADEZK-H | ||||||||
Camera | ||||||||
Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||||||
Minimum Illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on |
|||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | |||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
WDR | 120dB | |||||||
S/N | >52 dB | |||||||
Lens | ||||||||
Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||
Iris | Fixed | |||||||
Field of View (H) | 103.6°~33.4° | |||||||
Field of View (V) | 54.8°~18.7° | |||||||
Field of View (D) | 107.9°~37.8° | |||||||
DORI | ||||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
2.8 | 43.4(142.5ft) | 17.4(57.0ft) | 8.7(27.5ft) | 4.3(14.3ft) | ||||
12 | 186.2(610.9ft) | 74.5(244.4ft) | 37.2(122.2ft) | 18.6(61.1ft) | ||||
Illuminator | ||||||||
IR Range | Up to 50m (164ft) | |||||||
Wavelength | 850nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 code profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
|||||||
Video Bit Rate | 128 Kbps~6 Mbps | |||||||
U-code | Support | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 8 areas | |||||||
Video Stream | Dual streams | |||||||
Image | ||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
Dewarping | N/A | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Events | ||||||||
Basic Detection | Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way Audio | N/A | |||||||
Suppression | Support | |||||||
Sampling Rate | 8KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 256GB | |||||||
Network Storage | ANR, NAS(NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP,SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||
Client | EZStation EZView EZLive |
|||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||
Interface | ||||||||
Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
Output: impedance 600Ω; amplitude 2V [p-p] | ||||||||
Alarm I/O | 1/1 | |||||||
RS485 | N/A | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certifications | ||||||||
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
|||||||
Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) | |||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power consumption: Max 9.6W | ||||||||
Power Interface | Ø 5.5mm coaxial power plug | |||||||
Dimensions (L × W × H) | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) | |||||||
Weight | 0.51kg(1.12lb) | |||||||
Material | Graphene + Metal | |||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 6KV | |||||||
Reset Button | Support |
