Ultratech

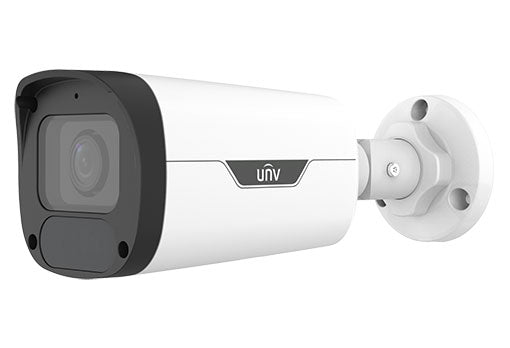

IPC2322LB-ADEZK-H
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
- Description
- Reviews
Specification
Camera | Description |
Resolution | 2MP |
Sensor | 1/2.7''CMOS |
Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
S/N | >52dB |
WDR | 120dB |
Lens | Description |
Lens type | 2.8~12mm |
Iris | F1.6 |
Iris Type | Fixed |
Field of View (H) | 103.6°~33.4° |
Field of View (V) | 54.8°~18.7° |
Field of View (D) | 107.9°~37.8° |
DORI | Description |
DORI Distance(Lens) | 2.8mm,12mm |
DORI Distance(Detect) | 43.4m(142.5ft),186.2m(610.9ft) |
DORI Distance(Observe) | 17.4m(57.0ft),74.5m(244.4ft) |
DORI Distance(Recognize) | 8.7m(27.5ft),37.2m(122.2ft) |
DORI Distance(Identify) | 4.3m(14.3ft),18.6m(61.1ft) |
Illuminator | Description |
Illumination Distance(IR) | 50m |
Wavelength | 850nm |
IR On/Off Control | Auto/Manual |
Video | Description |
Video Compression | Ultra 265; H.265; H.264; MJPEG |
H.264 code profile | Baseline profile, Main profile, High profile |
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
Video Bit Rate | 128 Kbps~6144 Kbps |
U-code | Support |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 8 areas |
Video stream | Dual streams |
Image | Description |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reduction | 2D/3D DNR |
Smart IR | Support |
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
Dewarping | N/A |
HLC | Support |
BLC | Support |
Defog | Digital Defog |
Events | Description |
Basic Detection | Cross line;intrusion(based on human body detection);Motion detection;Ultra motion detection;Tampering alarm;Audio detection |
General Function | Watermark;IP Address Filtering;Access Policy;ARP Protection;RTSP Authentication;User Authentication;HTTP authentication |
Audio | Description |
Audio Compression | G.711U;G.711A |
Audio Bitrate | 64 Kbps |
Two-way Audio | N/A |
Suppression | Support |
Sampling Rate | 8KHZ |
Storage | Description |
Edge Storage | Micro SD, up to 256GB |
Network Storage | ANR;NAS(NFS) |
Network | Description |
Protocols | IPv4;IGMP;ICMP;ARP;TCP;UDP;DHCP;RTP;RTSP;RTCP;RTMP;DNS;DDNS;NTP;FTP;UPnP;HTTP;HTTPS;SMTP;SSL/TLS;QoS;SNMP |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T);API;SDK |
User/Host | Up to 32 users, 2 user levels: administrator and common user |
Security | Password protection;Strong password;HTTPS encryption;Export operation logs;Basic and digest authentication for RTSP;Digest authentication for HTTP;TLS 1.2;WSSE and digest authentication for ONVIF |
Client | EZStation;EZView; EZLive |
Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above;Plug-in free live view: Chrome 57.0 and above,Firefox 58.0 and above,Edge 16 and above |
Interface | Description |
Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p];1 Output: impedance 600Ω; amplitude 2V [p-p] |
Alarm I/O | 1/1 |
Serial Port | N/A |
Built-in Mic | Support |
Built-in Speaker | N/A |
WIFI | N/A |
Network | 1 * RJ45 10M/100M Base-TX Ethernet |
Video Output | N/A |
Certification | Description |
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
Protection | IP67 (IEC 60529) |
General | Description |
Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 9.6W |
Power Interface | Ø 5.5mm coaxial power plug |
Dimensions | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) |
Weight | 0.51kg(1.12lb) |
Material | Graphene + Metal |
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Surge protection | 6KV |
Reset button | Support |
Web Client Language | 4 Languages English, Russian, Spanish, Vietnamese |
