Ultratech

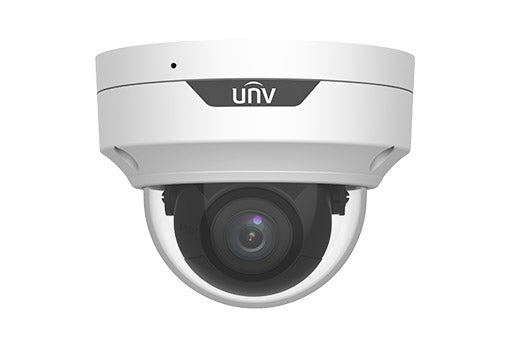

IPC3236SS-ADZK-K

Name: IPC3236SS-ADZK-K
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

IPC3236SS-ADZK-K
Camera
Sensor	1/2.7", 6.0 megapixel, progressive scan, CMOS
Lens	2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI Distance	Lens (mm)		Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.7		60.8		24.3	12.2		6.1
	13.5		303.8		121.5	60.8		30.4
Angle of View (H)	108.79°~ 33.23°
Angle of View (V)	56.90°~ 18.33°
Angle of View (O)	112.56°~37.46°
Adjustment angle	Pan: 3° ~ 360°			Tilt: 0° ~ 70°			Rotate: 3° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital Noise Reduction	2D/3D DNR
S/N	>56dB
IR Range	Up to 40m (131ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 6MP (32001800)@ 20fps; 4MP (25601440)@ 25fps; 3MP (23041296)@ 30fps;2MP (19201080)@30fps Sub Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps; Third Stream: CIF(352*288), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
9:16 Corridor Mode	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance		Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction		2D/3D DNR
Smart IR		Supported
Flip		Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping		N/A
HLC		Supported
BLC		Supported
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR, NAS(NFS)
Smart
Behavior Detection	Cross line, intrusion detection, loitering detection, people gathering detection
	Ultra motion detection(support the classification of vehicle and human), tampering alarm, audio detection
General Function	Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network	10M/100M Base-TX Ethernet
Built-in Mic	Supported
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 CSA C22.2 NO. 62368-1-14
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 7.5W
Dimensions (Ø x H)	Φ128mmx100mm (Ø5.0” x 3.9”)
Net Weight	0.65kg (1.43lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	6KV
Ingress Protection	IP67
Vandal Resistant	IK10
Reset Button	Supported
