Ultratech

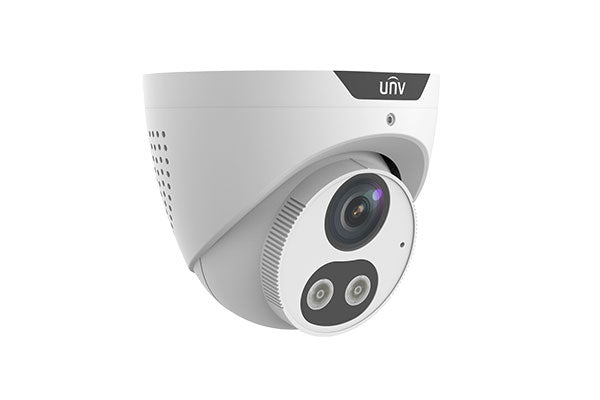

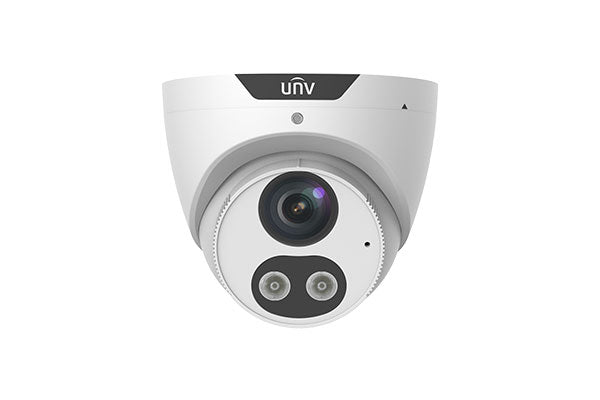

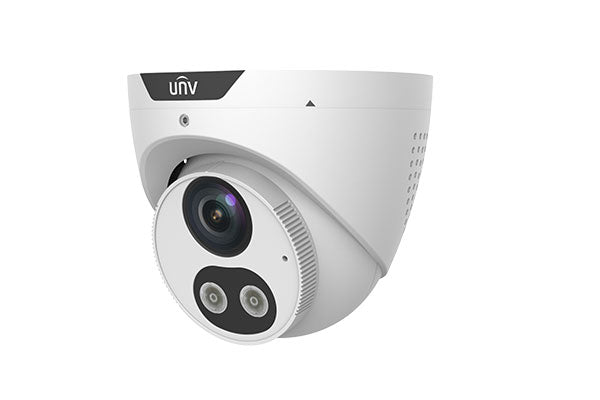

IPC3614SB-ADB2

Name: IPC3614SB-ADB2
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

IPC3614SB-ADB2
Camera
Sensor	1/1.8", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.0005Lux (F1.0, AGC ON) 0Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 80°			Rotate: 0° ~ 360°
WDR	130dB
Bit Rate	CBR/VBR
S/N	>56dB
Lens
Lens type	2.8mm@F1.0@M16
Angle of view(H)	101.1°
Angle of View (V)	55.3°
Angle of View (O)	111.1°
DORI
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	63.0		25.2	12.6		6.3
	4.0	90.0		36.0	18.0		9.0
Illuminator
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Main Stream: Ultra 265, H.265, H.264, MJPEG Sub Stream: H.265, H.264, MJPEG Third Stream: H.265, H.264
H.265 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4MP (26881520), Max 30fps;4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps;
Simultaneous Live View	Up to 8 Channels
Video Bit Rate	128 Kbps~16 Mbps
U-code	Support
ROI	Up to 8 areas
Video Stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting	Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser and software
Digital Noise Reduction	2D/3D DNR
Environment Noise Filtering	Supported
Image Parameters switch	Supported
Smart Supplement Light	Supported
Smart IR	Supported
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	N/A
HLC	Supported
BLC	Supported
Defog	Digital Defog
Intelligent
Smart intrusion prevention	Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
Face capture	Support
Statistical Analysis	People counting, support tripwire people counting and area people counting
Events
Basic Detection	Motion detection (Human and Vehicle Targets Classification), video tampering alarm, exception
General Function	Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression	G.711ulaw
Audio Bitrate	64 Kbps@ G.711ulaw
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256 GB with built-in Micro SD card slot.
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), ISAPI/LAPI, SDK
User/Host	Up to 32 Uses and 3 user levels (administrator, operator and user)
Security	Password protection, Complicated Password, HTTPS encryption, IP Address Filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2. WSSE and digest authentication for ONVIF
Client	EZStation EZView EZLive Up to 32 Uses and 3 user levels (administrator, operator and user)
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Built-in Mic	Support
Built-in Speaker	Support
Network	1 RJ45 10M/100M Base-TX self-adaptive Ethernet port.
Certifications
EMC	FCC SDoC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024:2010+A1:2015); KC (KN 32 2015. KN 35: 2015)
Safety	IEC 62368-1 EN 62368-1 UL 62368-1 CE: CE-LVD (EN 62368-1:2014/A11:2017);
Environment	CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection	Ingression protection: IP67 (IEC 60529-2013)
General
Power	DC 12V±25% (Reverse polarity protection), PoE (IEEE 802.3af, Class 3)
	Power consumption: 12VDC, 0.5A Max 6.5W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions (Ø x H)	Φ111 x 95mm (Φ4.4” x 3.7”)
Weight	0.43kg (0.948lb)
Material	Metal
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Reset Button	Software reset
