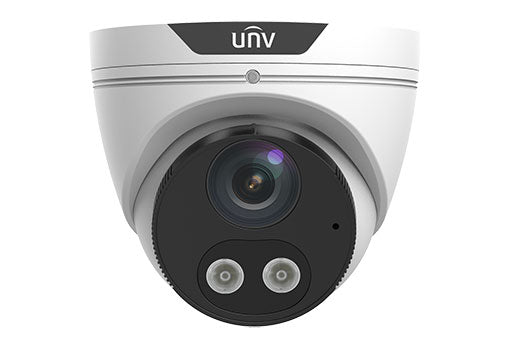

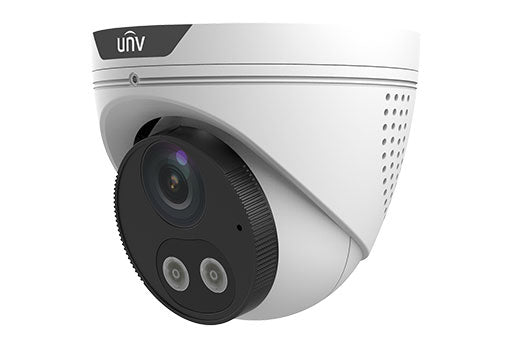

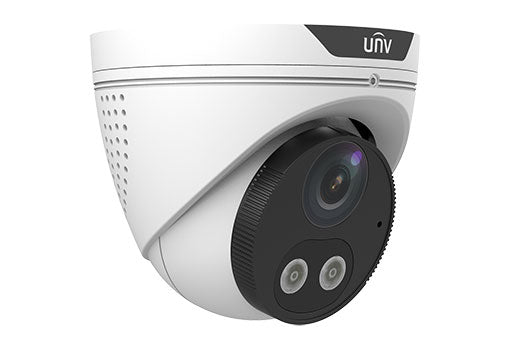

IPC3614SR3-ADF28(40)KMC-DL

Name: IPC3614SR3-ADF28(40)KMC-DL
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

	IPC3614SR3-ADF28KMC-DL				IPC3614SR3-ADF40KMC-DL
Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N	>52dB
WDR	120dB
Lens
Lens Type	2.8mm and 4.0mm @1.6, Fixed-focal
Lens Mount	M12
Angle Of View (H)	112.9°			91.2°
Angle Of View (V)	59.1°			47.9°
Angle Of View (O)	121.2°			95.9°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)			Recognize (m)	Identify (m)
	2.8	63.0	25.2			12.6	6.3
	4.0	90.0	36.0			18.0	9.0
Illuminator
IR Range	Up to 30m (98ft) IR range
White Light Range	Up to 30m (98ft) white light range
Wavelength	IR：850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4MP (26881520), Max 25fps;4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
U-code	Supported
9:16 Corridor Mode	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting	Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction	2D/3D DNR
Smart IR	Supported
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	N/A
HLC	Supported
BLC	Supported
Defog	Digital Defog
Events
Basic Detection	Cross line, intrusion(based on human body detection)
	motion detection, tampering alarm, audio detection
General Function	Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network	1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
Built-in Speaker	Supported
Certification
EMC	FCC: FCC Part 15
Safety	CE: EN 60950-1 UL: UL60950-1 IEC 60950-1
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 8.0W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions (Ø x H)	Φ118 x 96mm (Φ4.6” x 3.8”)
Weight	0.30kg (0.66lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Reset Button	N/A
Ingress Protection	Ingression protection: IP67
