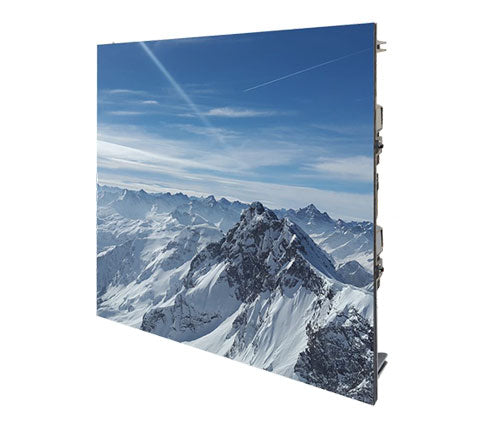

MW77XX-FO-C

Name: MW77XX-FO-C
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Model	MW7740-FO-C	MW7750-FO-C	MW7766-FO-C	MW7780-FO-C	MW77A0-FO-C
Module
Pixel pitch	P4	P5	P6.67	P8	P10
Resolution (W*H)	80*80	64*64	48*48	40*40	32*32
Dimensions (mm)	320*320
Cabinet
Dimensions (mm)	960960110
Resolution (W*H)	240*240	192*192	144*144	120*120	96*96
Weight (kg/pcs)	39±1
Pixel density (pitch/m²)	62500	40000	22500	15625	10000
Material	Die-cast aluminum
Optical
Brightness (nits)	5500
Contrast ratio	3000:1
Color temperature (K)	3500 to 9300
Viewing angle (H/V)	120°/120°
Processing performance
Grayscale (bit)	14
Scan (S)	10	8	6	5	2
Refresh rate (Hz)	3840
Single pixel brightness correction	Support
Single pixel color correction	Support
Center distance deviation of LED	<3%
Brightness uniformity	≥95%
Color uniformity (Cx,Cy)	±0.003
Electrical
Average power consumption (W/m²)	320
Max. power consumption (W/m²)	950
Power supply (V)	AC 100 to 240
Drive mode	Constant current driving
General
Maintenance mode	Front/rear maintenance
Ingress protection	IP65
Operating temperature	-20°C to 50°C
Operating humidity	10% to 90% RH non-condensing
Storage temperature	-40°C to 60°C
Storage humidity	10% to 95% RH non-condensing
LED lifetime (h)	100000
Certifications	RoHS
