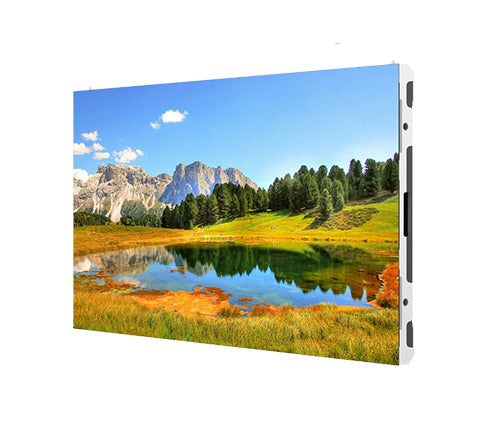

MW7812-FI-EB

Name: MW7812-FI-EB
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Model	MW7812-FI-EB
Module
Pixel pitch (mm)	P1.2
Resolution (W*H)	120*270
Dimensions (WHD)(mm)	150337.52
Unit
Dimensions (WHD)(mm)	600337.527.2
Modules component (W*H)	4*1
Resolution (W*H)	480*270
Weight (kg/pcs)	4.4
Area (m²)	0.2025
Pixel density (pitch/m²)	640000
Surface evenness (mm)	≤0.1
Cabinet material	Die-cast aluminum
Optical
Single pixel brightness correction	Support
Single pixel color correction	Support
Brightness (nits)	600
Color temperature (K)	3000 to 10000 adjustable
Viewing angle (H/V)	160°/140°
Center distance deviation of LED	<2.5%
Brightness uniformity	≥97%
Color uniformity (Cx,Cy)	±0.003Cx, Cy
Contrast ratio	4000:1
Processing performance
Grayscale	16bit
Scanning mode (s)	54
Drive mode	Constant current driving
Frame frequency (Hz)	50/60
Refresh rate (Hz)	3840
Electrical
Power supply (V)	AC 100 to 240V, 50/60Hz
Average power consumption (W/m²)	≤240
Max. power consumption (W/m²)	≤544
General
Maintenance mode	Front maintenance
Ingress protection	IP5X
Operating temperature/humidity (°C/RH)	-10°C to +40°C, 10% to 85% RH, non-condensing
Storage temperature/humidity (°C/RH)	-10°C to +55°C, 10% to 90% RH, non-condensing
LED lifetime (H)	100000
