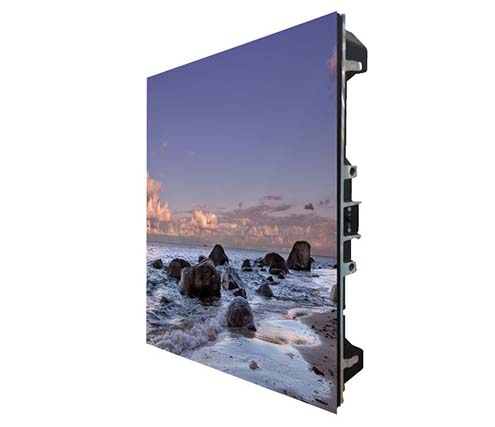

MW78XX-FI

Name: MW78XX-FI
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Model	MW7819-FI	MW7826-FI	MW7829-FI	MW7839-FI
Module
Pixel pitch	P1.9	P2.6	P2.9	P3.9
Resolution (W*H)	128*128	96*96	84*84	64*64
Dimensions (mm)	250*250
Cabinet
Dimensions (mm)	50050070
Resolution (W*H)	256*256	192*192	168*168	128*128
Weight (kg/pcs)	7±0.5
Pixel density (pitch/m²)	262144	147456	112896	65536
Material	Die-cast aluminum
Optical
Brightness (nits)	600-700
Contrast ratio	5000:1
Color temperature (K)	2000 to 9500
Viewing angle (H/V)	160°/140°	160°/140°	160°/140°	160°/140°
Processing performance
Grayscale (bit)	14
Scan (S)	32	32	28	16
Refresh rate (Hz)	3840
Single pixel brightness correction	Support
Single pixel color correction	Support
Center distance deviation of LED	<3%
Brightness uniformity	≥95%
Color uniformity (Cx,Cy)	±0.003
Electrical
Average power consumption (W/m²)	163	164	164	166
Max. power consumption (W/m²)	489	490	490	500
Power supply (V)	AC 100 to 240
Drive mode	Constant current driving
General
Maintenance mode	Front/rear maintenance
Ingress protection	Front/rear: IP30
Operating temperature	-10°C to 40°C
Operating humidity	10% to 80% RH non-condensing
Storage temperature	-20°C to 60°C
Storage humidity	10% to 85% RH non-condensing
LED lifetime (h)	100000
Certifications	CE/FCC/ETL
