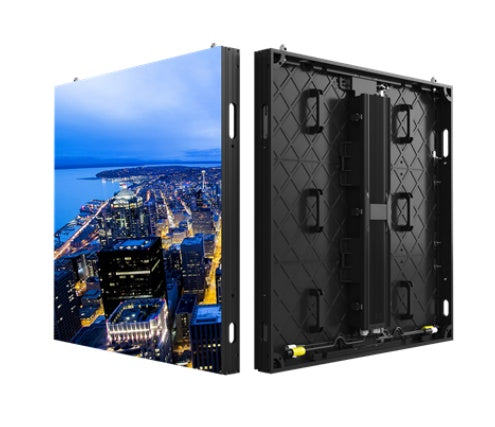

MW7857-FO-D

Name: MW7857-FO-D
Brand: Ultratech
Availability: InStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Module	Description
Pixel Pitch	P5.71
Module Resolution (W*H)	84*56
Module Dimensions (mm)	48032019.5
Cabinet	Description
Cabinet Dimensions （WHD）(mm)	96096076
Cabinet Resolution (W*H)	168*168
Material	Aluminium Profile
Processing Image	Description
Single Pixel Brightness Correction	Support
Single Pixel Color Correction	Support
Brightness （nits）	6000
Color Temperature （K）	2000 to 9500
Viewing Angle （H/V）	160°/140°
Center Distance Deviation of LED	＜3%
Brightness Uniformity	≥95%
Color Uniformity （Cx,Cy）	±0.003Cx,Cy
Contrast Ratio	5000：1
Processing performance	Description
Pixel Density （pitch/m²）	30625
Grayscale	14-16bit
Scanning Mode	7S
Drive Mode	Constant current driving
Refresh Rate （Hz）	3840
Electrical	Description
Power Supply	AC 100 to 240V
Average Power Consumption （W/m²）	200
Max. Power Consumption （W/m²）	600
General	Description
Maintenance Mode	Front/rear maintenance
Ingress Protection	IP65
Weight （Kg/pcs）	24.5
Operation Temperature	-20°C to +50°C
Operating Humidity	10% to 90%RH, non-condensing
Storage Temperature	-30°C to +60°C
Storage Humidity	10% to 95%RH, non-condensing
LED lifetime （h）	100000
