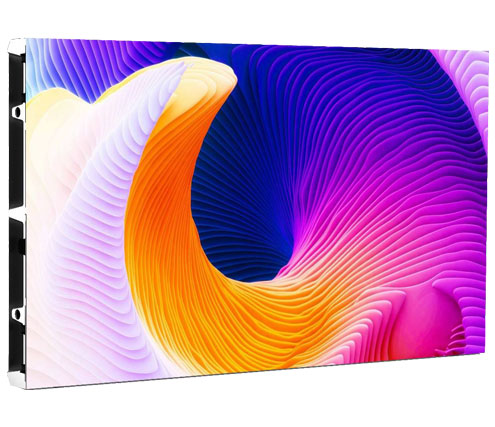

MW7815-FI-CF

Name: MW7815-FI-CF
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Module	Description
Encapsulation Method	Flip-chip COB common cathode
Pixel Pitch	P1.5
Module Resolution (W*H)	96*108
Module Dimensions (mm)	150*168.75
Cabinet	Description
Cabinet Dimensions （WHD）(mm)	600337.539.5
Cabinet Resolution (W*H)	384*216
Processing Image	Description
Single Pixel Brightness Correction	Support
Single Pixel Color Correction	Support
Brightness （nits）	600
Color Temperature （K）	6500 to 12000 adjustable
Viewing Angle （H/V）	170°/160°
Brightness Uniformity	≥97%
Color Uniformity （Cx,Cy）	±0.003Cx,Cy
Contrast Ratio	20000:1
Processing performance	Description
Pixel Density （pitch/m²）	409600
Surface Evenness （mm）	≤0.1
Grayscale	14bit
Scanning Mode	54S
Drive Mode	Constant current driving
Frame Frequency （Hz）	50/60
Refresh Rate （Hz）	≥3840
Electrical	Description
Power Supply	AC 100 to 240V
Average Power Consumption （W/m²）	100
Max. Power Consumption （W/m²）	260
General	Description
Maintenance Mode	Front maintenance
Ingress Protection	IP65
Weight （Kg/pcs）	5
Operation Temperature	-10°C to +40°C
Operating Humidity	10% to 90%RH, non-condensing
Storage Temperature	-20°C to +60°C
Storage Humidity	10% to 90%RH, non-condensing
LED lifetime （h）	100000
