V.SOL

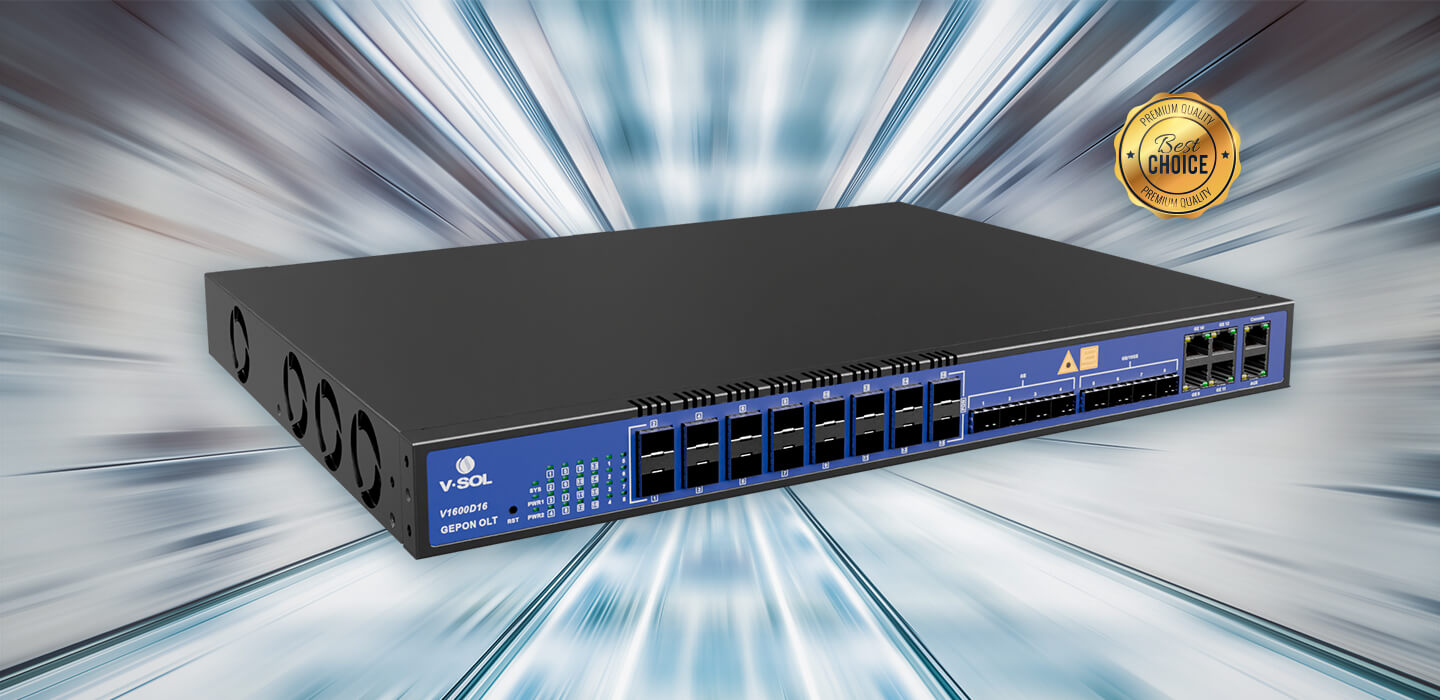

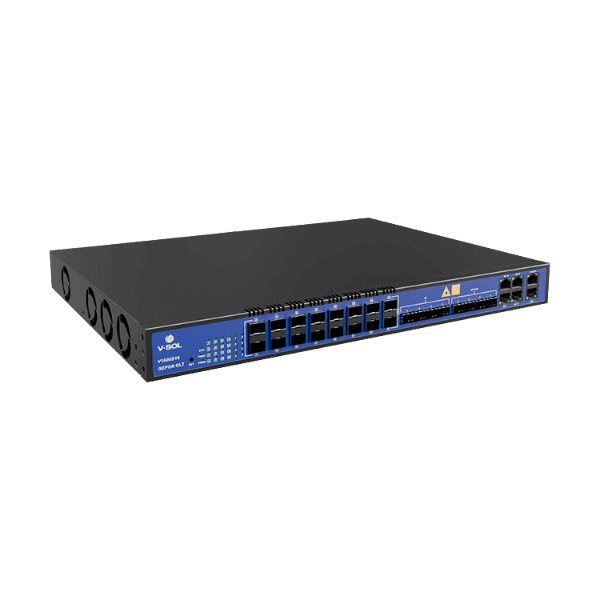

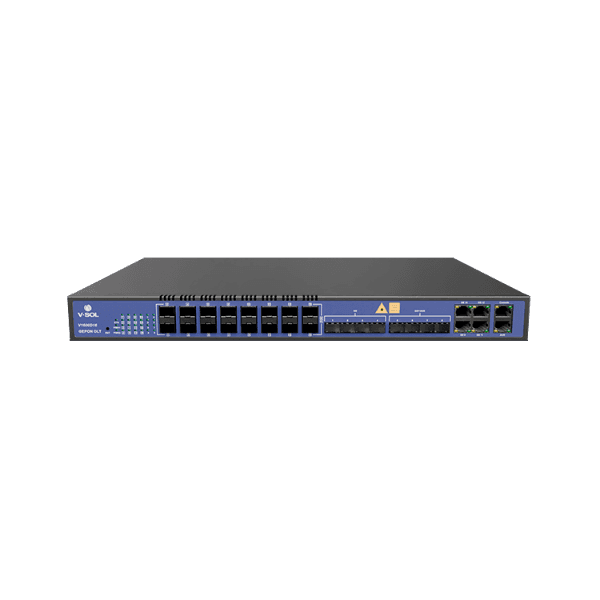

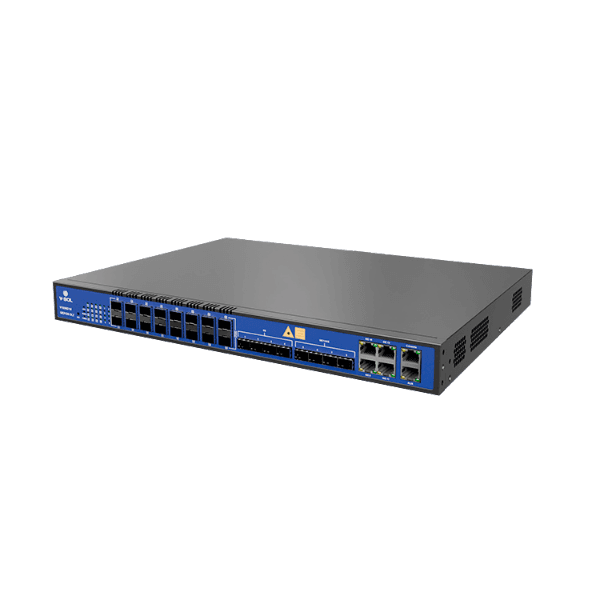

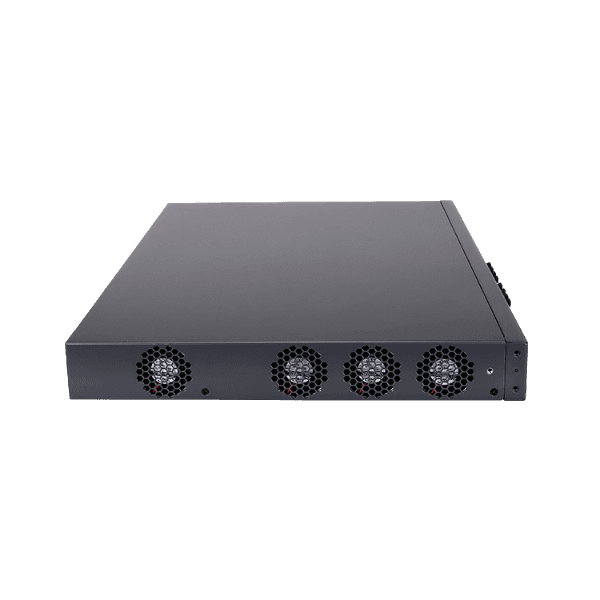

16 Port EPON OLT (V1600D16)

Model: V1600D16 , Spec: 16*EPON,4GE(RJ45)+4*GE(SFP)+4*10GE(SFP+)Dual power modules available in DC/AC ，support hot-swap
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
  • Description

Description

Product Description

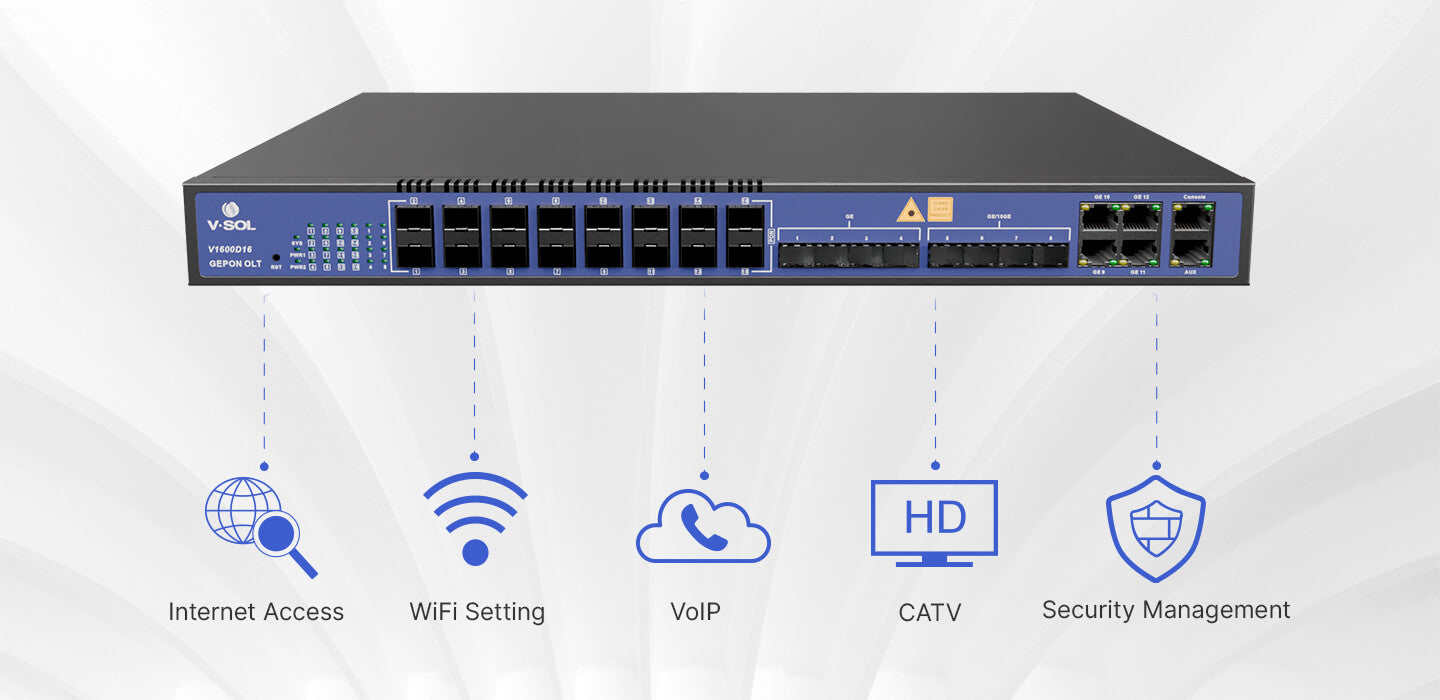

Introducing the V1600D16 16 Port EPON OLT, a high-performance optical line terminal designed for advanced networking applications. This robust device offers:
  • 16 EPON ports for connecting multiple optical network units (ONUs)
  • 4 Gigabit Ethernet RJ45 ports for copper-based connections
  • 4 Gigabit Ethernet SFP ports for flexible fiber connections
  • 4 10Gigabit Ethernet SFP+ ports for high-speed uplinks
  • Dual power modules with DC/AC support and hot-swap capability for reliable operation
  • Compact design with a weight of only 6.5kg
Product Specifications
  • Model: V1600D16
  • Type: 16 Port EPON OLT
  • Specification: 16EPON, 4GE(RJ45)+4GE(SFP)+4*10GE(SFP+)

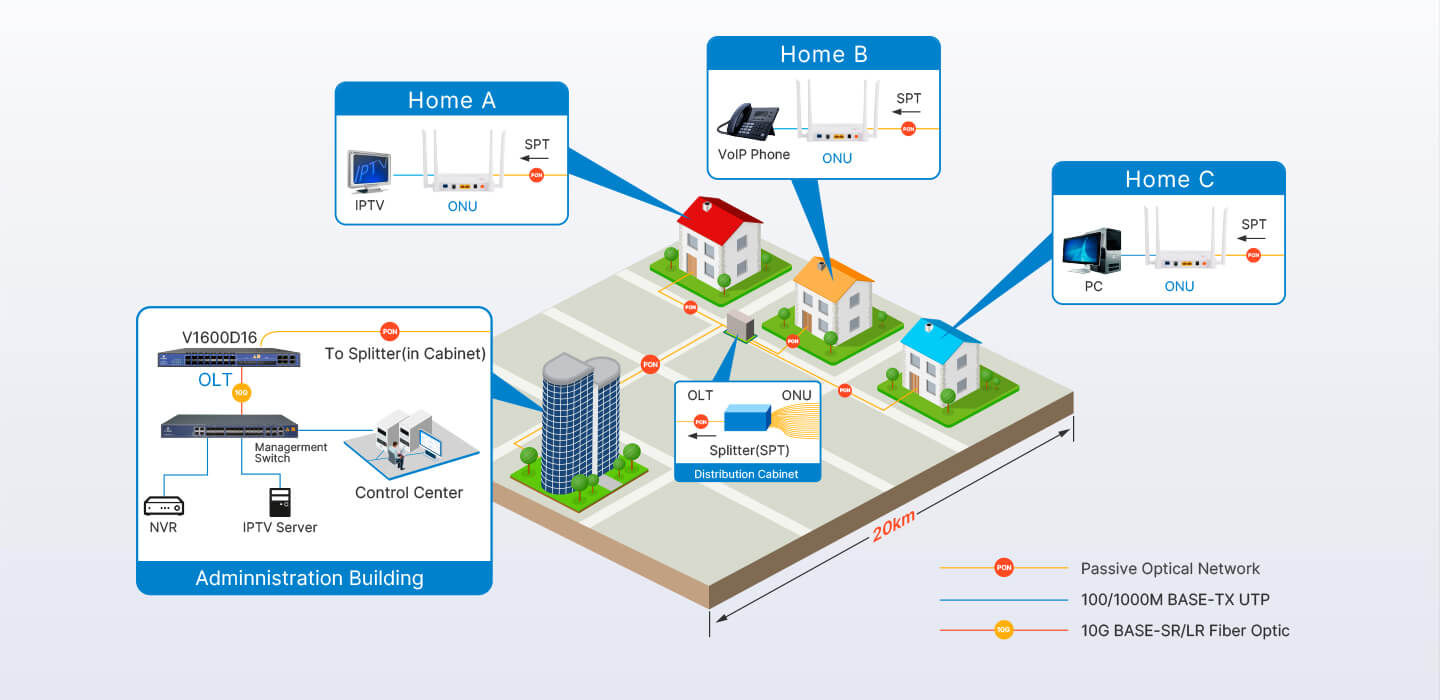

The V1600D16 16 Port EPON OLT is ideal for service providers and network administrators seeking a high-capacity, flexible, and reliable solution for their fiber-optic networks. Its advanced features and compact design make it perfect for a variety of applications, including FTTx, broadband access, and enterprise networks.

Specifications

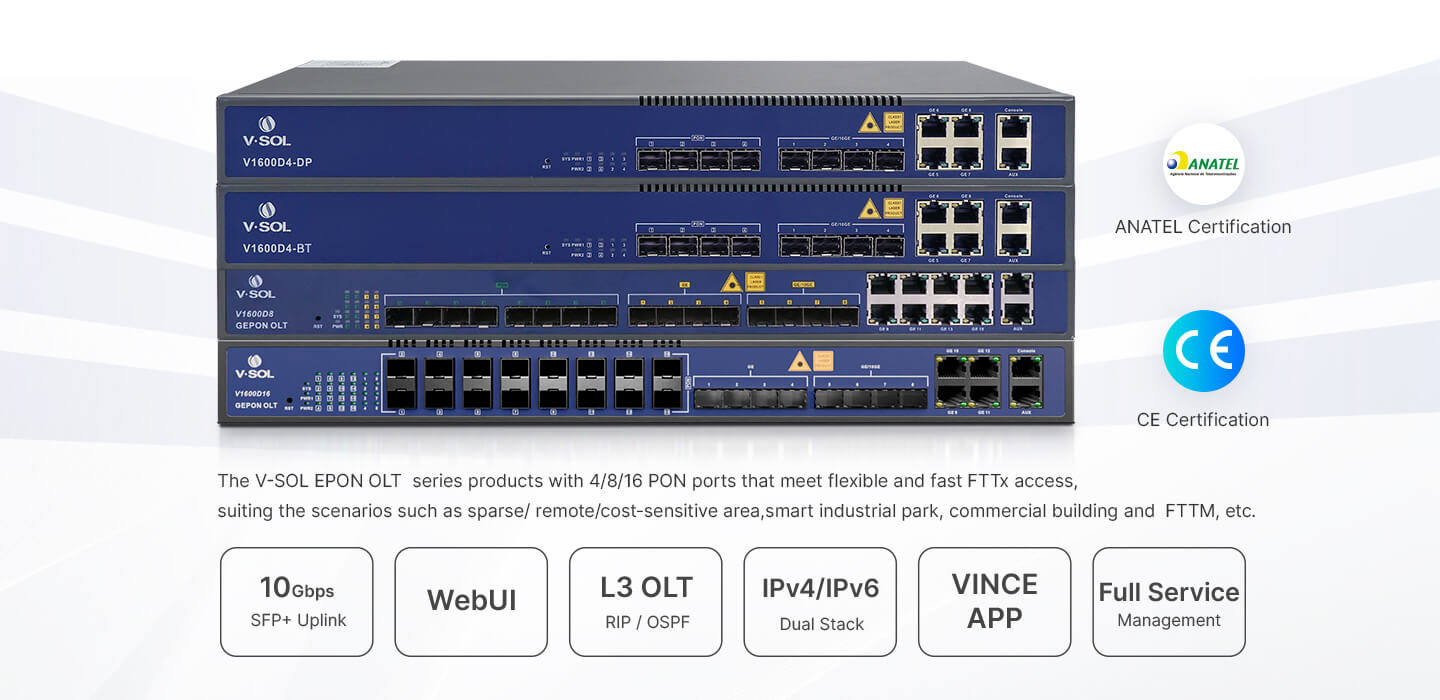

Item V1600D4-DP/BT V1600D8 V1600D16
Dimension (L*W*H) 442mm*200mm*43mm 442mm*320mm*43mm
GE/10GE
Uplink Port 		QTY 8 16 12
RJ45(GE) 4 8 4
SFP(GE)  / 4 4
SFP+(10GE) 4 4 4
EPON Port QTY 4 8 16
Physical Interface SFP Slots, Max splitting ratio ≤ 1:64
Management Ports 1*FE out-band port, 1*CONSOLE port
PON Port Specification
(PX20++ module) 		Transmission Distance 20KM
EPON port speed Upstream 1.25G, Downstream 1.25G
Wavelength TX 1490nm, RX 1310nm
Connector SC / UPC
Fiber Type 9/125μm SMF
Supported PON module level PX20, PX20+, PX20++, PX20+++
Weight
(Single AC Power) 		Net Weight 3.2kg 4.5kg 6.5kg
Gross Weight 4.3kg 6.5kg 7.8kg
Power Supply AC:100~240V, 47/63Hz, DC:-48V, BBU(option for D4-BT), Double Power Module Hot Backup
Power Consumption 35W 45W 85W
Operating
Environment 		Working Temperature 0°C ~ +50°C
Storage Temperature -40 ~ +85°C
Relative Humidity 5 ~ 90% (non-conditioning)
Management Mode EMS, TR069 VACS, WEB, SNMP, Telnet , CLI
