Ultratech

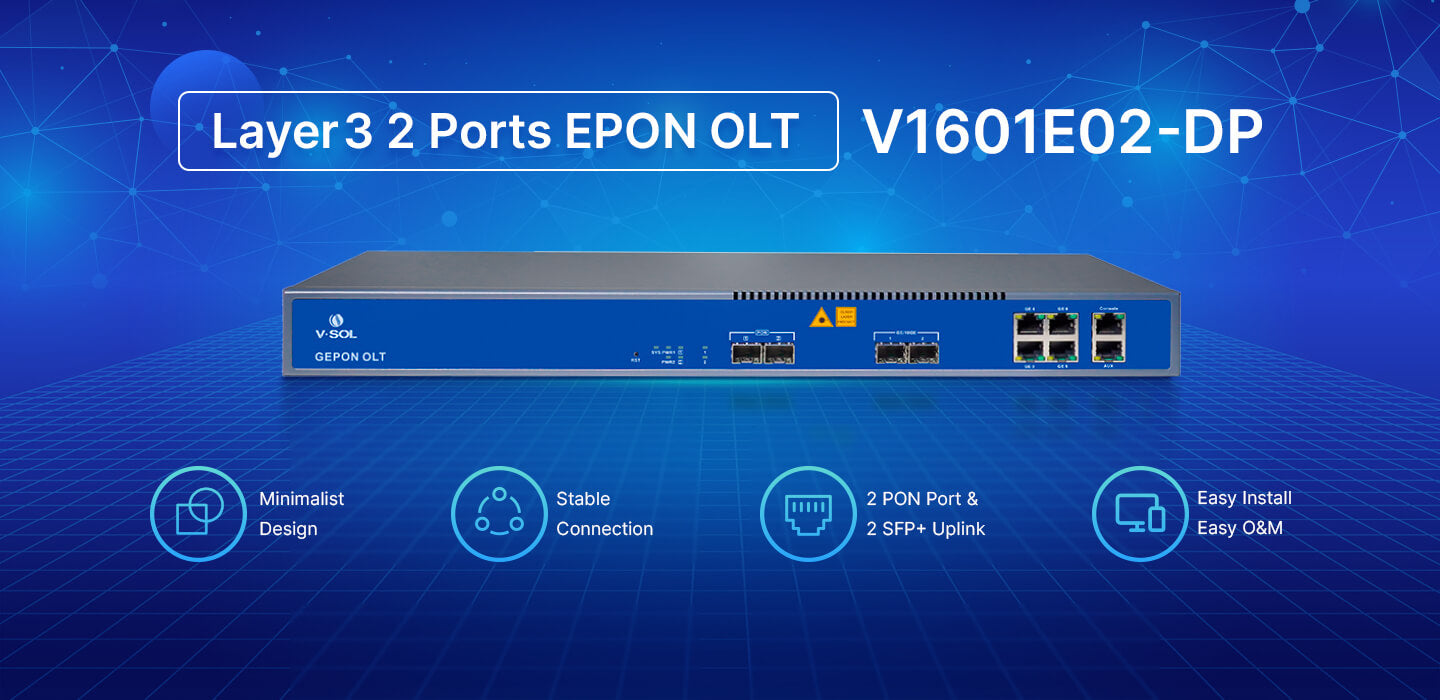

2 Port EPON OLT ( V1601E02-DP )
Modelo: V1601E02-DP
Espec: 2*EPON, 4*RJ45+2*SFP/(SFP+)
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
|
V1601E02-DP |
||
|
Chassis |
Rack |
1U 19 Inch Standard Box |
|
Uplink Port |
QTY |
6 |
|
RJ45 |
4 |
|
|
SFP/ SFP+ |
2 |
|
|
EPON Port |
QTY |
2 |
|
Physical Interface |
SFP Slots |
|
|
Supported PON module level |
PX20, PX20+, PX20++, PX20+++, PX20++++ |
|
|
Max splitting ratio |
1:64 |
|
|
Backplane Bandwidth (Gbps) |
208 |
|
|
Port Forwarding Rate (Mpps) |
38.688 |
|
|
Dimension (L x W x H) |
442mm*200mm*43.6mm |
|
|
Power Supply |
AC 100~240 V, 50/60 Hz |
|
|
DC Power Supply |
DC: -48V |
|
|
Power Consumption |
30W |
|
|
Operating Environment |
Working Temperature |
-20 ~ +60°C |
|
Storage Temperature |
-40 ~ +70°C |
|
|
Relative Humidity |
5 ~ 95% (non-condensing) |
|
