V.SOL

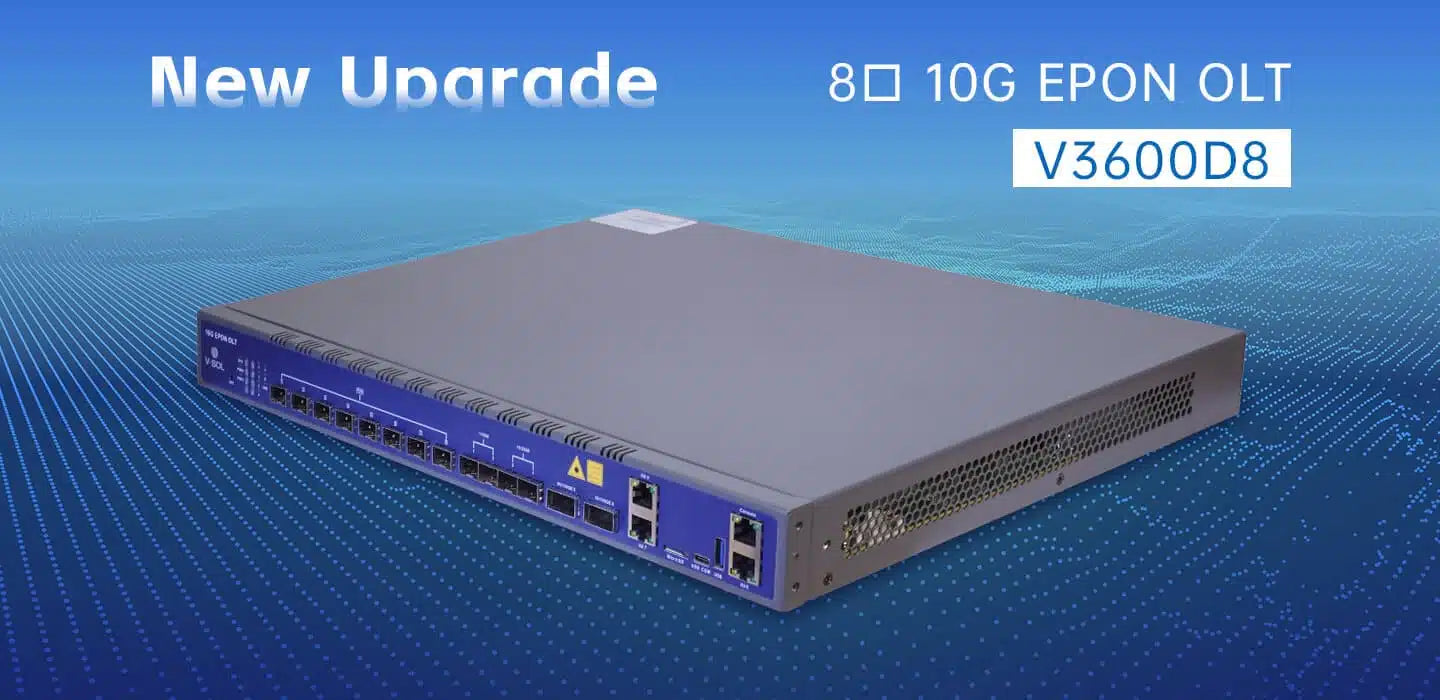

8 Port 10G EPON OLT (V3600D8)
Model: V3600D8 ,
Spec: 8*10G EPON+2*10GE(SFP+)+2*25GE(SFP28)+2*100GE(QSFP28)
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Description
8 Port 10G EPON OLT - V3600D8

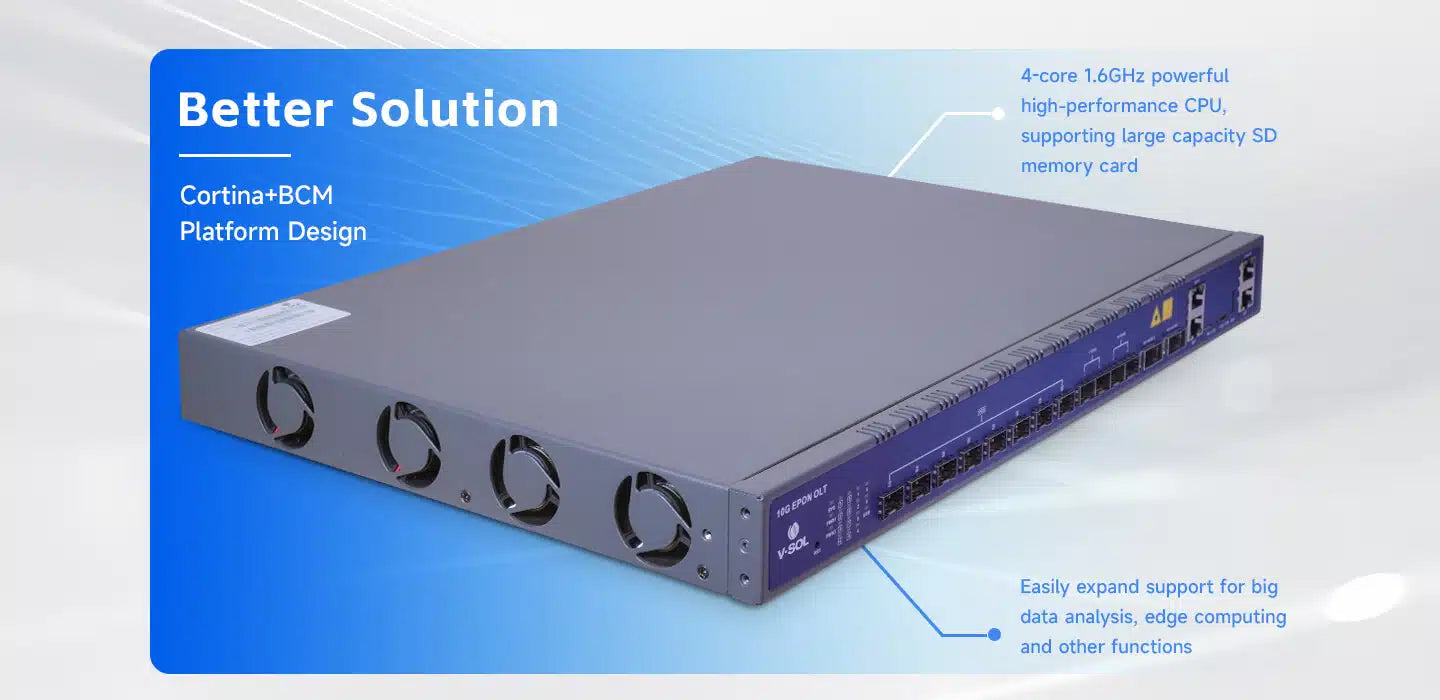

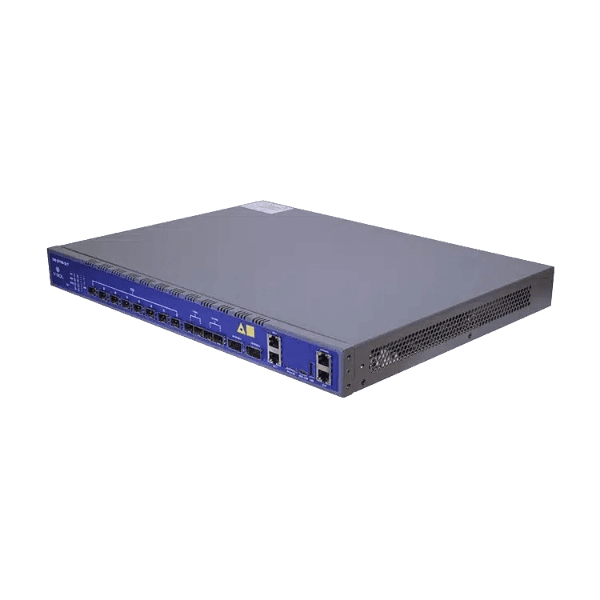

The V3600D8 is a high-performance Optical Network Terminal (OLT) designed for next-generation passive optical networks. With its 8 ports of 10G EPON, 2 ports of 10GE SFP+, 2 ports of 25GE SFP28, and 2 ports of 100GE QSFP28, this device offers fast and reliable data transmission.
Key Features:
-

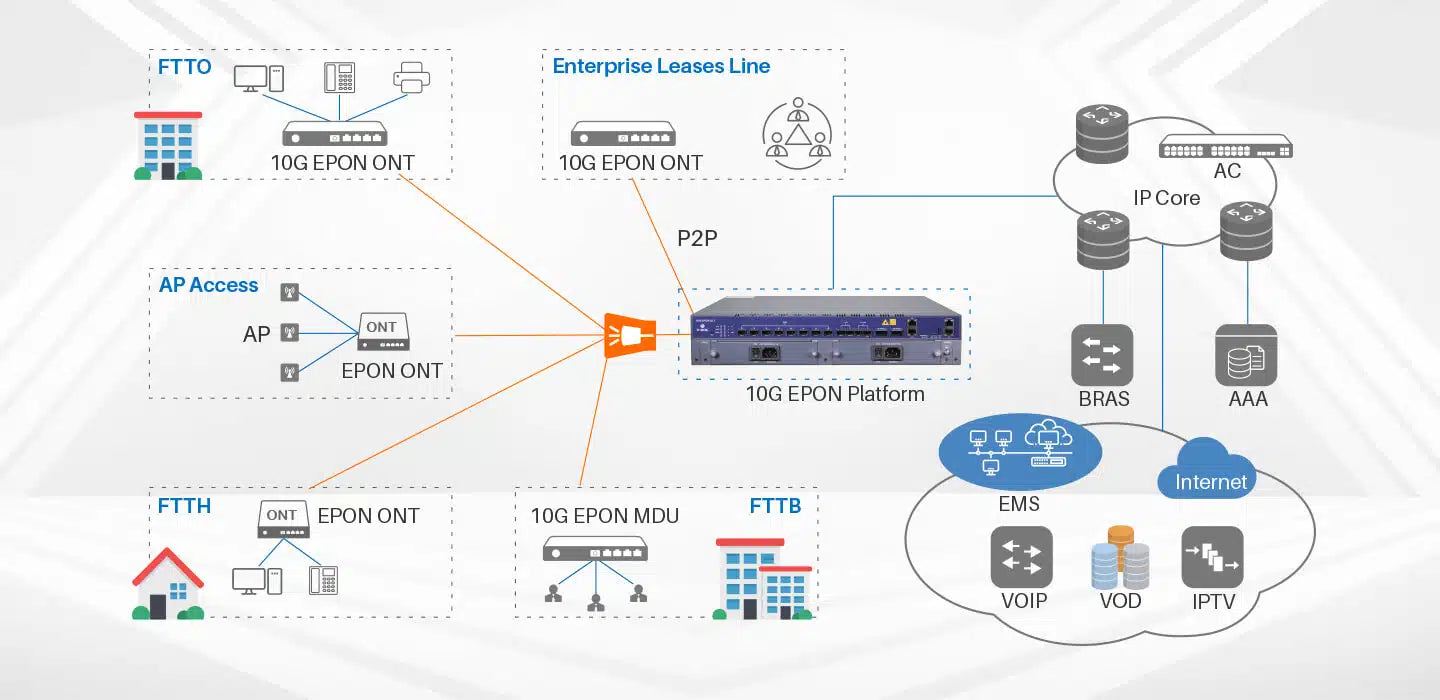

8 x 10G EPON ports for connecting to optical network units (ONUs)
-
2 x 10GE SFP+ ports for uplinking to higher-tier networks
-
2 x 25GE SFP28 ports for high-speed data transmission
-

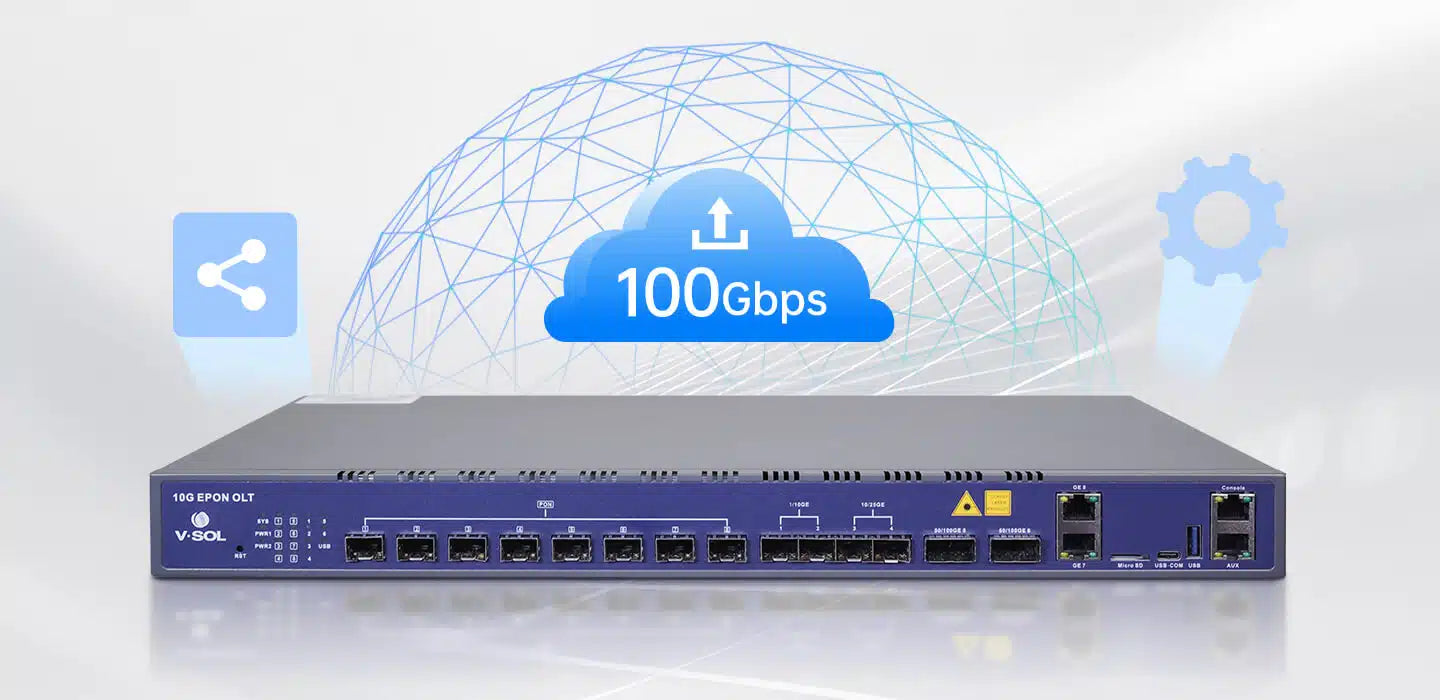

2 x 100GE QSFP28 ports for ultra-high-speed data transmission
-
Compact design with a weight of only 3.9kg
Specifications
|
V360 0D8 8 Ports 10G EPON OLT |
||
| Backplane Bandwidth (Gbps) | 880 | |
| Port Forwarding Rate (Mpps) | 523.776 | |
| Chassis | Rack | 1U 19 inch standard box |
| Uplink Port | QTY | 8 |
| GE(RJ45) | 2 | |
| 1/10GE(SFP +) | 2 | |
| 10/25GE(SFP28) | 2 | |
| 40/50/100GE(QSFP28) | 2 | |
| 10G EPON Port | QTY | 8 |
| Physical Interface | SFP+ Slots | |
| Connector Type | PR30/PRX30 | |

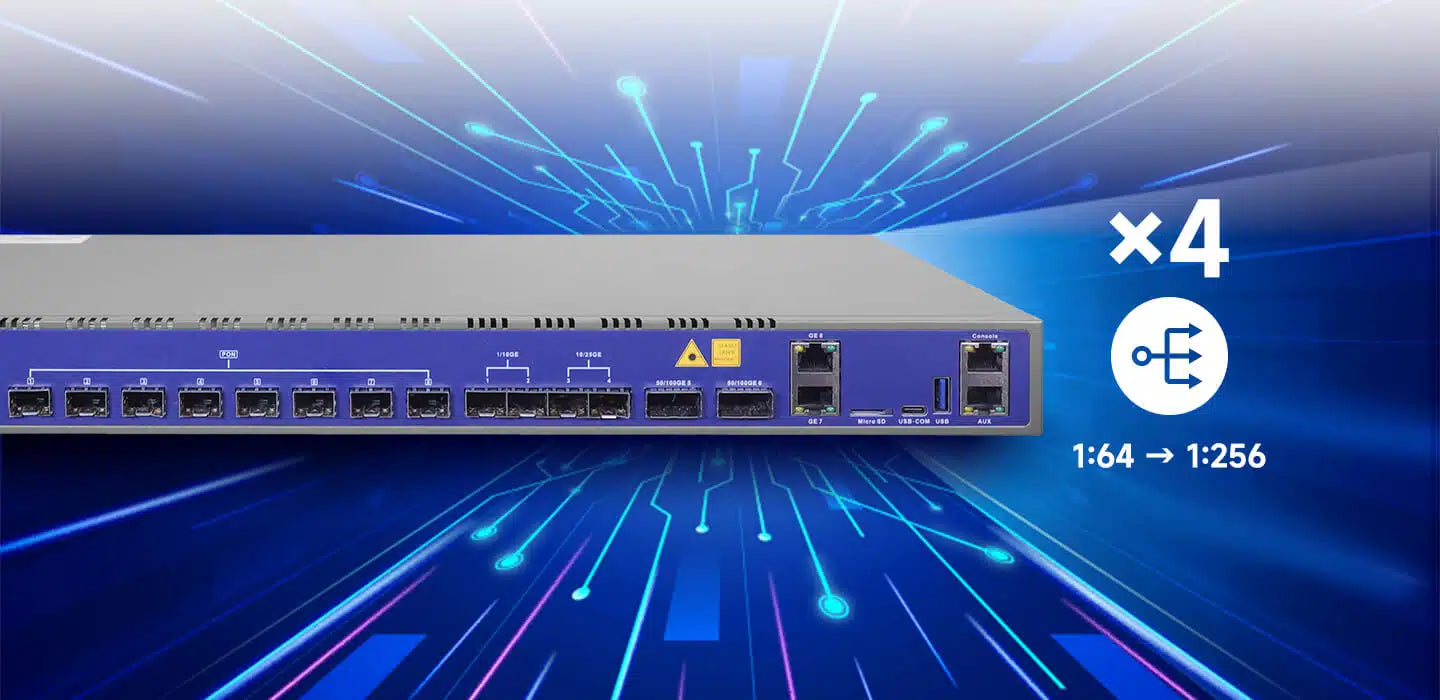

| Max splitting ratio | 1:256 | |
| Other Interface | 1*10/100/1000BASE-T out-band port,1*CONSOLE port,1*Micro SD,1*Type-C, 1*USB3.0 | |
| Dimension (LxWxH) | 442mm*369mm*46.6mm | |
| Net Weight | 3.9kg | |

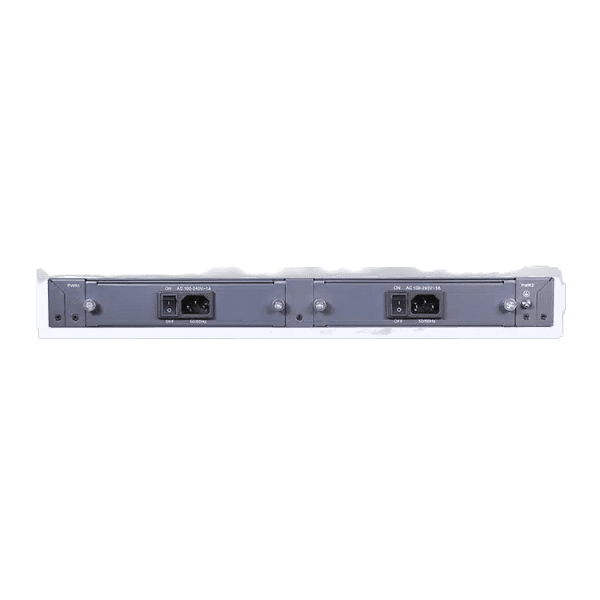

| Power Supply | AC 100~240 V, 50/60 Hz, 200W | |
| DC Power Supply | DC: -48V | |
| Power Consumption | ≤145W | |
| Operating Environment | Working Temperature | 0~+50°C |
| Storage Temperature | -40~+85°C | |
| Relative Humidity | 5~90% (non-conditioning) | |
