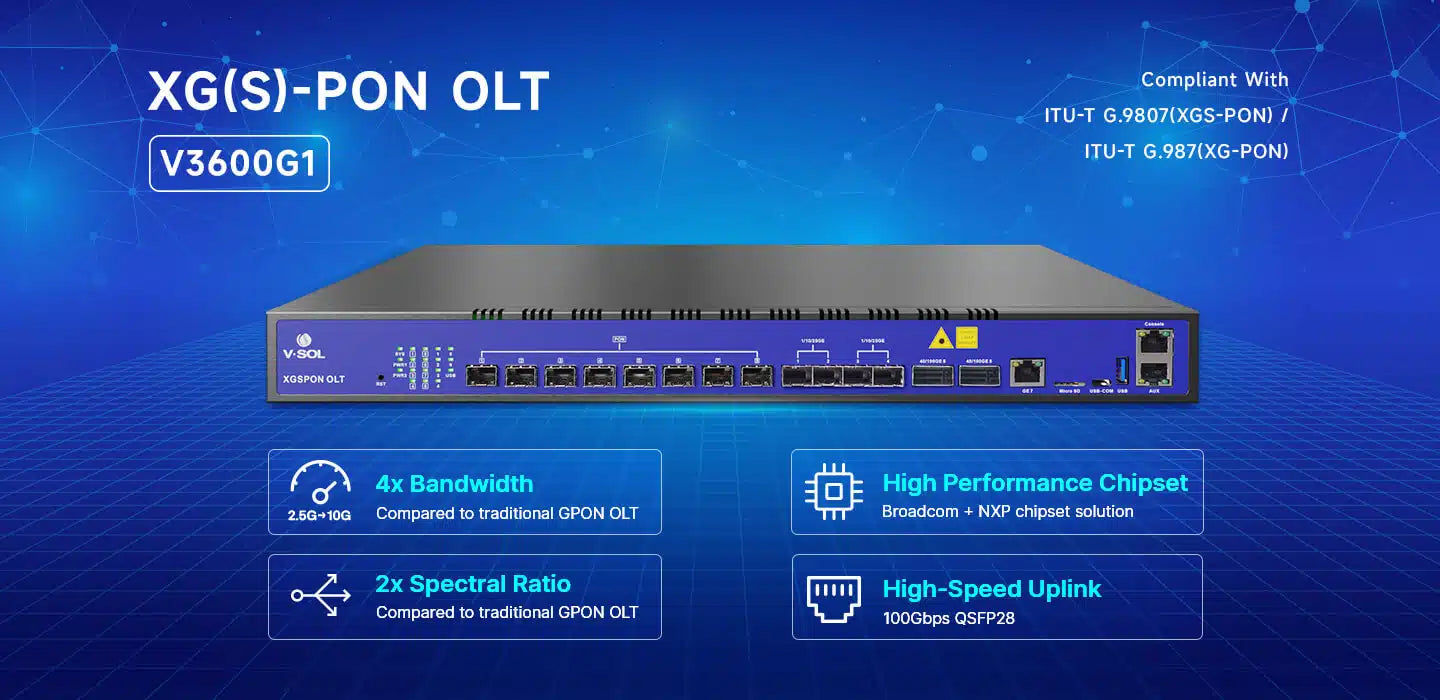

8 Port XG(S)-PON OLT (V3600G1)

V3600G1

Chassis

Rack

1U 19Inch Standard Box

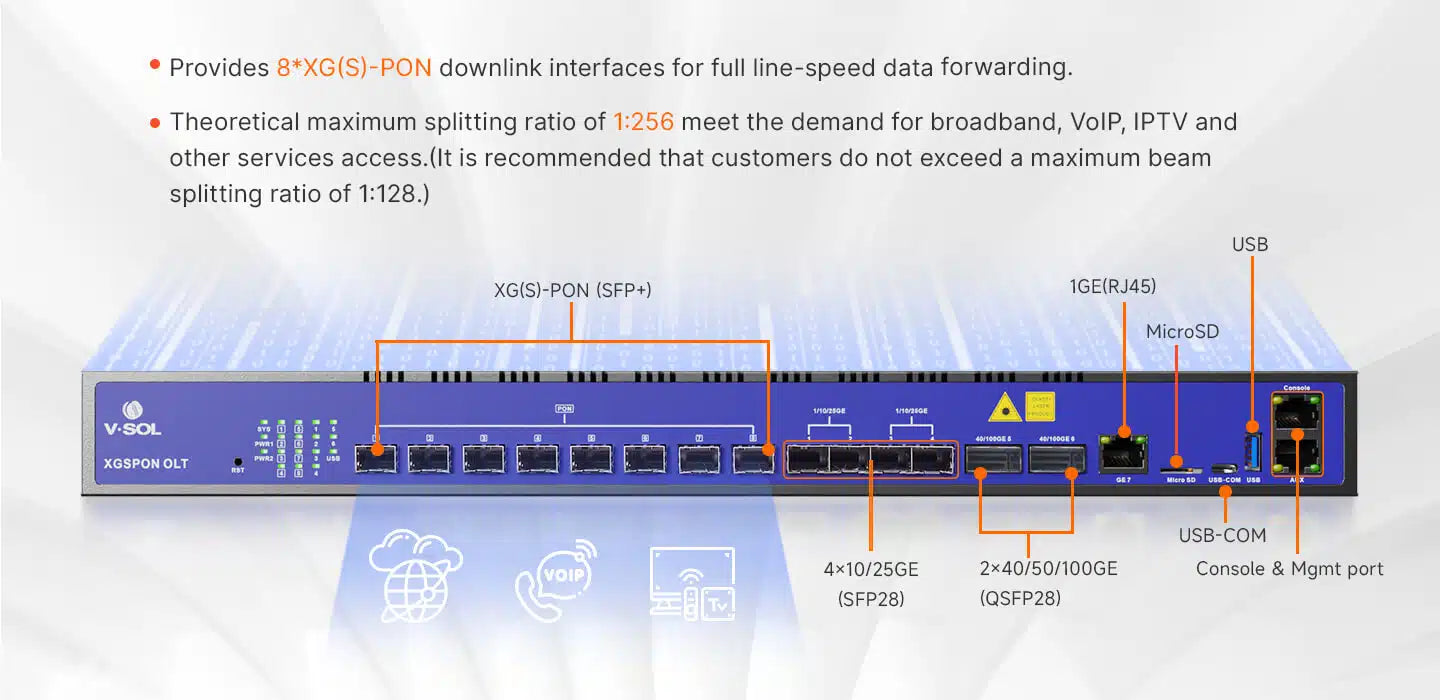

Uplink Port

QTY

8

RJ45(GE)

1

SFP28(25GE)

4

QSFP28(25GE/

50GE/100GE)

2

XG(S)-PON Port

QTY

8

Physical

Interface

SFP+ Slots

Connector

Type

N1/N2a

Max Splitting

Ratio

Theoretical maximum split ratio is 1:256. It is recommended that customers do not exceed a maximum split ratio of 1:128.

Management Ports

1*10/100/1000BASE-T out-band port, 1*CONSOLE port,1*USB2.0, 1*Type-C USB console, 1*MicroSD port

Backplane Bandwidth (Gbps)

1960

Port Forwarding Rate (Mpps)

566.928

XG(S)-PON  Port Specification

(N1/N2a module)

Transmission

Distance

20KM

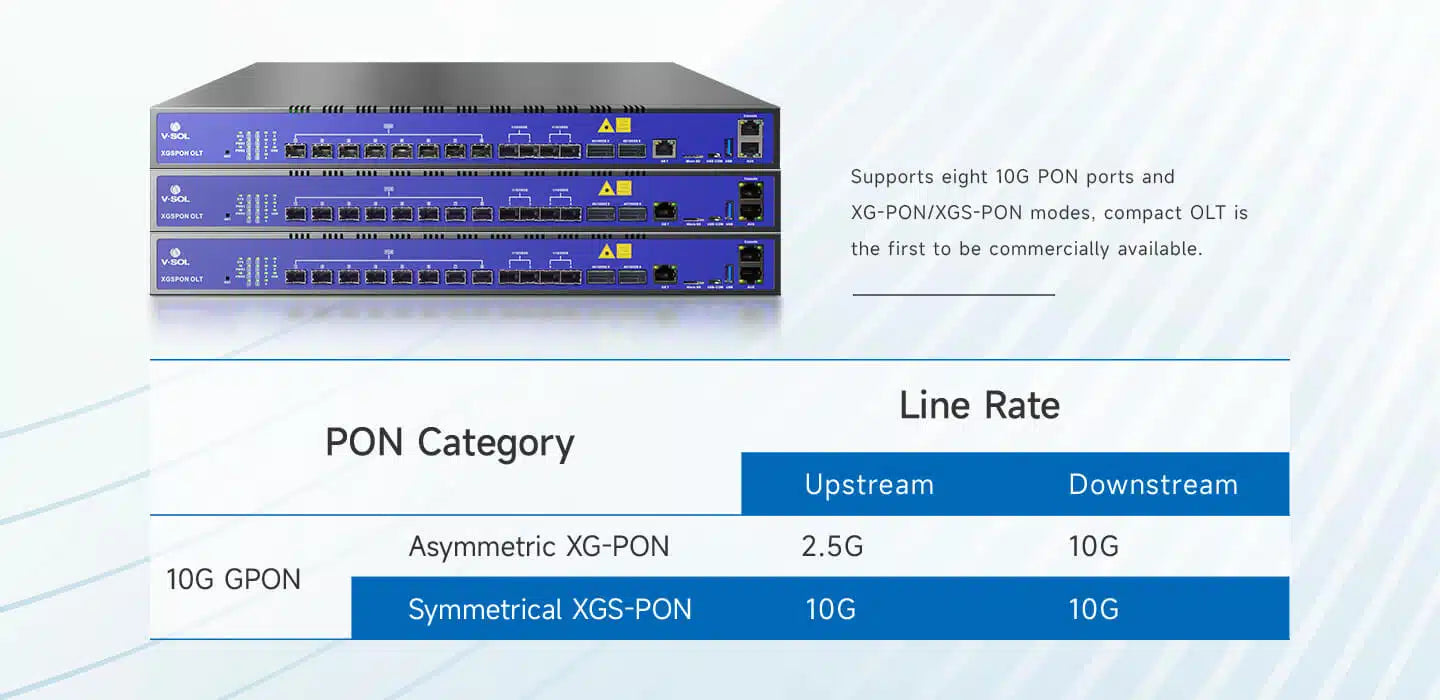

XG(S)-PON

Port Speed

XG-PON: Upstream 2.5Gbps, Downstream: 10Gbps

XGS-PON: Upstream 10Gbps, Downstream: 10Gbps

Wavelength

Upstream: 1270nm

Downstream: 1577nm

Connector

SC/UPC

Fiber Type

9/125μm SMF

TX Power

+4dBm ~ +8dBm

Rx Sensitivity

≥-29.5dBm

Saturation

Optical Power

-9dBm

Lightning

Protection

Power

Lightning Protection

6KV

Interface

Lightning Protection

4KV

Power Supply

AC

100~240 VAC, 50/60Hz

DC

-36~-75 VDC

Number of Fans

4

Management Mode

CLI(Console/Telnet/SSH)/WEB/SNMP(EMS)
