V.SOL

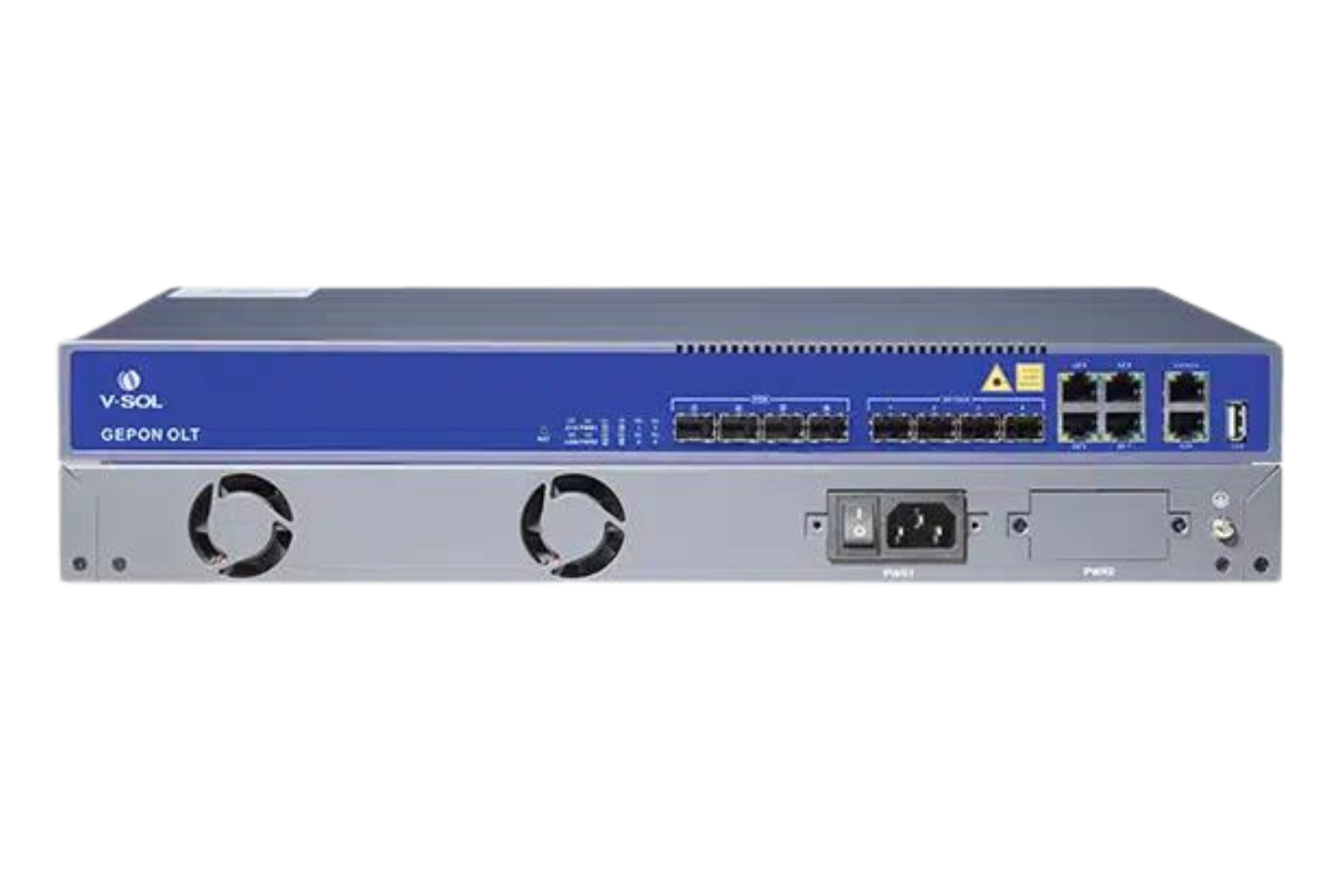

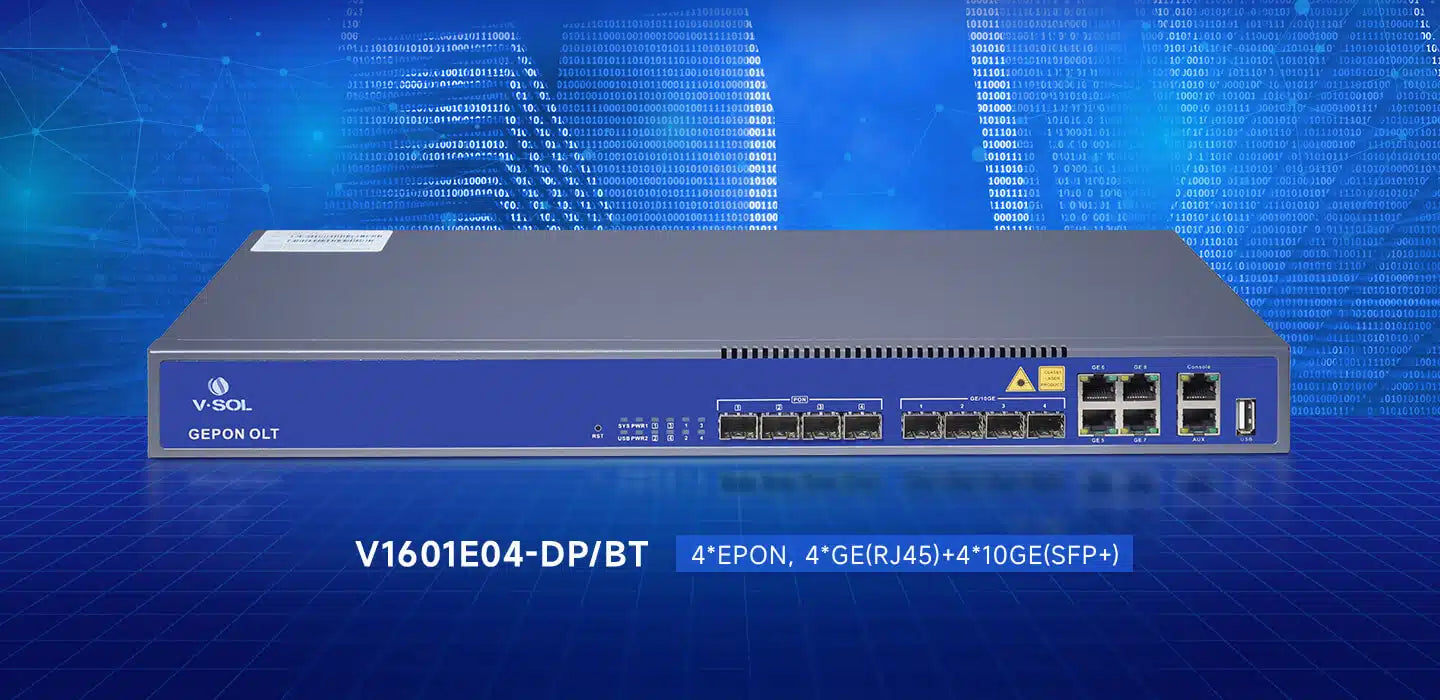

4 Port EPON OLT (V1601E04-DP/BT)
Model: V1601E04-DP/BT

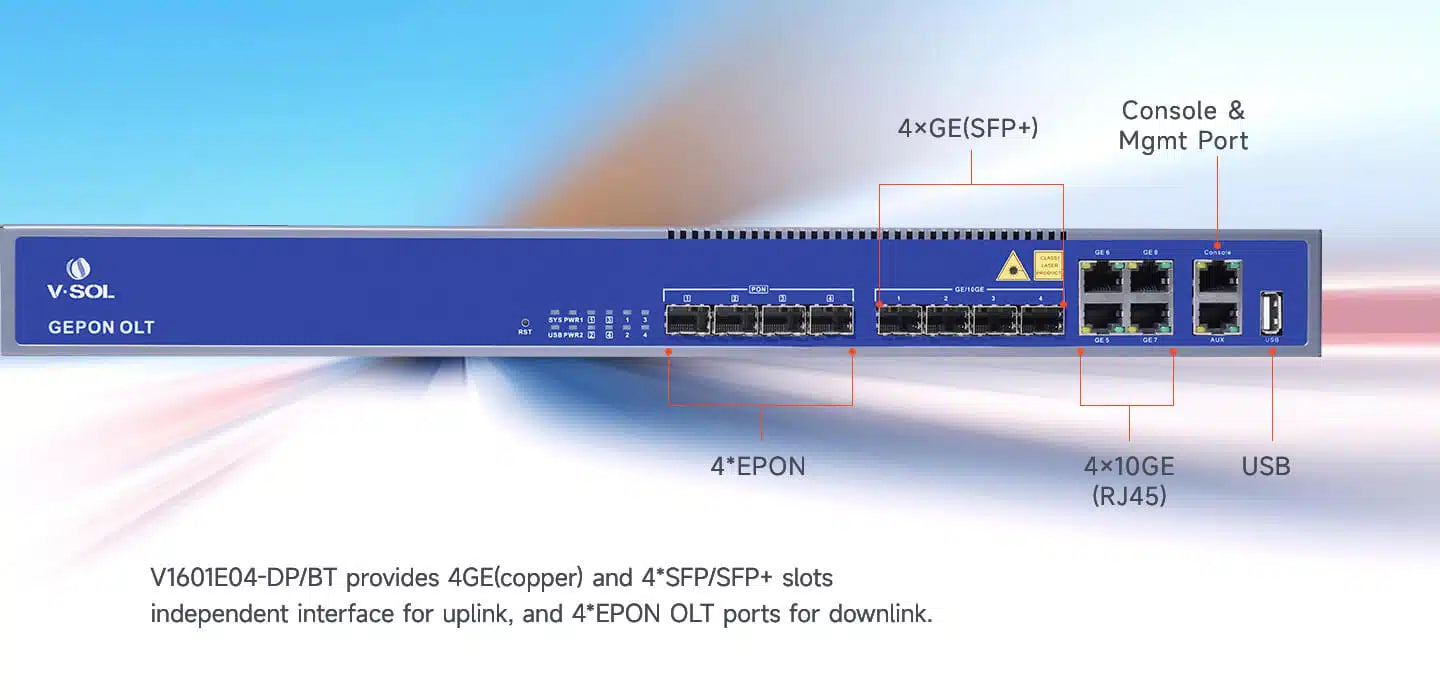

Spec: 4*EPON, 4*RJ45+4*SFP/(SFP+)
Weight: 2.705kg
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Specifications
|
V1601E04-DP/BT Layer3 4 Ports EPON OLT |
||
|
Chassis |
Rack |
1U 19 inch standard box |
|
Uplink Port |
QTY |
8 |
|
RJ45 |
4 |
|
|
SFP/SFP+ |
4 |
|
|
EPON Port |
QTY |
4 |
|
Physical Interface |
SFP Slots |
|
|
Max splitting ratio |
1:64 |
|
|
Supported PON module level |
PX20, PX20+, PX20++, PX20+++ |
|
|
Backplane Bandwidth (Gbps) |
208 |
|
|
Port Forwarding Rate(Mpps) |
71.424 |
|
|
Dimension (LxWxH) |
442mm*200mm*43.6mm |
|
|
Weight |
2.705KG |
|
|

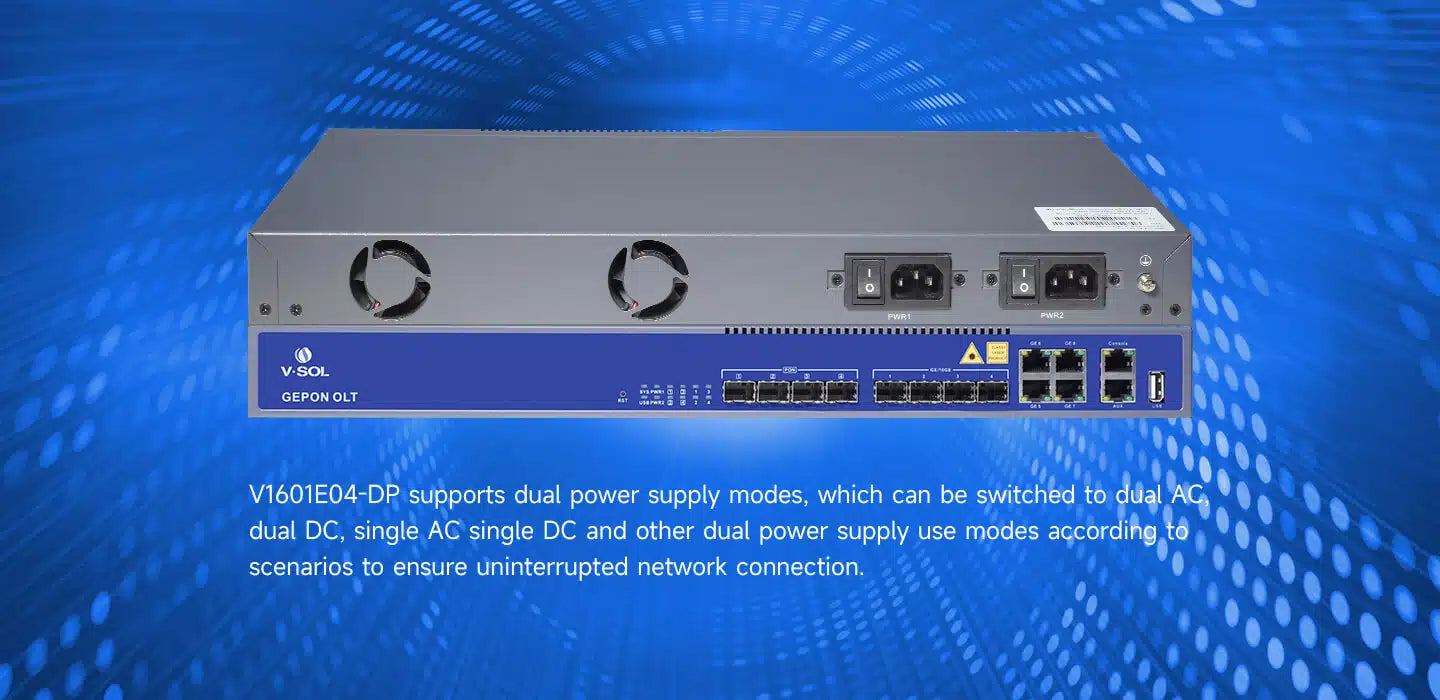

Power Supply |
AC 100~240 V, 50/60 Hz |
|
|
DC Power Supply |
DC: -48V |
|
|
Power Consumption |
30W |
|
|
Operating Environment |
Working Temperature |
-20~+60°C |
|
Storage Temperature |
-40~+70°C |
|
|
Relative Humidity |
5~95% (non-condensing) |
|
