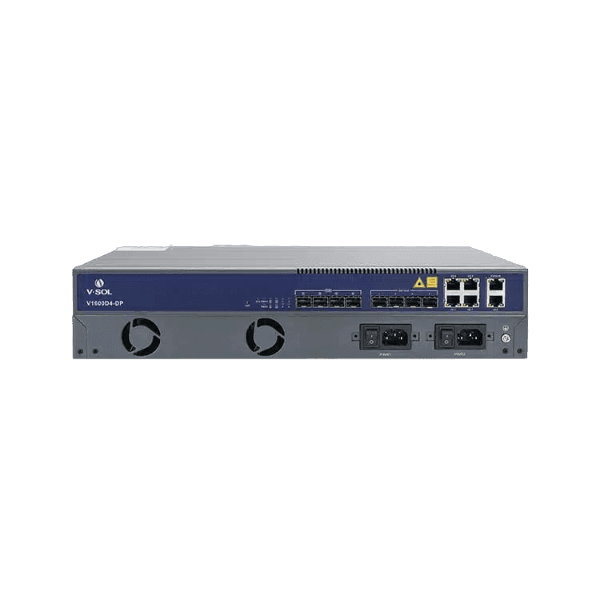

4 Port EPON OLT Model: V1600D4-DP/BT Spec: 4*EPON,4GE(RJ45)+4*10GE(SFP+) Dual power modules available in DC/AC Weight: 3.2kg

V.SOL

4 Port EPON OLT (V1600D4-DP/BT)

Name: 4 Port EPON OLT (V1600D4-DP/BT)
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V1600D4-DP/BT , Spec: 4*EPON,4GE(RJ45)+4*10GE(SFP+) Dual power modules available in DC/AC

Contact Now

DataSheet PDF

Description
Reviews

Specifications

4 Port EPON OLT

Model: V1600D4-DP/BT

Specifications:

Ports:

4 x EPON (Ethernet Passive Optical Network) ports
4 x GE (Gigabit Ethernet) RJ45 ports
4 x 10GE (10 Gigabit Ethernet) SFP+ (Small Form-Factor Pluggable) ports

Power:

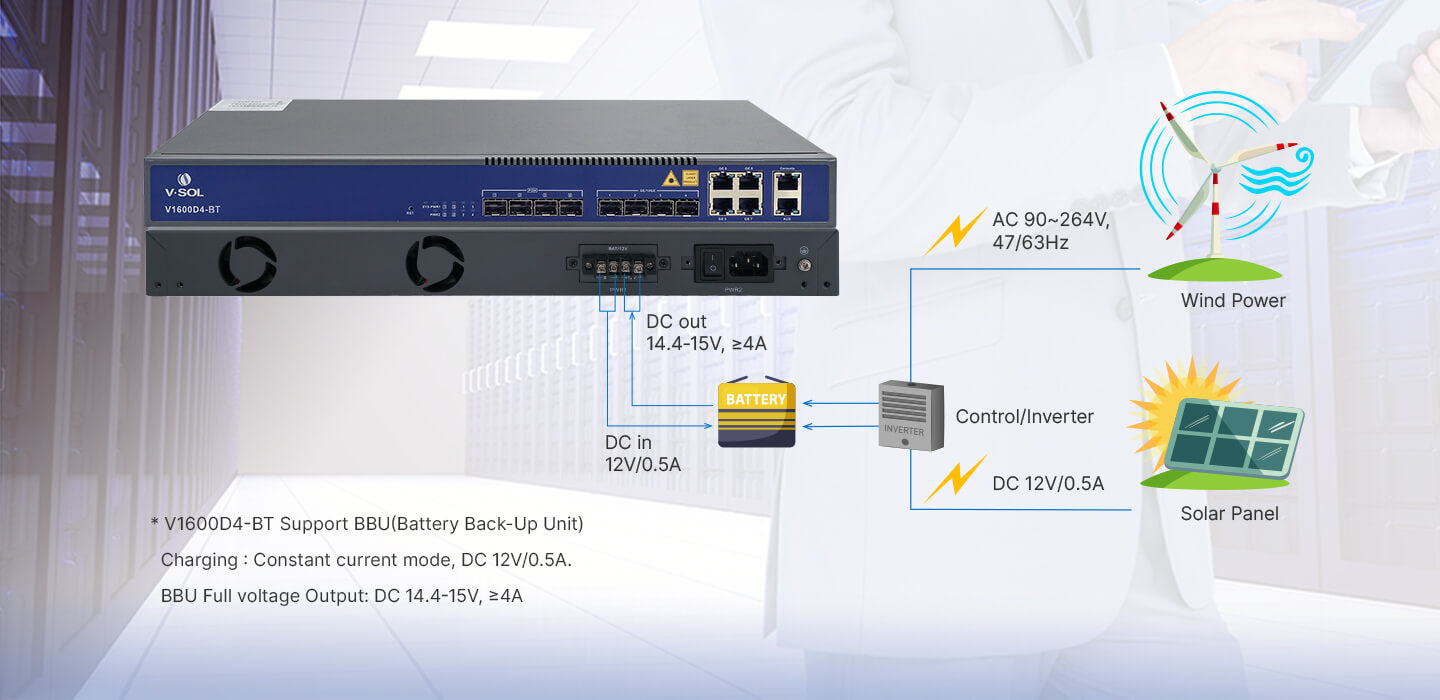

Dual power modules available
Supports both DC and AC power inputs

The V1600D4-DP/BT is a high-performance Optical Line Terminal (OLT) designed for fiber-optic networks, offering robust and reliable connectivity for broadband services.

Item		V1600G0-B	V1600G1-B	V1600G2-B
Dimension (LWH)		442mm220mm43.6mm	442mm320mm43.6mm
GE/10GE Uplink Port	QTY	4	8	8
	RJ45(GE)	2	4	4
	SFP(GE)	/	2	/
	SFP+(10GE)	2	2	4
GPON Port	QTY	4	8	16
	Physical Interface	SFP Slots, Max splitting ratio ≤ 1:128
Management Ports		1FE out-band port, 1CONSOLE port, 1USB2.0, 1Type-C USB(For console, G2-B)
PON Port Specification (Class C+++ Module)	Transmission Distance	20KM
	GPON port speed	Upstream 1.244Gbps, Downstream 2.488Gbps
	Wavelength	TX 1490nm, RX 1310nm
	Connector	SC / UPC
	Fiber Type	9/125μm SMF
	Supported PON module level	Class B+, C, C+, C++, C+++
Weight (Single AC Power)	Net Weight	2.95kg	4.05kg	4.80kg
	Gross Weight	4.15kg	5.65kg	6.40kg
Power Supply		AC:100～240V, 47/63Hz or/and DC:-48V, Double Power Module Hot Backup
Power Consumption		35W	45W	85W
Operating Environment	Working Temperature	0°C ~ +50°C
	Storage Temperature	-40 ~ +85°C
	Relative Humidity	5 ~ 90% (non-conditioning)
Management Mode		EMS, WEB, SNMP, Telnet , CLI
