8 Port XG(S)-PON OLT (V3600-G1)

Name: 8 Port XG(S)-PON OLT (V3600-G1)
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V3600G1 , Spec: 8*XG(S)-PON, 1*GE(RJ45)+ 4*25GE(SFP28)+2*100GE(QSFP28)

Contact Now

DataSheet PDF

Description
Reviews

Description

8 Port XG(S)-PON OLT - V3600G1

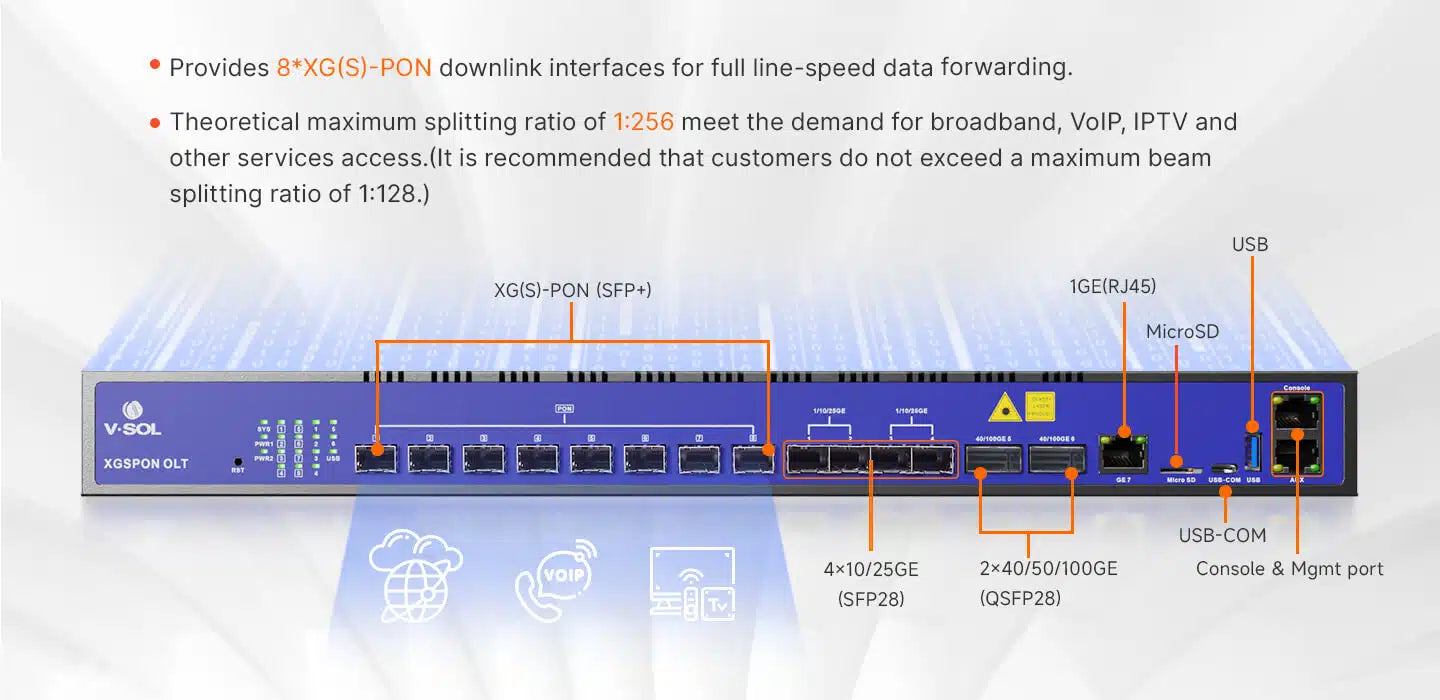

The V3600G1 is a high-performance Optical Network Terminal (OLT) designed for next-generation passive optical networks. With its 8 ports of XG(S)-PON, 1 port of Gigabit Ethernet (RJ45), 4 ports of 25Gigabit Ethernet (SFP28), and 2 ports of 100Gigabit Ethernet (QSFP28), this device offers fast and reliable data transmission.

Key Features:

8 x XG(S)-PON ports for connecting to optical network units (ONUs)
1 x Gigabit Ethernet (RJ45) port for legacy network connections
4 x 25Gigabit Ethernet (SFP28) ports for high-speed network uplinks
2 x 100Gigabit Ethernet (QSFP28) ports for ultra-high-speed network uplinks
Supports large-scale FTTx deployments and 5G networks

V3600G1
Chassis	Rack	1U 19Inch Standard Box
Uplink Port	QTY	8
	RJ45(GE)	1
	SFP28(25GE)	4
	QSFP28(25GE/ 50GE/100GE)	2
XG(S)-PON Port	QTY	8
	Physical Interface	SFP+ Slots
	Connector Type	N1/N2a
	Max Splitting Ratio	Theoretical maximum split ratio is 1:256. It is recommended that customers do not exceed a maximum split ratio of 1:128.
Management Ports		110/100/1000BASE-T out-band port, 1CONSOLE port,1USB2.0, 1Type-C USB console, 1*MicroSD port
Backplane Bandwidth (Gbps)		1960
Port Forwarding Rate (Mpps)		566.928
XG(S)-PON Port Specification (N1/N2a module)	Transmission Distance	20KM
	XG(S)-PON Port Speed	XG-PON: Upstream 2.5Gbps, Downstream: 10Gbps XGS-PON: Upstream 10Gbps, Downstream: 10Gbps
	Wavelength	Upstream: 1270nm Downstream: 1577nm
	Connector	SC/UPC
	Fiber Type	9/125μm SMF
	TX Power	+4dBm ~ +8dBm
	Rx Sensitivity	≥-29.5dBm
	Saturation Optical Power	-9dBm
Lightning Protection	Power Lightning Protection	6KV
Lightning Protection	Interface Lightning Protection	4KV
Power Supply	AC	90-264 VAC, 47/63Hz
Power Supply	DC	-48 VDC
Number of Fans		4
Management Mode		CLI(Console/Telnet/SSH)/WEB/SNMP(EMS)
