V.SOL

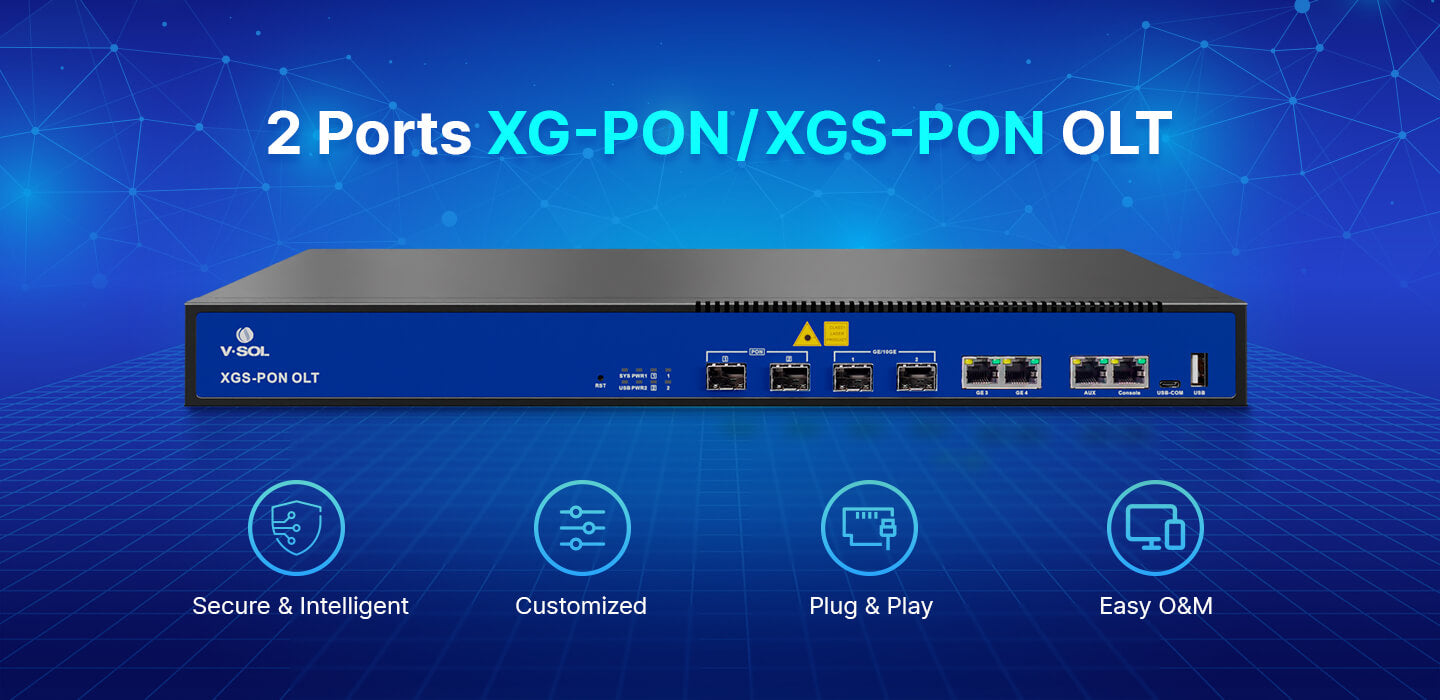

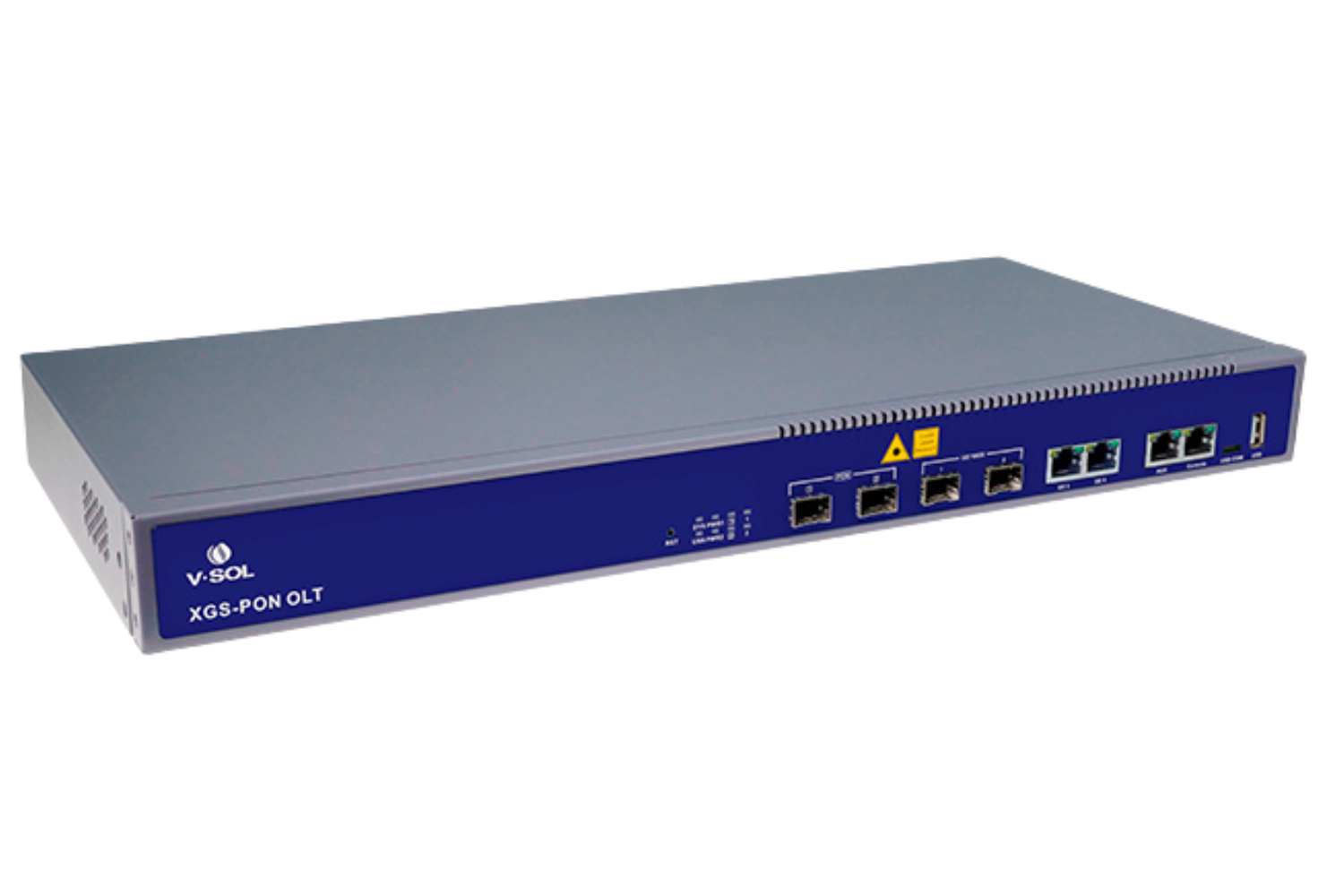

2 Port XG/XGS-PON OLT ( V1600XG02 )
Model: V1600XG02
Spec: 2*XG-PON or XGS-PON, 2*GE(RJ45)+2*GE(SFP)/10GE(SFP+)
Weight: 2.485kg
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Specifications
|
V1600XG02 |
||
|
Chassis |
Rack |
1U 19Inch Standard Box |
|
Uplink Port |
QTY |
4 |
|
RJ45(GE) |
2 |
|
|
SFP(GE) / SFP+(10GE) |
2 |
|
|
XG-PON/ XGS-PON Port |
QTY |
2 |
|
Physical Interface |
SFP+ Slots |
|
|
Supported PON module level |
Class N1/N2 |
|
|
Optical splitting ratio |
1:256 (Maximum), 1:128 (Recommended) |
|
|
Management Ports |
1*10/100/1000M BASE-T out- band LAN port, 1*CONSOLE port, 1*USB-COM, 1*USB2.0 |
|
|
Backplane Bandwidth (Gbps) |
208 |
|
|
Port Forwarding Rate (Mpps) |
124.992 |
|
|
PON Port Specification |
Transmission Distance |
20KM |
|
XG-PON port speed |
Upstream 2.488Gbps, Downstream 9.953Gbps |
|
|
XGS-PON port speed |
Upstream 9.953Gbps, Downstream 9.953Gbps |
|
|
Wavelength |
XG-PON, XGS-PON: TX 1577nm, RX 1270nm |
|
|
Connector |
SC/UPC |
|
|
Fiber Type |
9/125μm SMF |
|
|
Management Mode |
WEB, Telnet, CLI |
|
