V.SOL

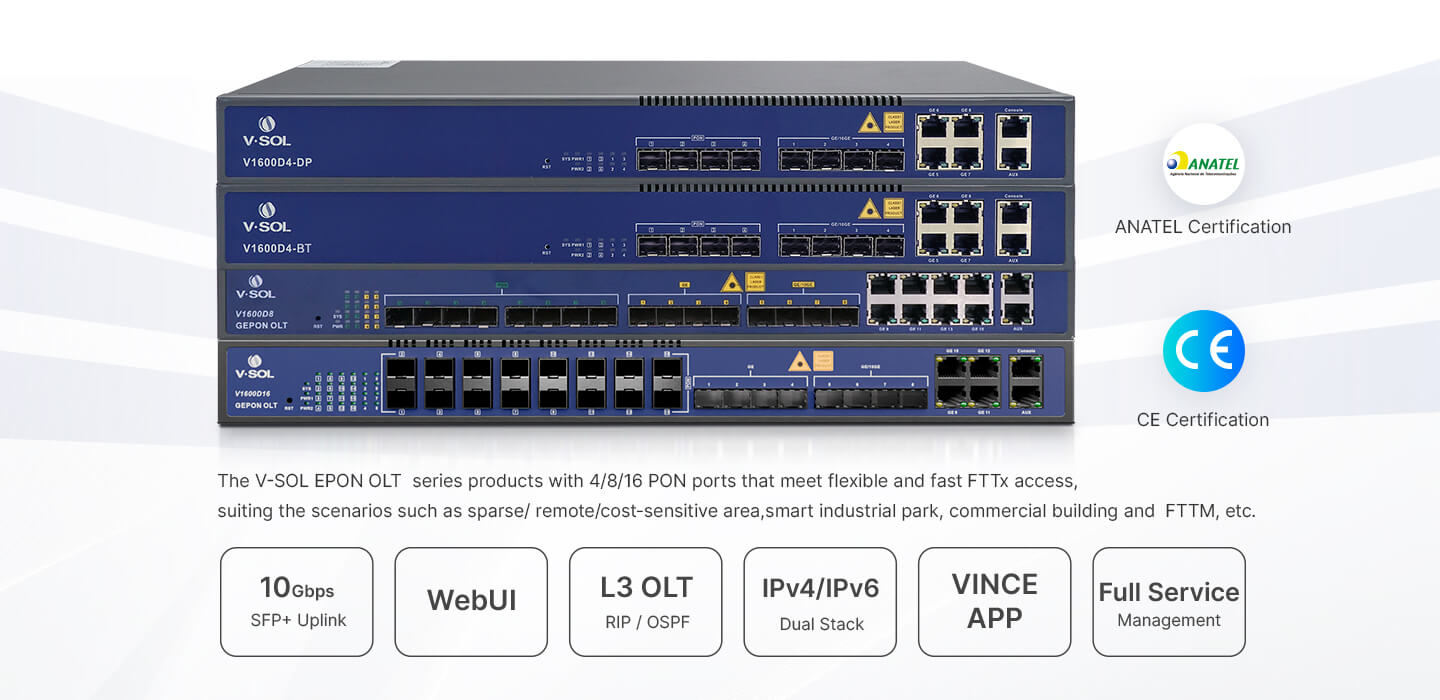

4 Port EPON OLT (V1600D4-DP/BT)
Model: V1600D4-DP/BT
Spec: 4*EPON,4GE(RJ45)+4*10GE(SFP+) Dual power modules available in DC/AC
Weight: 3.2kg
Available:
Only 20 items in stock
20 items in stock
In stock
Out of stock
Back in stock
Specifications
| Item | V1600D4-DP/BT | V1600D8 | V1600D16 | |||
| Dimension (L*W*H) | 442mm*200mm*43mm | 442mm*320mm*43mm | ||||
|
GE/10GE Uplink Port |
QTY | 8 | 16 | 12 | ||
| RJ45(GE) | 4 | 8 | 4 | |||
| SFP(GE) | / | 4 | 4 | |||
| SFP+(10GE) | 4 | 4 | 4 | |||
| EPON Port | QTY | 4 | 8 | 16 | ||
| Physical Interface | SFP Slots, Max splitting ratio ≤ 1:64 | |||||
| Management Ports | 1*FE out-band port, 1*CONSOLE port | |||||
|
PON Port Specification (PX20++ module) |
Transmission Distance | 20KM | ||||
| EPON port speed | Upstream 1.25G, Downstream 1.25G | |||||
| Wavelength | TX 1490nm, RX 1310nm | |||||
| Connector | SC / UPC | |||||
| Fiber Type | 9/125μm SMF | |||||
| Supported PON module level | PX20, PX20+, PX20++, PX20+++ | |||||
|
Weight (Single AC Power) |
Net Weight | 3.2kg | 4.5kg | 6.5kg | ||
| Gross Weight | 4.3kg | 6.5kg | 7.8kg | |||

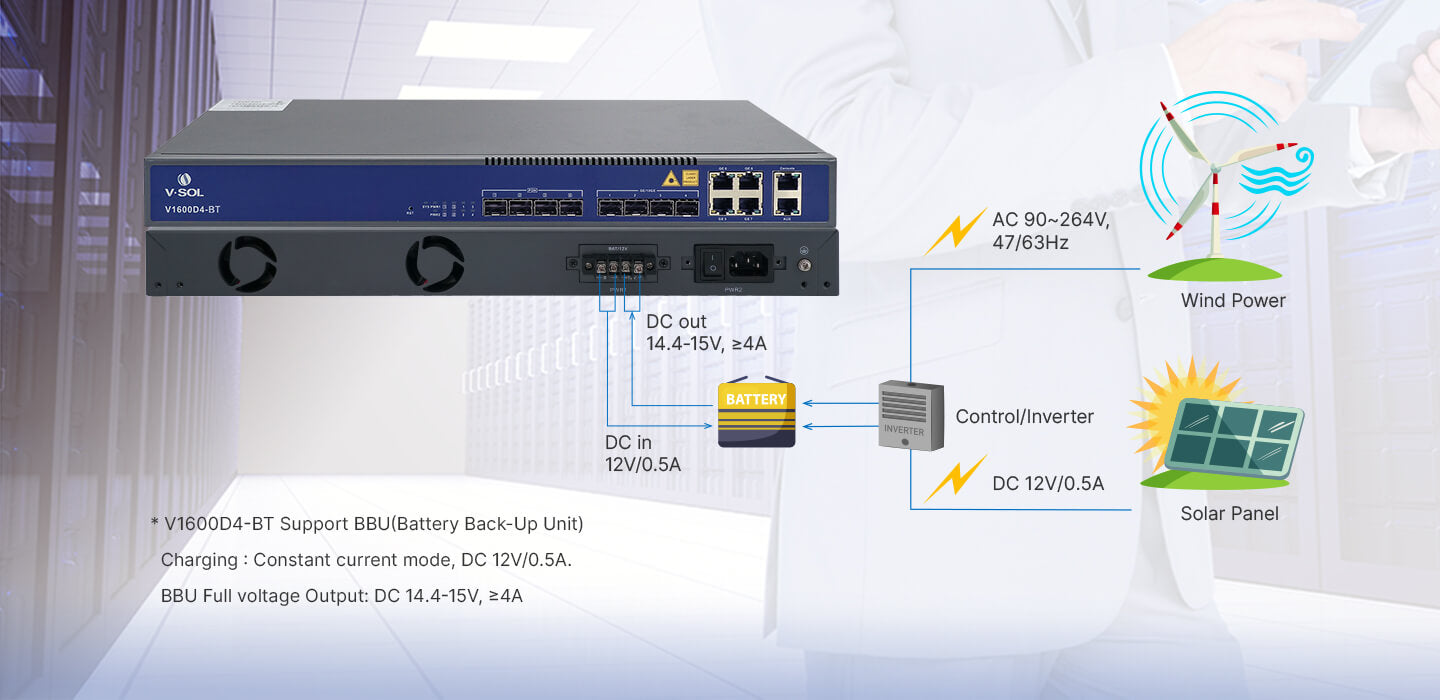

| Power Supply | AC:100~240V, 47/63Hz, DC:-48V, BBU(option for D4-BT), Double Power Module Hot Backup | |||||
| Power Consumption | 35W | 45W | 85W | |||
|
Operating Environment |
Working Temperature | -20°C ~ +60°C | ||||
| Storage Temperature | -40 ~ +70°C | |||||
| Relative Humidity | 5 ~ 95% (non-conditioning) | |||||
| Management Mode | EMS, TR069 VACS, WEB, SNMP, Telnet , CLI | |||||
