V.SOL

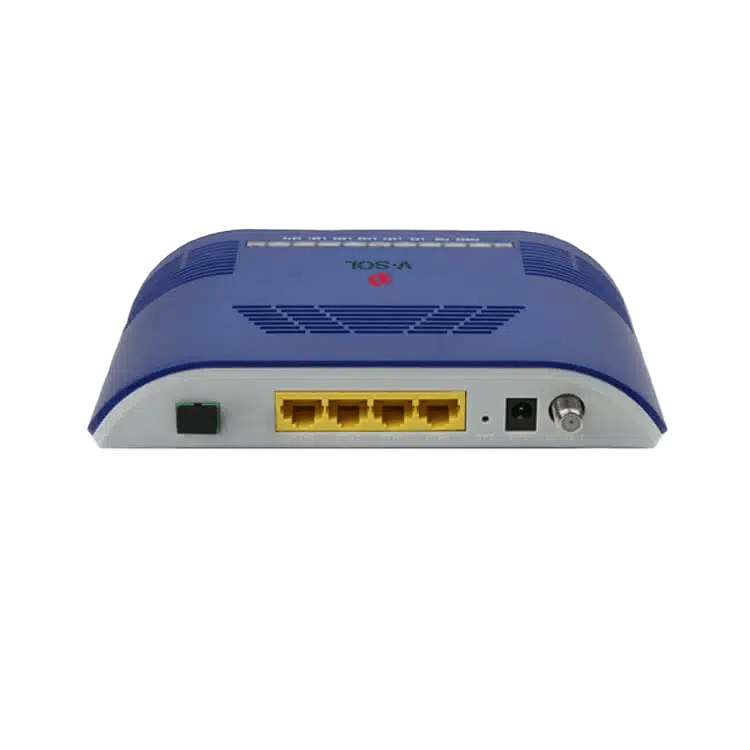

1GE+3FE+CATV GPON ONT

Name: 1GE+3FE+CATV GPON ONT
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2804RGT , Spec: 1GE+3FE+CATV GPON ONT

Contact Now

Description
Reviews

Specifications

Product Description

The V2804RGT is a GPON (Gigabit Passive Optical Network) ONT (Optical Network Terminal) device that offers a versatile and high-speed internet connectivity solution. With its compact design and robust features, it is ideal for home and small business applications.

Key Features:

1 Gigabit Ethernet (GE) port for high-speed internet access
3 Fast Ethernet (FE) ports for connecting multiple devices
CATV (Community Antenna Television) support for cable television services
GPON technology for reliable and efficient optical fiber connectivity
Compact and wall-mountable design for easy installation

Technical Specifications:

Model: V2804RGT
Interface: 1 GE + 3 FE + CATV
GPON Standards: ITU-T G.984
Power Supply: DC 12V, 1A
Dimensions: 180mm x 120mm x 30mm
Operating Temperature: 0°C to 40°C
Humidity: 5% to 90% non-condensing

Benefits:

High-speed internet access with Gigabit Ethernet port
Multiple device connectivity with 3 Fast Ethernet ports
Support for cable television services with CATV
Reliable and efficient optical fiber connectivity with GPON technology
Compact and easy-to-install design

Ideal Applications:

Home internet and cable TV services
Small business internet and networking solutions
Fiber-to-the-home (FTTH) applications
Fiber-to-the-building (FTTB) application

Product introduct

V2804RGT GPON ONT is designed to fulfill FTTH and triple play service demand of fixed network operators or cable operators. It meets telecom operators’ requirements of FTTO (office), FTTD (Desk), FTTH (Home) broadband speed, SOHO broadband access, and video surveillance. The GPON ONT router is based on the mature, stable, cost-effective Gigabit EPON technology, which adopts the technology of Layer 2/3, integrated CATV, and flexible configuration. With guaranteed QoS for different services and full compliance with technical regulations such as IEEE802.3ah and technical requirements of GPON Equipment from China Telecom, it’s highly reliable and easy to maintain.

Special Features

► Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade technology.
► Full compliance to IEEE 802.3ah specification & OAM function.
► Support rich VLAN, DHCP Server, and IGMP snooping multicast feature.
► Advantage traffic management
► Advanced Dynamic Bandwidth Allocation (DBA)
► The WAN port supports bridge or router mode.
► Advanced L2 features QinQ VLAN & QoS support.
► Support NAT, Firewall function.
► Support Console/ Telnet/ NMS management interface for ease of operation and maintenance.
► Support 2K MAC address table.
► Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
