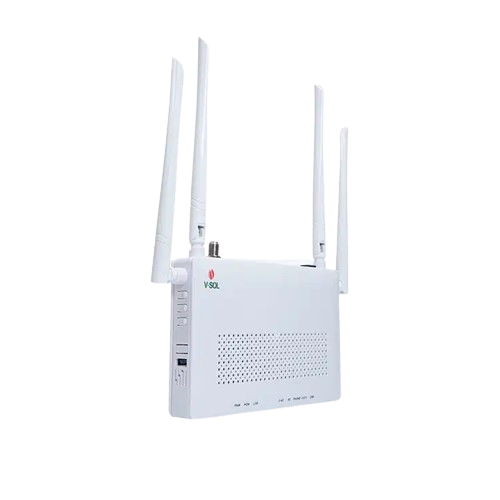

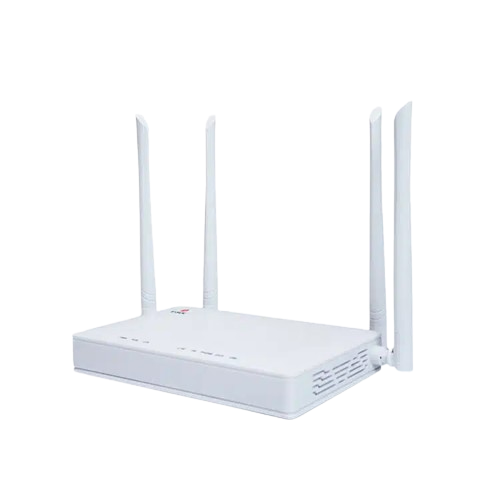

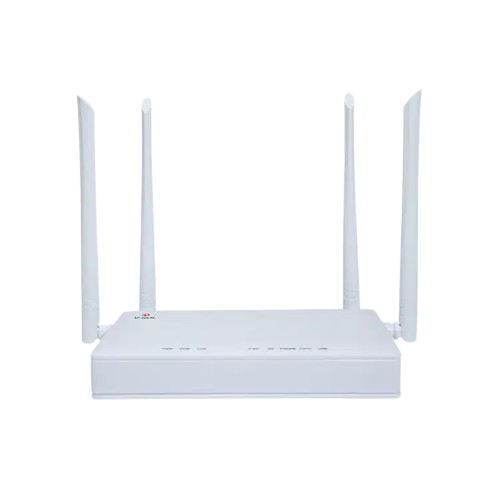

4GE+1POTS+WiFi 5+USB 3.0+CATV HGU
- Description
- Reviews
Description
-

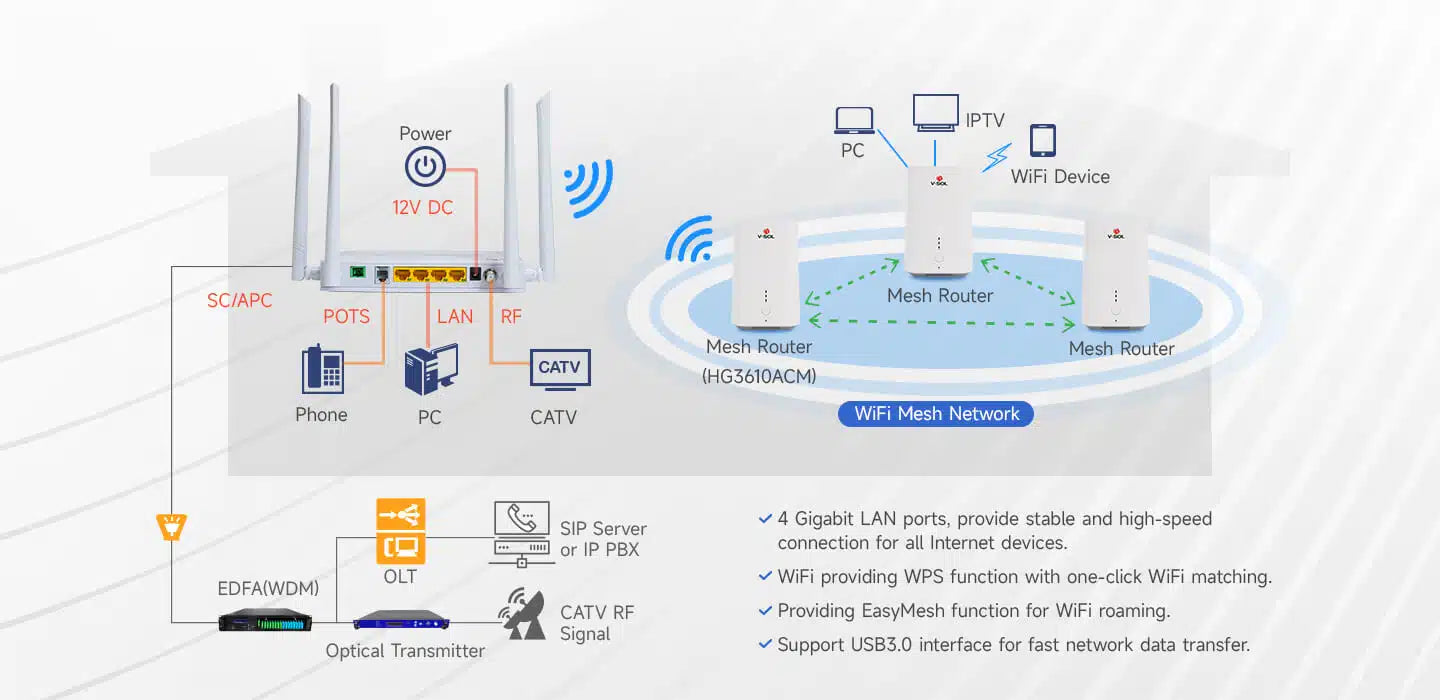

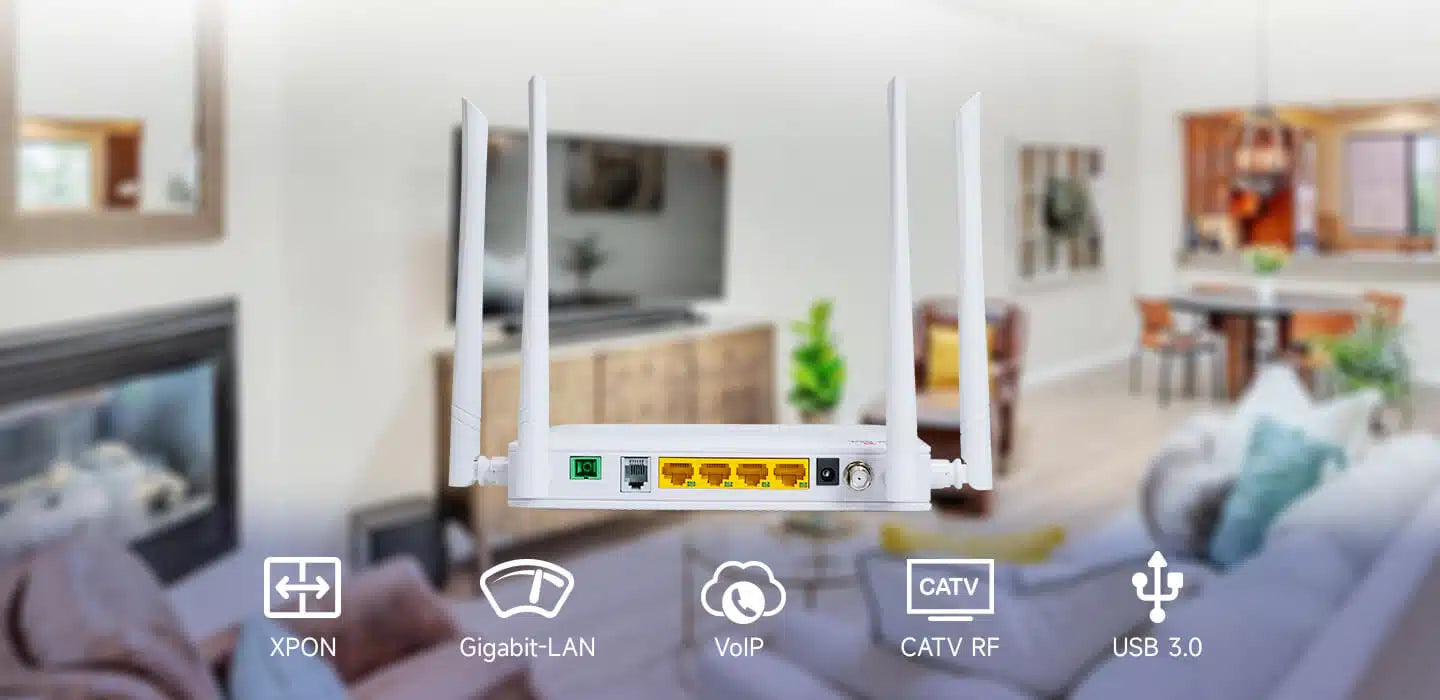

1 x XPON port for high-speed fiber connectivity
-

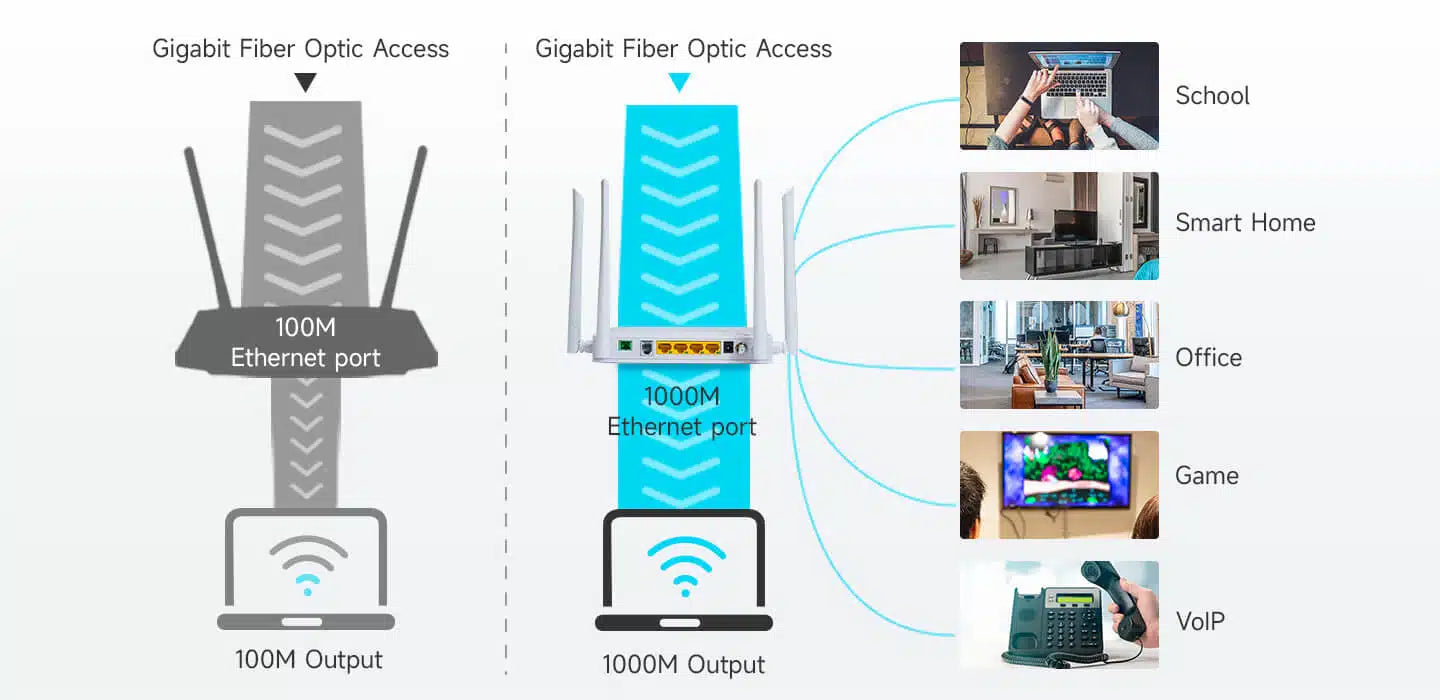

4 x Gigabit Ethernet ports for fast wired connectivity
-
1 x POTS port for traditional phone services
-
WiFi 5 capabilities for high-speed wireless internet
-

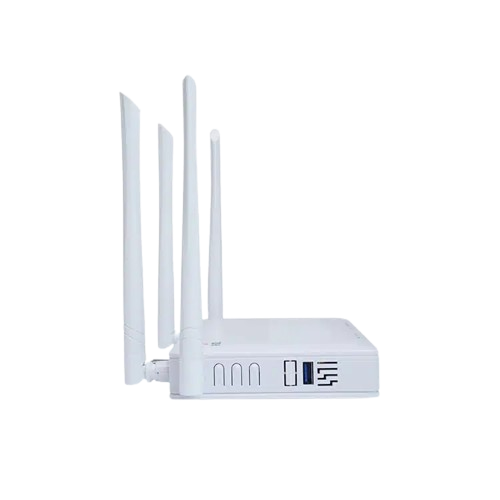

USB 3.0 port for fast device charging and data transfer
-
CATV for cable television services
-
Compact design with a weight of only 420g
-
High-speed internet and voice services
-
Reliable and secure connectivity
-
Entertainment services through CATV
-
Compact and easy to install
-
Perfect for homes and small businesses
Specifications
○ Hardware Parameter |
|
Dimension |
178mm×120mm×30mm(L×W×H) |
Net weight |
420g |
Operating condition |
Operating temp: 0°C ~ +50°C Operating humidity:10% ~ 90%(non-condensing) |
Storing condition |
Storing temp: -30 ~ +70°C Storing humidity: 10 ~ 90% (non-condensed) |
Power adapter |
DC12V,1.5A, external AC-DC power adaptor |
Power supply |
≤12W |

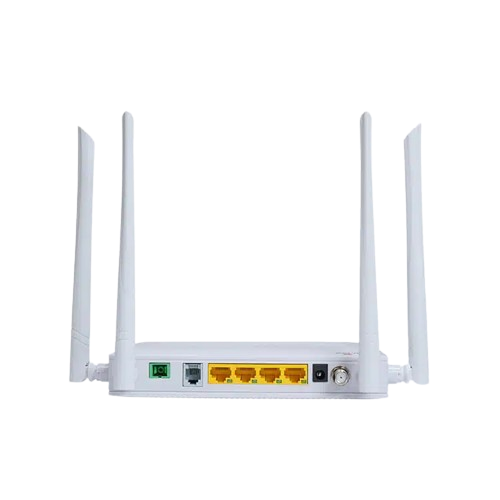

Interface |
4GE+1POTS+WiFi 5+USB 3.0+CATV |
Indicators |
POWER、LOS、PON、 LAN1~4、2.4G、5.0G、USB0、USB1、PHONE |
|
|
○ Interface parameter |
|
PON interface |
l1XPON port(EPON PX20+ & GPON Class B+) lSC single mode, SC/UPC connector lTX optical power: 0~+4dBm lRX sensitivity: -27dBm lOverload optical power: -3dBm(EPON) or -8dBm(GPON) lTransmission distance: 20KM lWavelength: TX 1310nm, RX1490nm |
Optical interface |
SC/APC connector |
User interface |
l4*GE, Auto-negotiation, RJ45 ports l1 POTS RJ11 Connector |
USB interface |
1*USB3.0, for Shared Storage/Printer |
WLAN interface |
lCompliant with IEEE802.11b/g/n/ac lWiFi:2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.167Gbps,Multiple SSID lTX power: 11n–22dBm/11ac–24dBm |
CATV interface |
lOptical receiving wavelength: 1550±10nm lOptical input range: +2~-18dBm lOptical reflection loss: ≥40dB lRF frequency range: 47~1000MHz lRF output impedance: 75Ω lRF output level and AGC range: ≥81±2dBuv@+1~-10dBm ≥79±2dBuv@ 0~-11dBm ≥77±2dBuv@-1~-12dBm ≥75±2dBuv@-2~-13dBm ≥73±2dBuv@-3~-14dBm ≥71±2dBuv@-4~-15dBm lMER: ≥32dB(-14dBm optical input) |
○ Function Data |
|
Management |
lOAM/OMCI,Telnet,WEB,TR069 lSupport full management of HGU functions by VSOL OLT |
Mode |
Support bridge, router and bridge/router mixed mode |
Data Service Functions |
lFull speed non-blocking switching l2K MAC address table l64 full range VLAN ID lSupport QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc. lIntegrated port monitoring, port mirroring, port rate limiting, port SLA, etc. lSupport auto polarity detection of Ethernet ports (AUTO MDIX) l Integrated IEEE802.1p QoS with four level priority queues lSupport IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy |
Wireless |
lIntegrated 802.11b/g/n/ac lAuthentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) lModulation type: DSSS、CCK and OFDM lEncoding scheme: BPSK、QPSK、16QAM and 64QAM |
VoIP |
lSIP and IMS SIP lG.711a/G.711u/G.722/G.729 Codec lEcho cancellation,VAD/CNG,DTMF lT.30/T.38 FAX lCaller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference lLine testing according to GR-909 |
L3 |
lSupport NAT, Firewall lSupport IPv4/IPv6 dual stack |
Other function |
lIntegrated OAM/OMCI remote configuration and maintenance function lSupport rich QinQ VLAN functions and IGMP snooping multicast features |
