4GE+1POTS+1USB3.0+WiFi6 HGU Model: HG325AX Spec: 1*XPON+4*GE+1*POTS+WiFi 6(AX1500/1800/AX3000)+1*USB 3.0 Weight: 340g

V.SOL

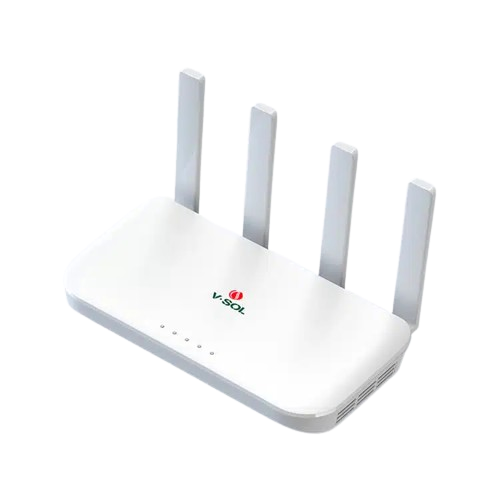

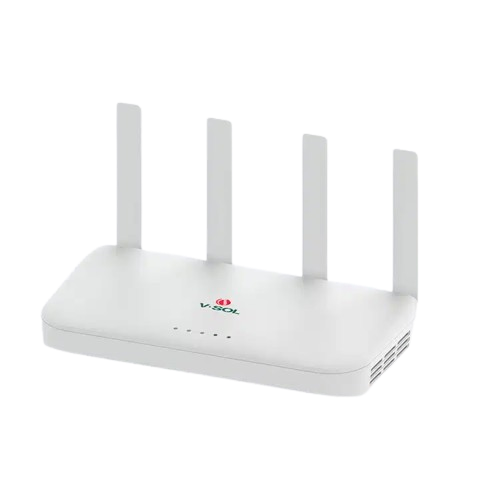

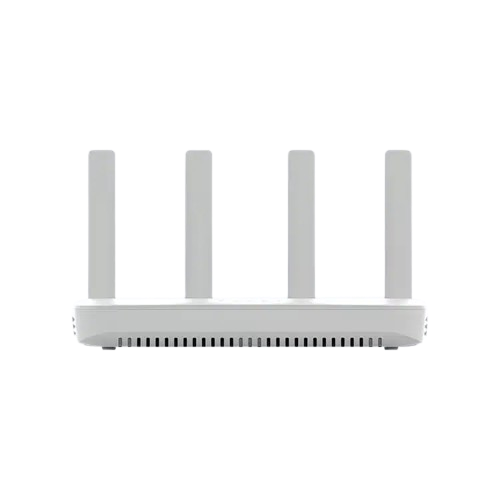

4GE+1POTS+1USB3.0+WiFi6 HGU

Name: 4GE+1POTS+1USB3.0+WiFi6 HGU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: HG325AX , Spec: 1*XPON+4*GE+1*POTS+WiFi 6(AX1500/1800/AX3000)+1*USB 3.0

Contact Now

DataSheet PDF

Description
Reviews

Description

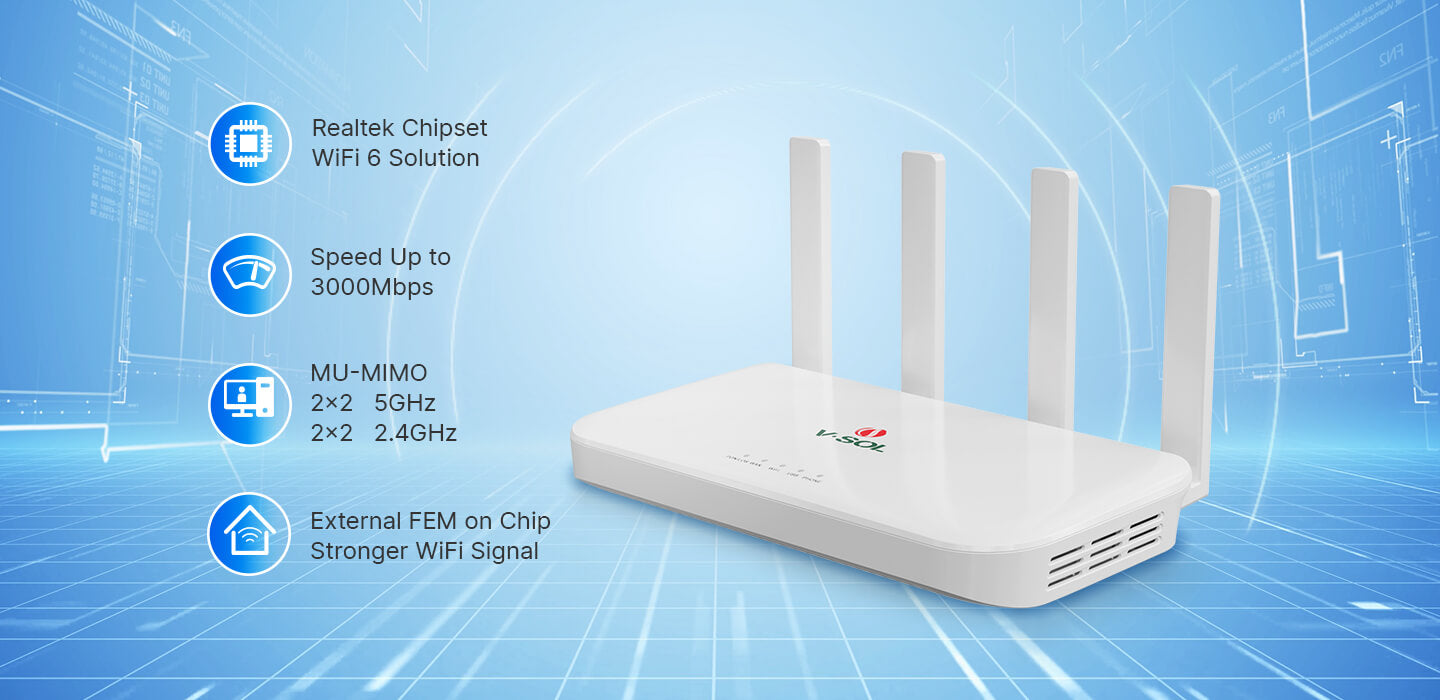

HG325AX: High-Performance HGU for Fast and Reliable Connectivity

The HG325AX HGU is a cutting-edge device that delivers high-speed internet, voice, and data services to your home or business. With 4 Gigabit Ethernet ports, 1 POTS port, WiFi 6 capabilities (AX1500/1800/AX3000), and 1 USB 3.0 port, you can enjoy fast and reliable connectivity, voice over IP, and data services. This compact device (weighing only 340g) is perfect for small to medium-sized businesses and residential networks, providing a high-performance connection for all your devices.

Key Features:

1 x XPON port for high-speed fiber connectivity
4 x Gigabit Ethernet ports for fast wired connectivity
1 x POTS port for traditional phone services

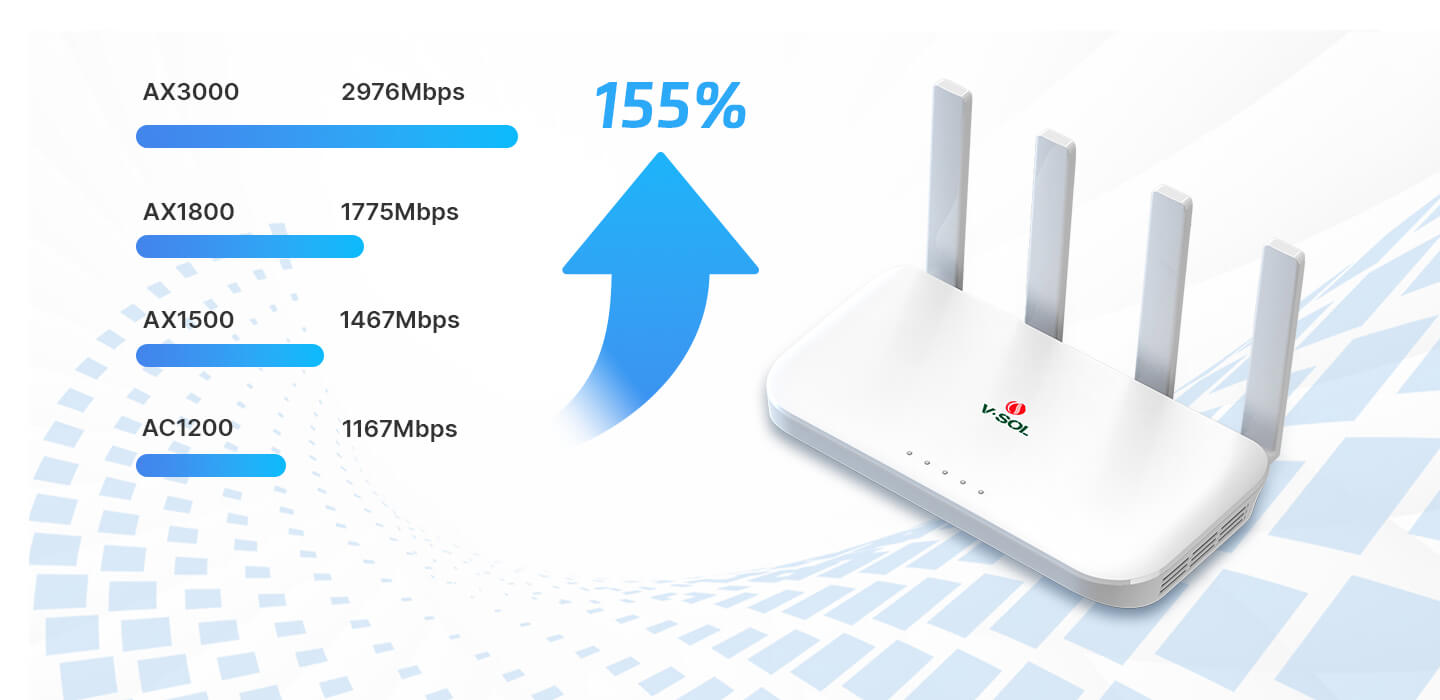

WiFi 6 capabilities (AX1500/1800/AX3000) for high-speed wireless internet
1 x USB 3.0 port for fast device charging and data transfer
Compact design with a weight of only 340g

Benefits:

High-speed internet and voice services
Reliable and secure connectivity
Fast and efficient data transfer
Compact and easy to install
Perfect for small to medium-sized businesses and residential networks

Specifications

○ Hardware Parameter
Dimension	250mm×145mm×36mm (L×W×H)
Net weight	0.34Kg
Operating condition	Operating temp: -10 ~ +55°C Operating humidity:5 ~ 95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V, 1.5A, external AC-DC power adaptor
Power supply	≤18W
Interface	AX1500, AX1800: 1XPON+4GE+1POTS+1USB3.0+WiFi6 AX3000: 1XPON+12.5GbE+3GE+1POTS+1*USB3.0+WiFi6
Indicators	PWR, PON, LOS, WAN, WiFi, FXS, ETH1~4, WPS, USB

○ Interface Parameter
PON Interface	l 1XPON port(EPON PX20+ and GPON Class B+) l SC single mode, SC/UPC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm

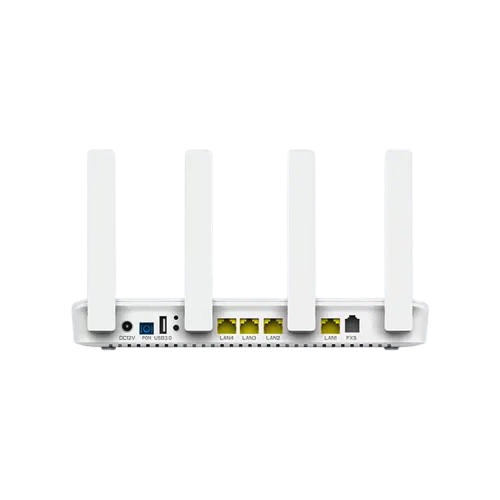

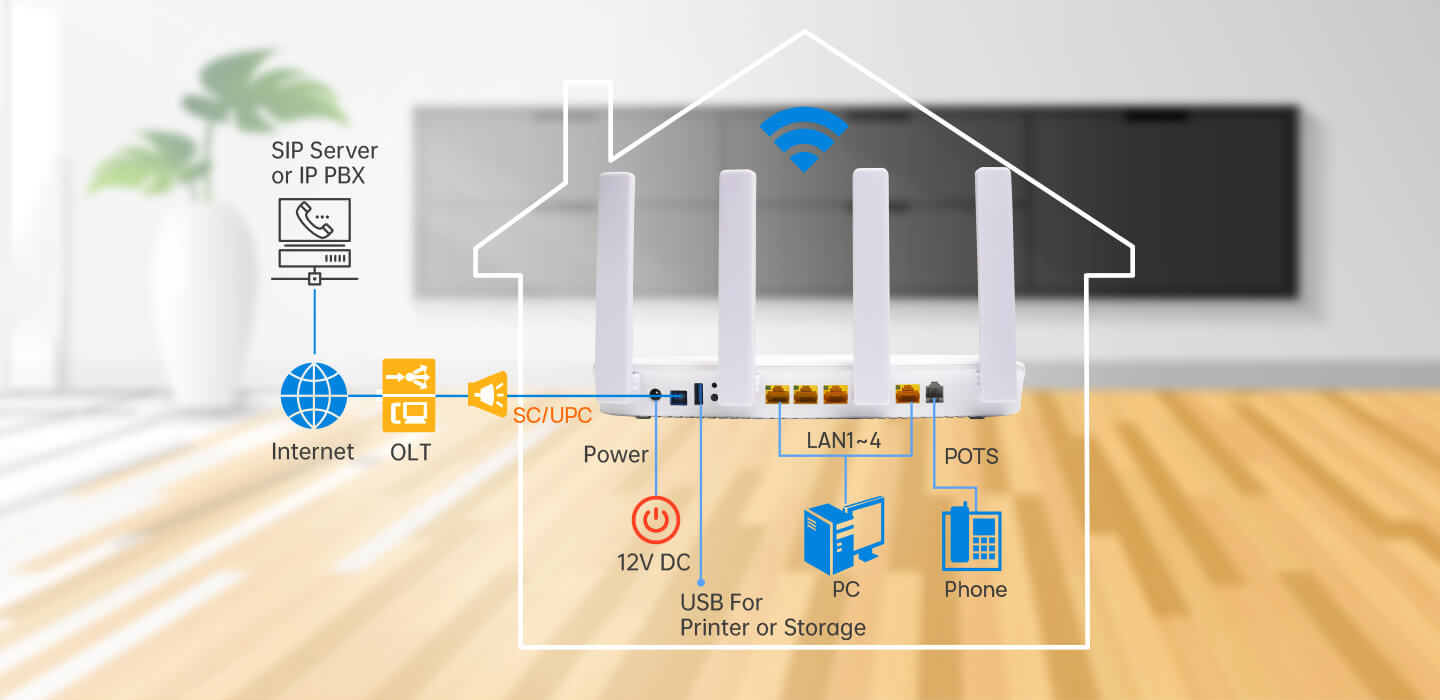

User interface	l 4GE(or AX3000: 12.5GbE+3*GE), Auto-negotiation,RJ45 ports l 1×POTS RJ11 Connector
Antenna	4 × 5dBi external antennas

○ Function Data
O&M	l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol and Unified network management of VSOL OLT
Internet connection	Support Routing Mode
Multicast	l IGMP v1/v2/v3, IGMP snooping l MLD v1/v2 snooping
VoIP	l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation,VAD/CNG,DTMF Relay l T.30/T.38 FAX l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference l Line testing according to GR-909

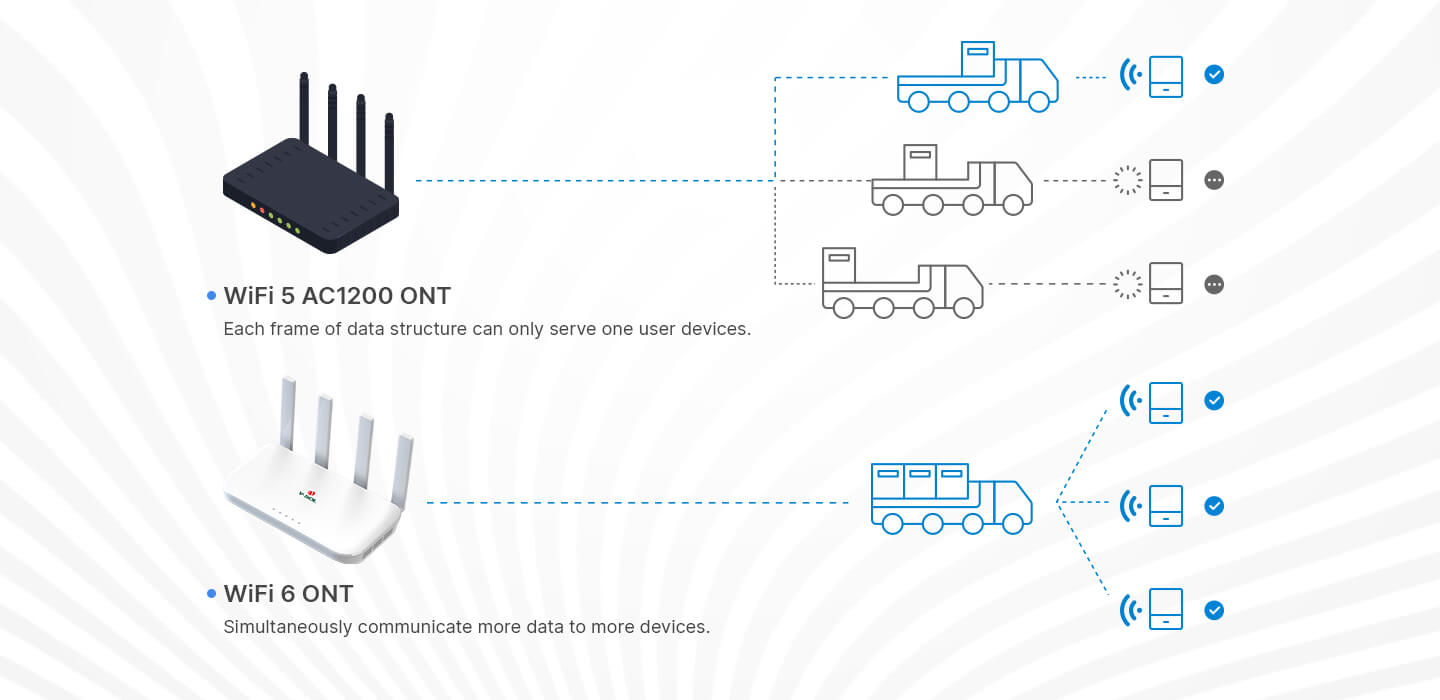

WIFI	l WiFi 6: AX1500: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz AX1800, AX3000: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz l WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 l Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM l Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band l Support WIFI Easy-mesh function
L2	802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN
L3	IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS
Firewall	Anti-DDOS, Filtering Based on ACL/MAC /URL
