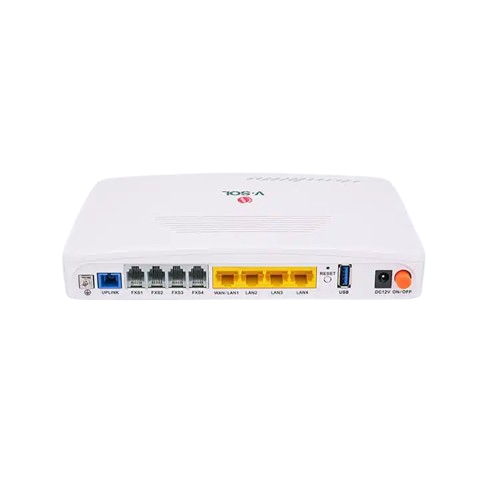

1GPON+4GE+4POTS ICT Model: ICT3310D-4G4S Spec: 4*GE+4POTS

V.SOL

1GPON+4GE+4POTS ICT

Name: 1GPON+4GE+4POTS ICT
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: ICT3310D-4G4S , Spec: 4*GE+4POTS

Contact Now

DataSheet PDF

Description
Reviews

Description

ICT3310D-4G4S: High-Speed ICT Solution for Business and Residential Networks

The ICT3310D-4G4S is a cutting-edge ICT device that combines high-speed internet, voice, and data services in one compact unit. With 1 GPON port, 4 Gigabit Ethernet ports, and 4 POTS ports, it's perfect for small to medium-sized businesses and residential networks. Enjoy fast and reliable connectivity, voice over IP, and data services with this versatile device.

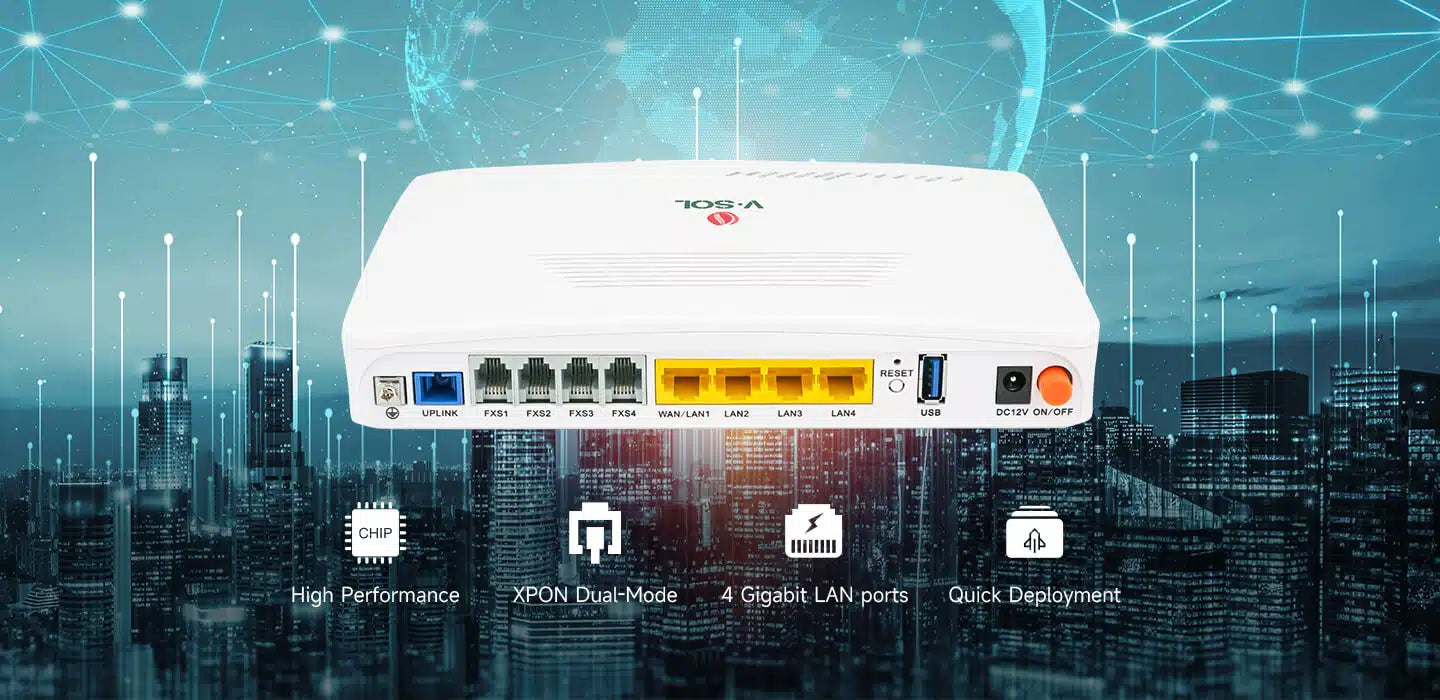

Key Features:

1 x GPON port for high-speed internet
4 x Gigabit Ethernet ports for fast data transfer
4 x POTS ports for voice over IP and traditional phone services
Compact design for easy installation and deployment

Specifications

○ Hardware Parameter
Dimension	205mm×140mm×37m(L×W×H)
Net weight	0.5kg
Operating condition	Operating temp: -10 ~ +55°C Operating humidity: 10 ~ 90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 95% (non-condensed)
Power adapter	DC 12V, 1.5A, external AC-DC, power adaptor
Power supply	≤18W

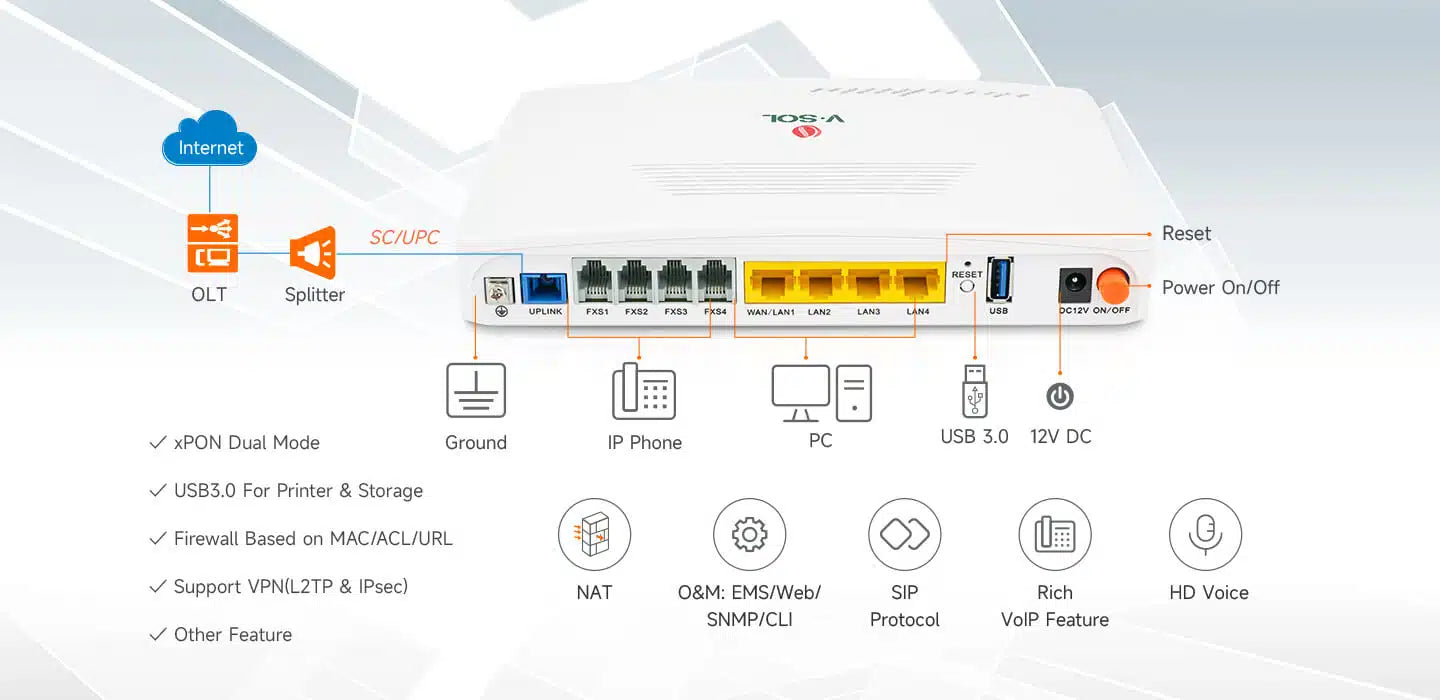

Interfaces	4GE+4POTS+USB 3.0
Indicators	PWR, SYS, UPLink, LOS, WAN/LAN1, FXS1~FXS4, LAN2~LAN4, LINK, USB

○ Interface parameter
PON interface	l 1XPON port(EPON PX20+ & GPON Class B+) l SC single mode, SC/UPC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm
LAN interface	2*GE, Auto-negotiation RJ45 connectors
POTS interface	4*RJ11 connectors
USB interface	USB 3.0 For Shared Storage/Printer

○ Function Data
LAN	Support port rate limiting
WAN	Support set the LAN1 interface as WAN interface
VLAN	l Support VLAN tag mode l Support VLAN transparent mode l Support VLAN trunk mode l Support VLAN translation mode
Multicast	Support IGMPv1/v2/v3/Proxy/Snooping and MLD Proxy/Snooping
QoS	l Support 4 queues l Support SP and WRR l Support 802.1P l Support DSCP
L3	l Support IPv4、IPv6 and IPv4/IPv6 dual stack l Support DHCP/PPPOE/Statics l Support Static route, NAT l Support Bridge, Route ,Route and Bridge mixed mode l Support DMZ, DNS, ALG, UPnP l Support Virtual Server
DHCP	Support DHCP Server and DHCP Relay
VoIP	l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation,VAD/CNG,DTMF l T.30/T.38 FAX l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference l Line testing according to GR-909
Security	Support Firewall based on Mac/ACL/URL
Management	l Support OMCI(ITU-T G.984.x) & CTC OAM 2.0 and 2.1 l Support WEB/TR069/TELNET/CLI

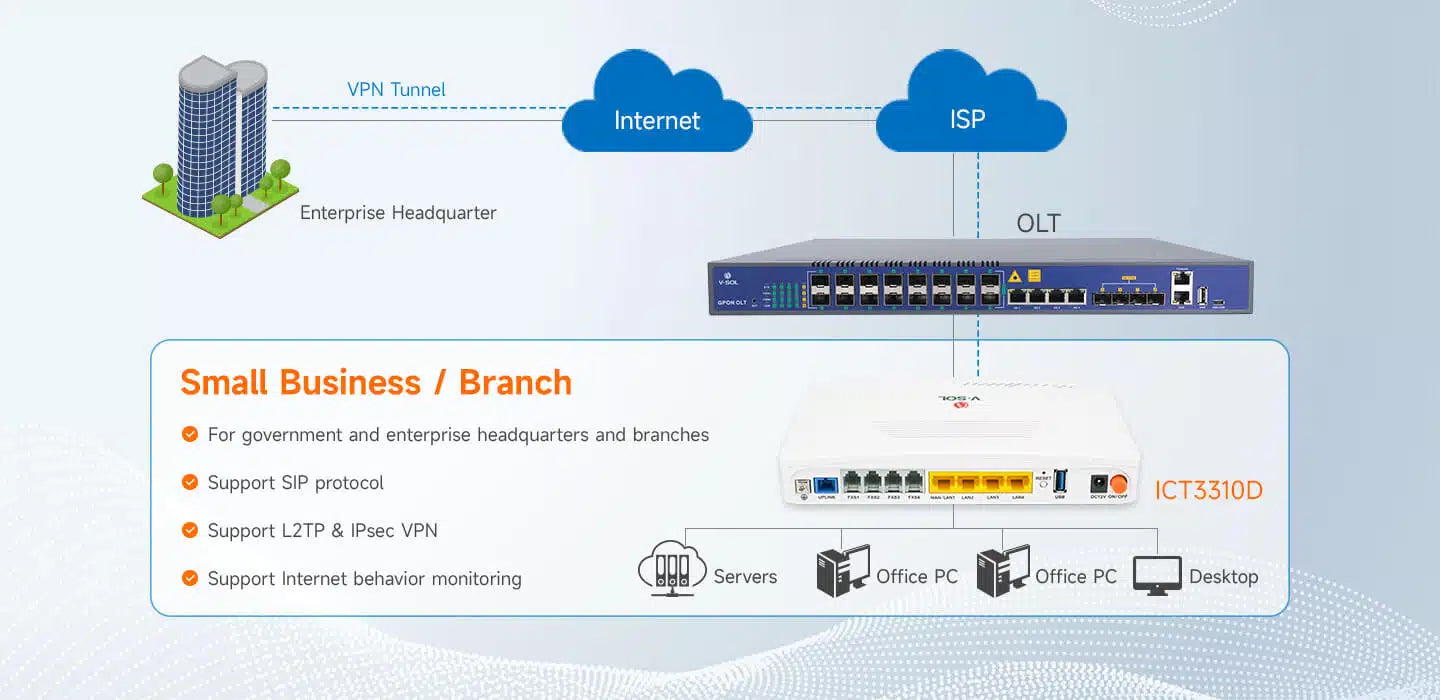

Application	l Support L2TP & IPsec VPN l Support EoIP l Support VxLan l Support Web Push
