4GE+1POTS+WiFi XPON HGU Model: HG325N Spec: 4*GE+1POTS+WiFi 4 Weight: 340g

V.SOL

4GE+1POTS+WiFi XPON HGU

Name: 4GE+1POTS+WiFi XPON HGU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: HG325N , Spec: 4*GE+1POTS+WiFi 4

Contact Now

DataSheet PDF

Description
Reviews

Description

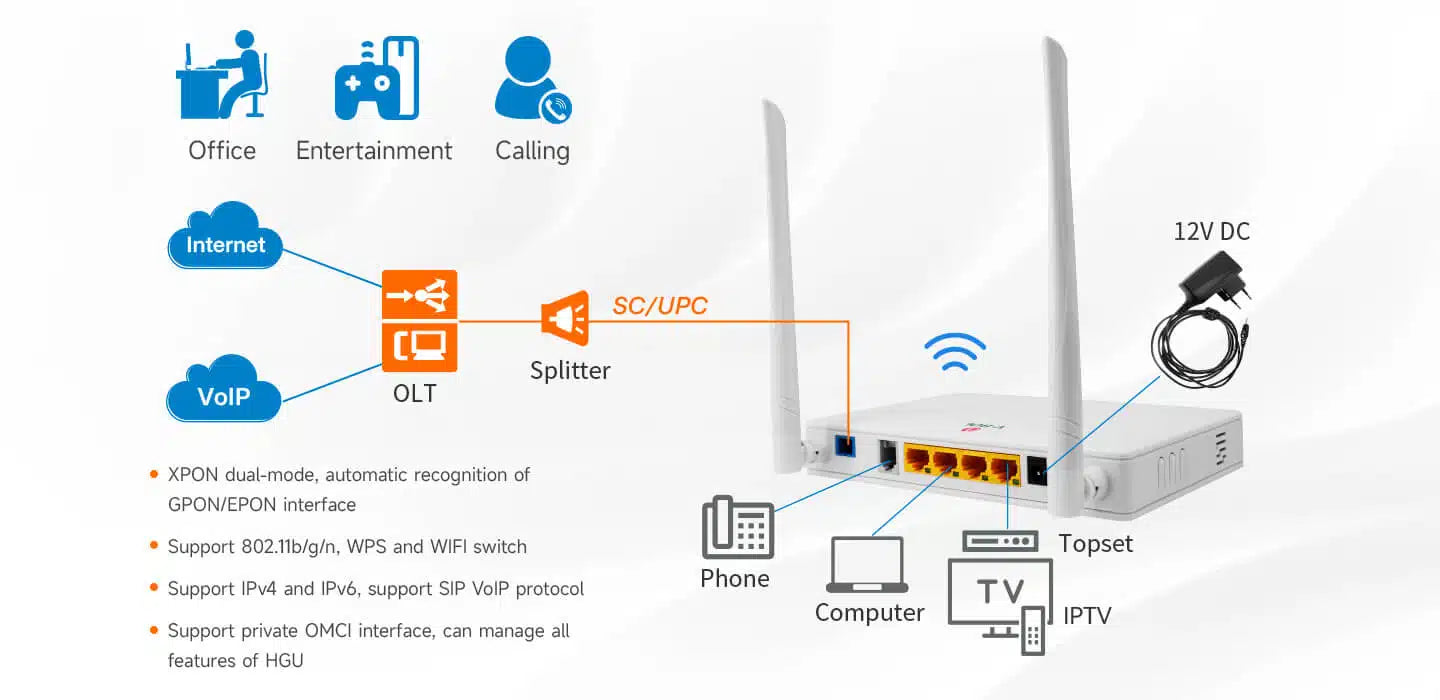

HG325N: All-in-One HGU for High-Speed Internet, Voice, and Data Services

The HG325N HGU is a versatile and compact device that combines high-speed internet, voice, and data services in one. With 4 Gigabit Ethernet ports, 1 POTS port, and WiFi 4 capabilities, it's perfect for small to medium-sized businesses and residential networks. Enjoy fast and reliable connectivity, voice over IP, and data services with this powerful and flexible device.

Key Features:

4 x Gigabit Ethernet ports for fast wired connectivity
1 x POTS port for traditional phone services
WiFi 4 capabilities for high-speed wireless internet
Compact design for easy installation and deployment

Specifications

○ Hardware Parameter
Dimension	205mm×140mm×37m(L×W×H)
Net weight	0.34Kg
Operating condition	Operating temp: 0 ~ +50°C Operating humidity:5 ~ 90%(non-condensed)
Storing condition	Storing temp: -30 ~ +75°C Storing humidity: 5 ~ 90% (non-condensed)
Power adapter	DC 12V,1/1.5A,external AC-DC power adaptor
Power supply	≤10W
Interfaces	4GE+1POTS+WiFi 4
Indicators	PWR, PON, LOS, WAN, FXS, ETH1~EH4, WPS, WIFI

○ Interface parameter
PON interface	1XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
WIFI interface	Compliant with IEEE802.11b/g/n Rate up to 300Mbps, 2T2R, 5dBi external antenna Support: multiple SSID Support 13 Channels
LAN interface	4*GE, Auto-negotiation,RJ45 ports
Pots interface	1*FXS, RJ11 connector

○ Function Data
XPON mode	Dual mode , Can access EPON/GPON OLTs(HUAWEI,ZTE,FiberHome, etc)
Connect Mode	Routing mode
WiFi	IEEE802.11b/g/n(TX power:17dBm/16dBm/ 15dBm) WiFi Authentication : WEP/WAP-PSK(TKIP) /WAP2-PSK(AES)
Firewall	DDOS, Filtering Based on ACL/MAC/URL
Layer2	802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN
Layer3	IPv4/IPv6, DHCP Client/Server , PPPoE, NAT , DMZ ,DDNS
Multicast	IGMP v1/v2/v3 , IGMP snooping
Security	Flow & Storm control, Loop Detection
VoIP	SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation,VAD/CNG,DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909
O&M	WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol Unified network management of VSOL OLT
