4GE ONU Model: V2804Z-4G Spec: 1*XPON+4*GE Weight: 170g

V.SOL

4GE ONU

Name: 4GE ONU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2804Z-4G , Spec: 1*XPON+4*GE

Contact Now

DataSheet PDF

Description
Reviews

Description

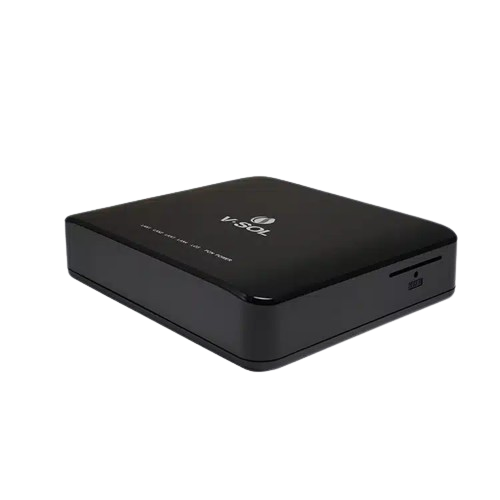

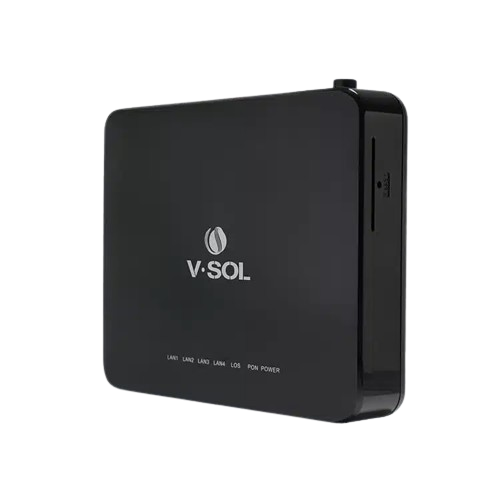

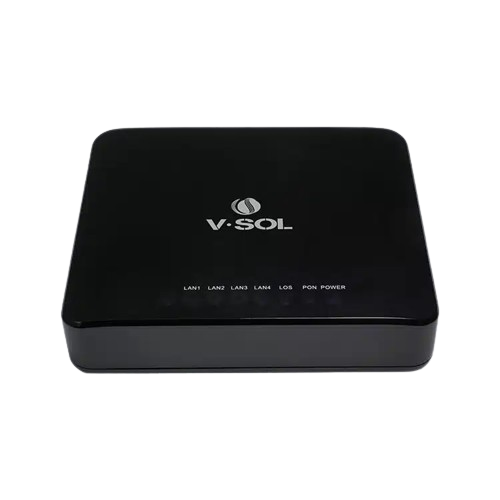

V2804Z-4G: High-Speed ONU for Fiber-Based Internet

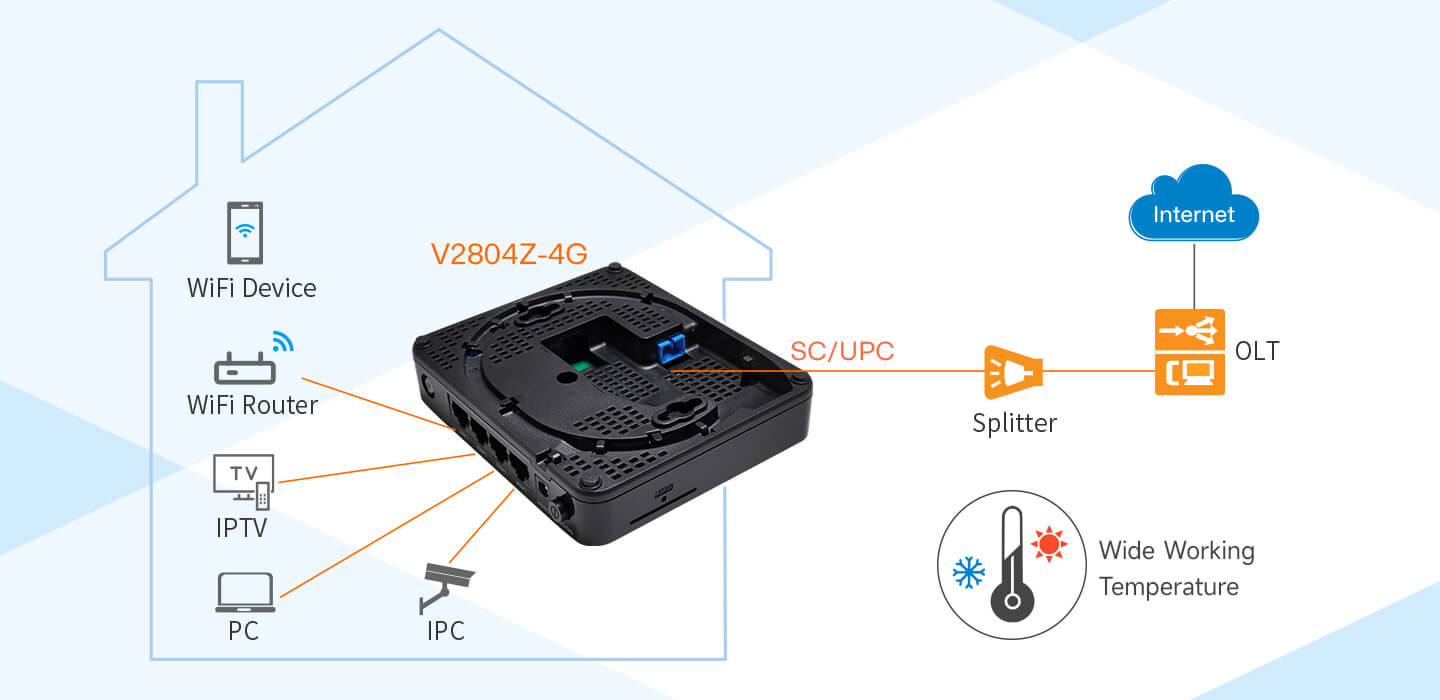

The V2804Z-4G ONU is a cutting-edge device that brings high-speed internet to your home or business. With 1 XPON port and 4 Gigabit Ethernet ports, it's perfect for streaming, online gaming, and heavy data usage. Enjoy fast and reliable connectivity with this compact and easy-to-install device.

Key Features:

1 x XPON port for high-speed fiber connectivity

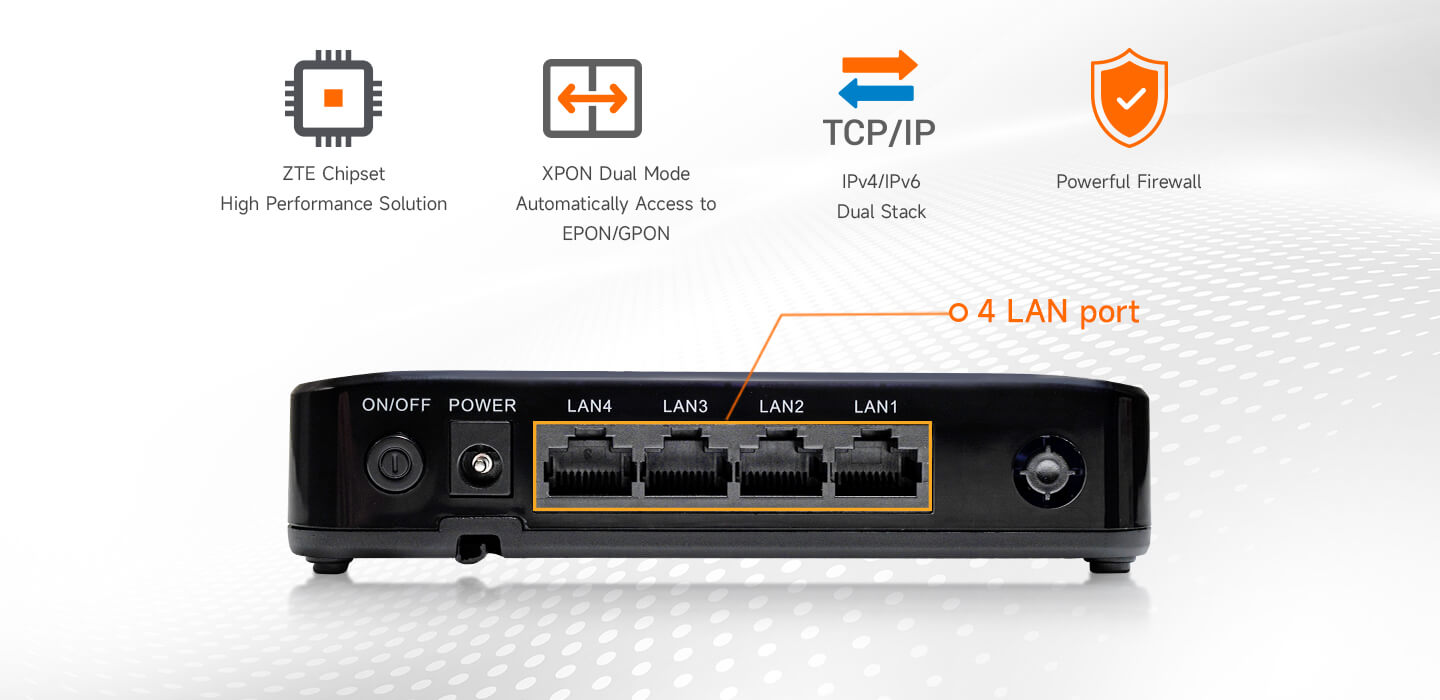

4 x Gigabit Ethernet ports for fast wired connectivity
Compact design for easy installation and deployment

Specifications

○ Hardware Parameter
Dimension	130mm110mm30mm(LWH)
Net weight	0.17kg
Operating condition	Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V/0.5A, external AC-DC power adaptor
Power supply	≤12W

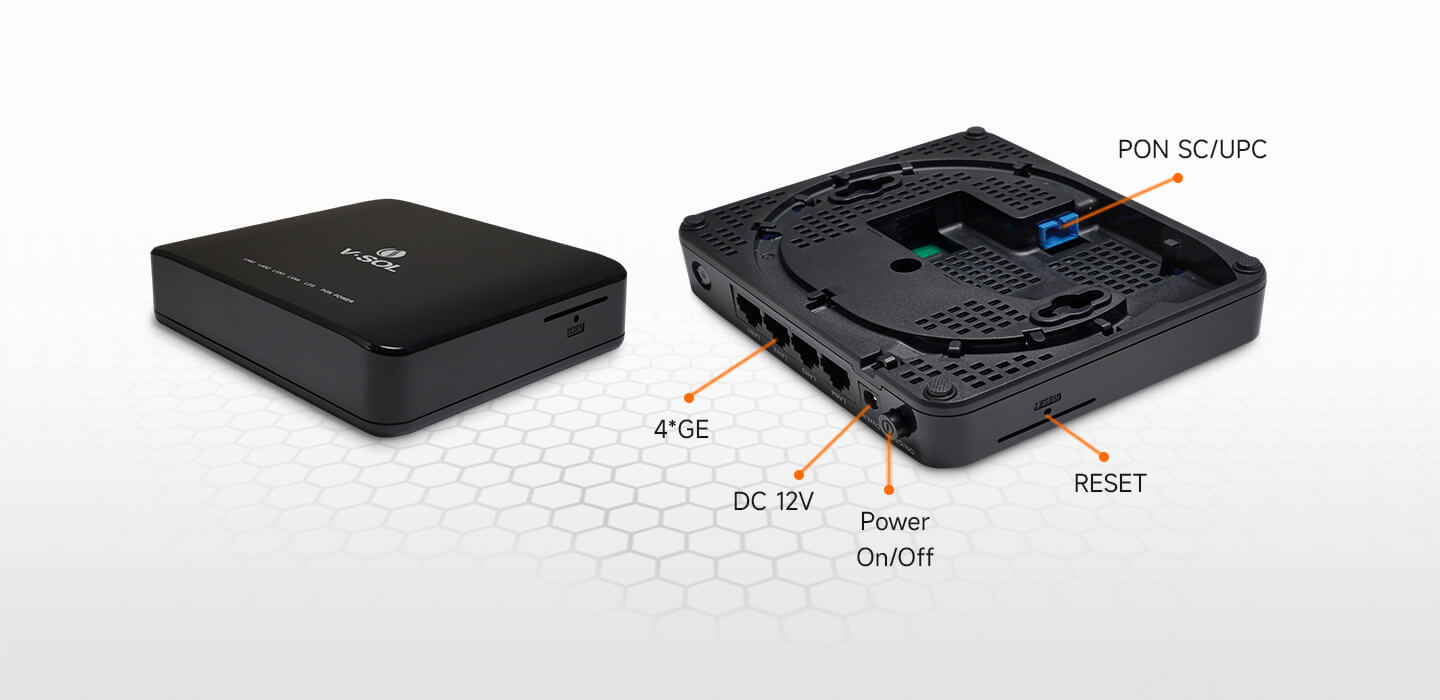

Interfaces	4GE
Indicators	PWR, PON, LOS, LAN1~LAN4

○ Interface parameter
PON interface	l 1 XPON port (EPON PX20+ & GPON Class B+) l SC single mode, SC/UPC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm (EPON) or -8dBm (GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm

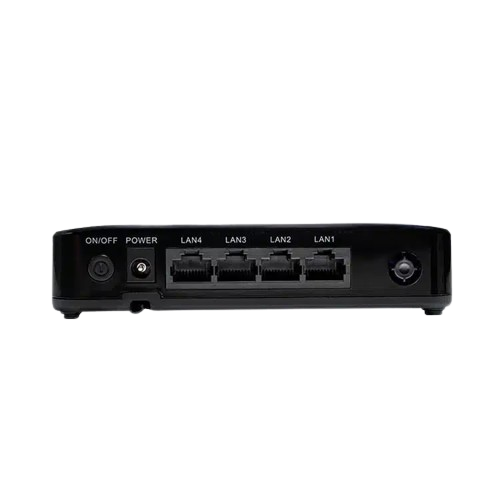

LAN interface	4*GE, Auto-negotiation RJ45 connectors

○ Function Data
XPON Mode	Dual mode, Auto-access to EPON/GPON OLT
Uplink Mode	Bridging and Routing Mode
Abnormal protection	Detecting Rogue ONU, Hardware Dying Gasp
Firewall	DDOS, Filtering Based on ACL/MAC/URL
