4GE XPON SFU ONU Model: V283D-4G Spec: 4*GE

V.SOL

4GE XPON SFU ONU

Name: 4GE XPON SFU ONU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V283D-4G , Spec: 4*GE

Contact Now

DataSheet PDF

Description
Reviews

Desription

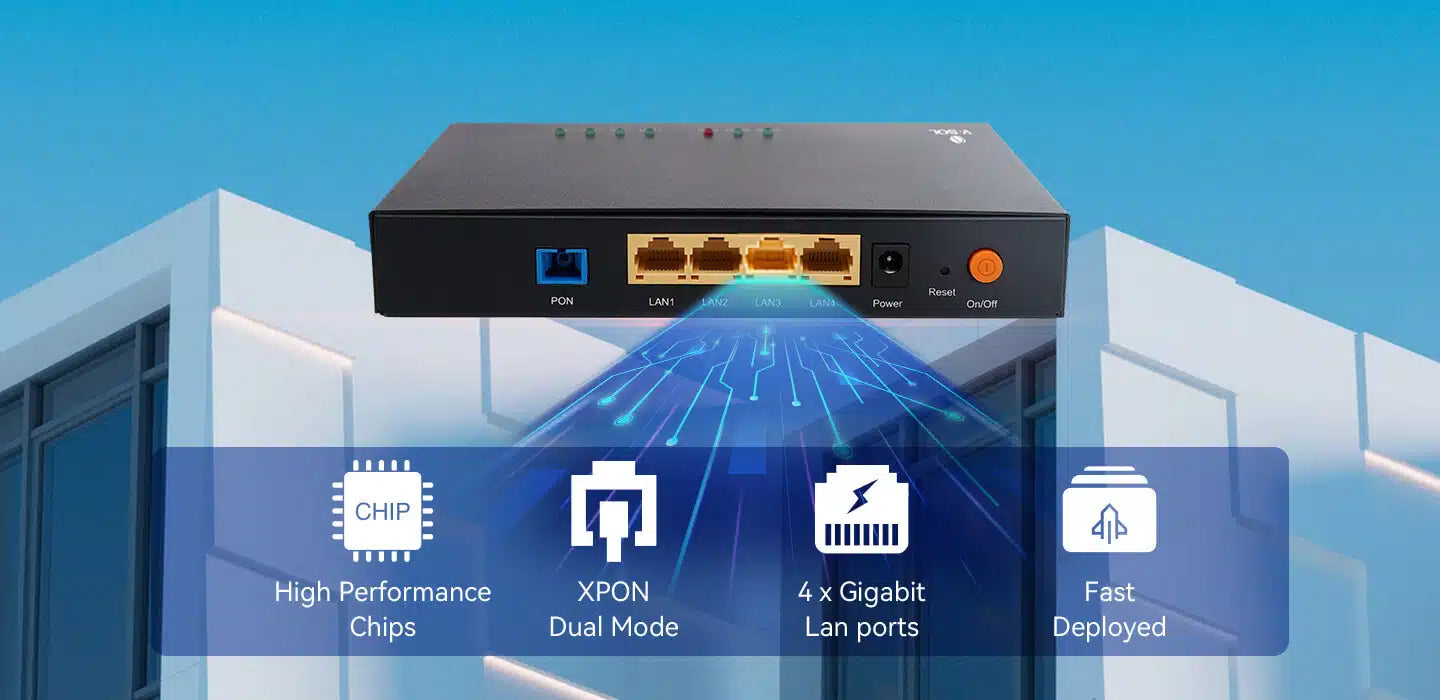

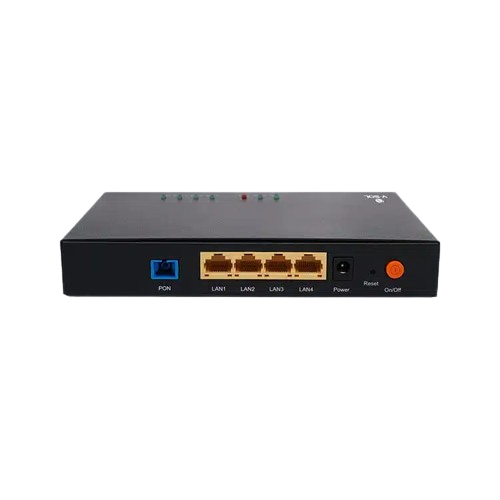

V283D-4G: Compact and Reliable XPON ONU

The V283D-4G is a compact and reliable XPON ONU device, featuring 4 Gigabit Ethernet ports, ideal for small to medium-sized networks. With its compact design and easy installation, it's perfect for FTTH and FTTB applications, providing high-speed internet and data services.

Key Features:

4 x Gigabit Ethernet ports
XPON technology for high-speed data transmission
Compact and easy to install
Ideal for FTTH and FTTB applications

Specifications:

Hardware Parameter
Dimension	175mm×123mm×28mm(L×W×H)
Net weight	150g
Operating condition	Operating temp: -20°C~+55°C Operating humidity:10%~90%（non-condensing)
Storage condition	Storing temp: -30~+60°C Storing humidity: 10~90% (non-condensed)
Power adapter	DC 12V/0.5A
Power supply	≤ 6W
Interface	4GE
Indicators	PWR, PON,, LOS, GE1, LAN1~4

○ Interface parameter
PON Interface	1 XPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤ -28 dBm TX optical power: 0 ~ +4 dBm RX optical power: -8 to -28 dBm Transmission distance: 20KM
Wavelength	TX 1310nm, RX 1490nm
Optical Interface	SC/UPC connector
LAN interface	4 x 10/100/1000BASE-TX Ethernet ports, RJ45 connector，AutoMDIX
Control Button	RST – Reset Button On/Off – Power Button

○ Function Data
O&M	WEB/TELNET/OAM/OMCI Support private OAM/OMCI protocol and Unified network management of VSOL OLT
Multicast	IGMP v1/v2/v3, IGMP snooping
L2	802.1D & 802.1ad bridging
L3	IPv4, Stack IP Configuration
Other Function	Firmware upgrade & Backup/Restore
