4GE+1POTS+WiFi 5+USB HGU Model: HG3221D Spec: 4*GE+1POTS(2POTS option)+WiFi 5+USB 3.0

V.SOL

HG3221D (4GE+1POTS+WiFi 5+USB HGU

Name: HG3221D (4GE+1POTS+WiFi 5+USB HGU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: HG3221D , Spec: 4*GE+1POTS(2POTS option)+WiFi 5+USB 3.0

Contact Now

DataSheet PDF

Description
Reviews

Description

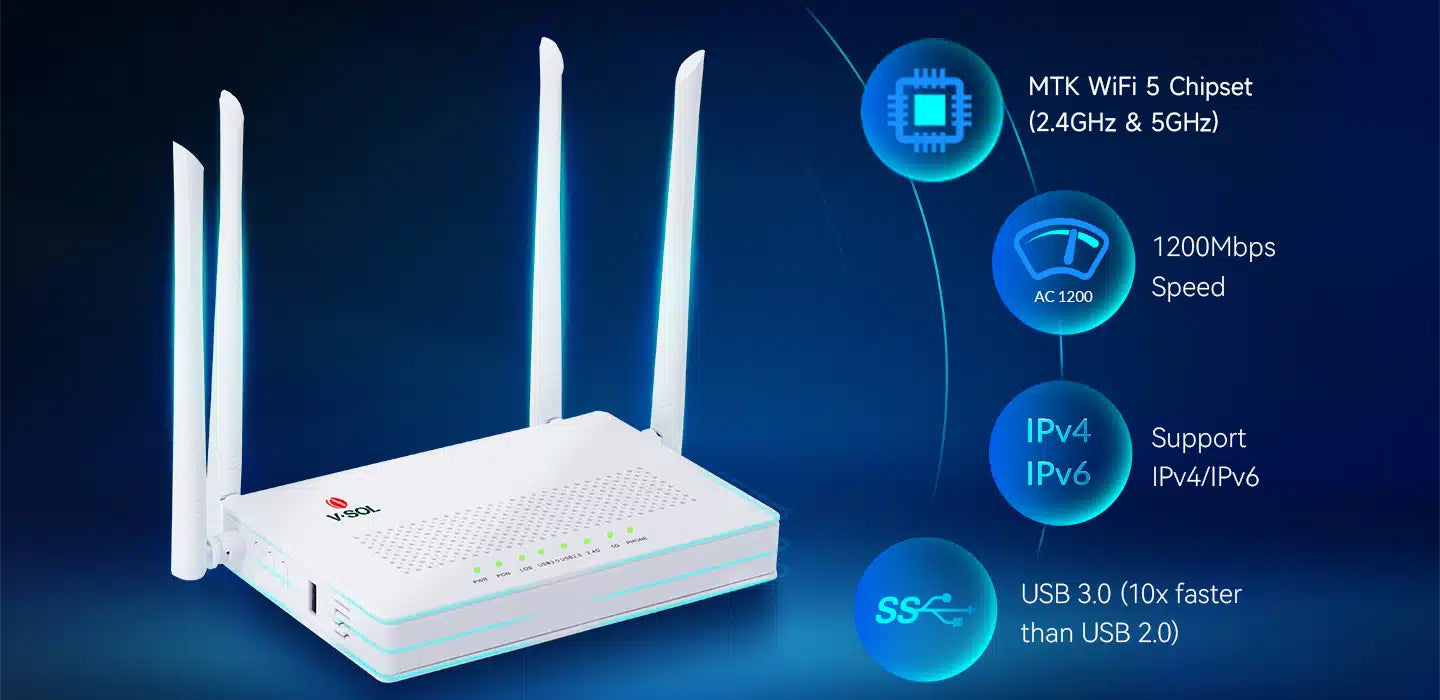

HG3221D: Compact and Powerful HGU for High-Speed Connectivity

The HG3221D HGU is a compact and powerful device that delivers high-speed internet, voice, and data services. With 4 Gigabit Ethernet ports, 1 POTS (optional 2 POTS) port, WiFi 5 capabilities, and USB 3.0 connectivity, it's perfect for small networks and home users. Weighing just 320g, it's ideal for FTTH and FTTB applications.

Key Features:

4 x Gigabit Ethernet ports
1 x POTS (optional 2 x POTS) port
WiFi 5 capabilities
USB 3.0 connectivity
Ultra-compact design (320g)

Specifications

○ Hardware Parameter
Dimension	205mm×140mm×37mm(L×W×H)
Net weight	0.32Kg
Operating condition	Operating temp:0 ~ +55°C Operating humidity:5 ~ 90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 5 ~ 90% (non-condensed)
Power adapter	DC 12V,1.5A, external AC-DC power adaptor
Power supply	≤10W
Interface	HG3221D-4G1S2NAC:4GE+1POTS+USB3.0+WiFi5
Interface	HG3221D-4G2S2NAC:4GE+2POTS+USB3.0+WiFi5
Indicators	PWR,PON ,LOS,WAN,WiFi,FXS,ETH1~4,WPS,USB

○ Interface parameter
PON Interface	1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm

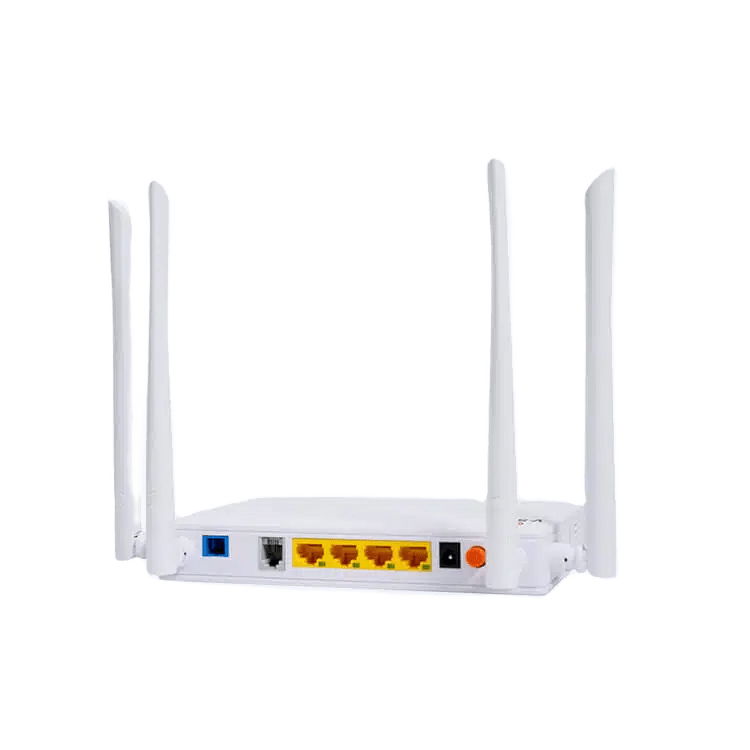

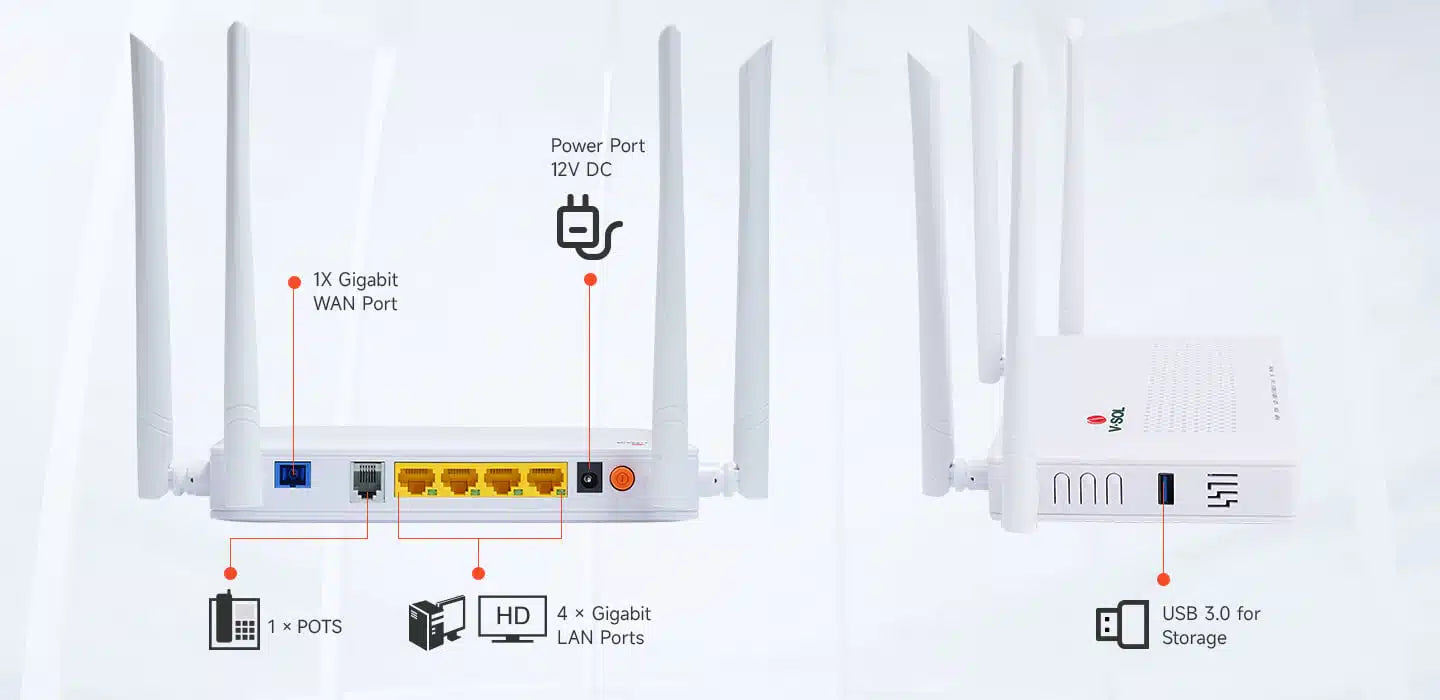

User interface	4×GE, Auto-negotiation,RJ45 ports 1×POTS(2×RJ11 option) RJ11 Connector

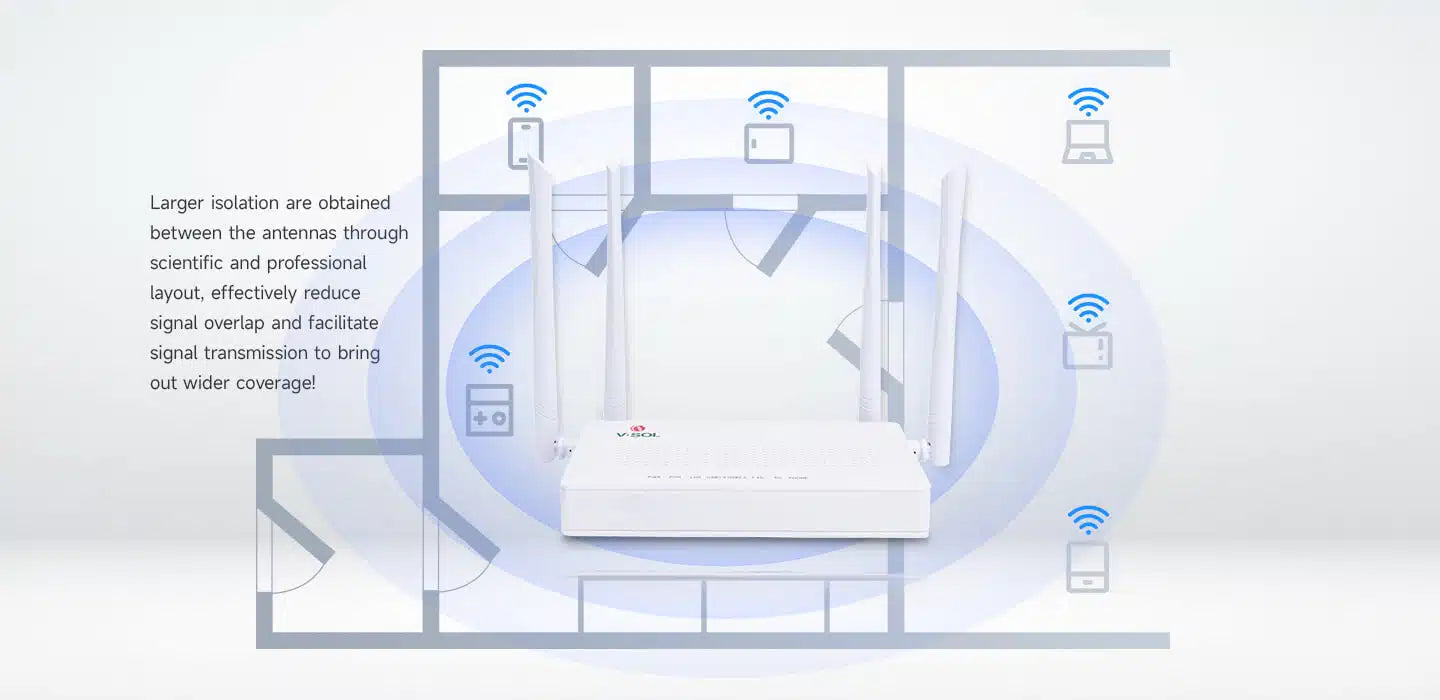

Antenna	4T4R, 5dBi external antennas
USB	1×USB 3.0 for Shared Storage

○ Function Data
Management	WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol and Unified network management of VSOL OLT
Internet connection	Support Routing Mode
Multicast	IGMP v1/v2/v3, IGMP snooping
VoIP	SIP and IMS SIP Codec∶G.711/G.723/G.726/G.729 codec Echo cancellation,VAD/CNG,DTMF T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909

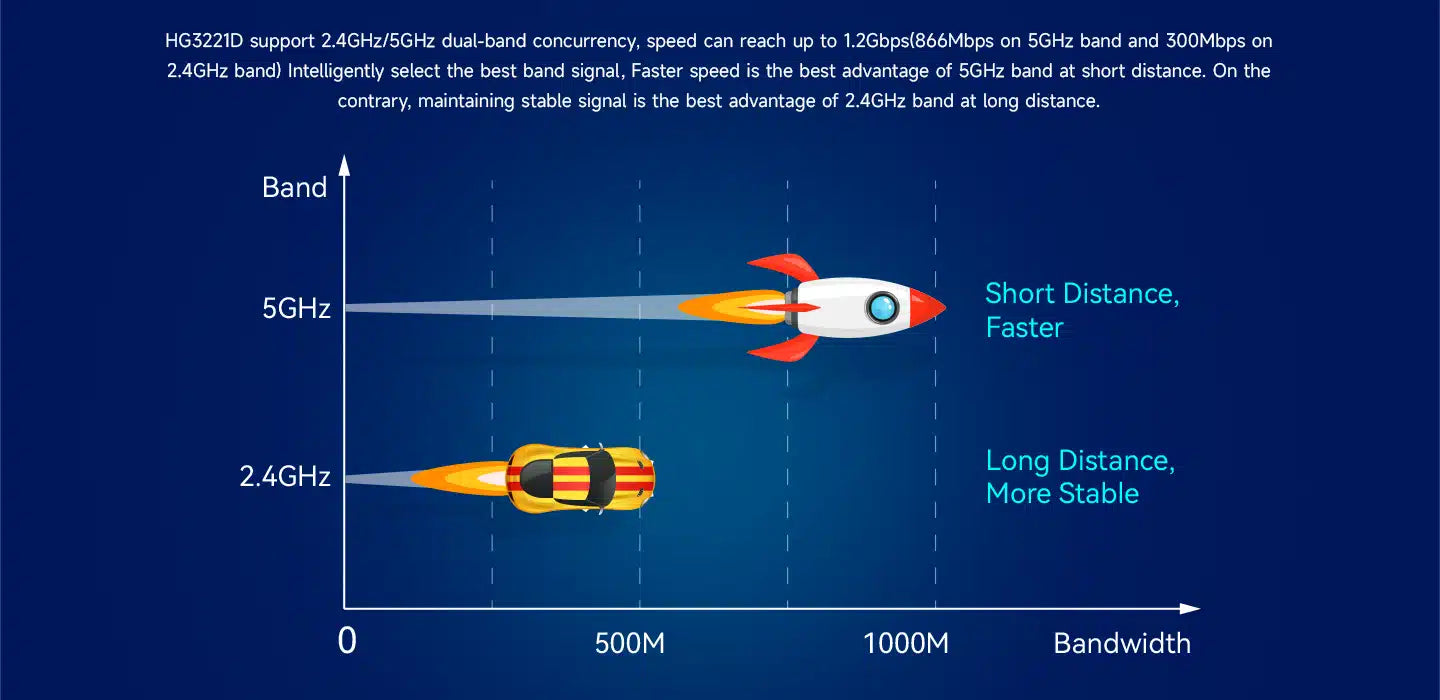

WIFI	Support Frequency:2.4 GHz,5GHz IEEE 802.11a/n/ac Wi-Fi@ 5GHz(2×2) IEEE 802.11b/g/n Wi-Fi@2.4GHz(2×2) Multiple SSIDs for each band WEP/WPA-PSK(TKIP)/WPA2-PSK(AES) Security
L2	802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN
L3	IPv4/IPv6, DHCP Client/Server,PPPoE, NAT,DMZ, DDNS
Firewall	Anti-DDOS, Filtering Based on ACL/MAC/URL
