8GE+WiFi 5 ICT Model: ICT3310DPS-8G2NAC Spec: 1*XPON+8*GE+WiFi5+POE(optional) Weight: 320g

V.SOL

8GE+WiFi 5 ICT

Name: 8GE+WiFi 5 ICT
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: ICT3310DPS-8G2NAC , Spec: 1*XPON+8*GE+WiFi5+POE(optional),

Contact Now

DataSheet PDF

Description
Reviews

Desription

ICT3310DPS-8G2NAC: Compact and Powerful Networking Solution

Meet the ICT3310DPS-8G2NAC, a versatile and compact networking device that packs a punch. With 8 Gigabit Ethernet ports, WiFi 5 capabilities, and optional POE support, this device is perfect for small to medium-sized networks. Weighing only 320g, it's ideal for space-constrained environments.

Key Features:

1 x XPON port
8 x Gigabit Ethernet ports
WiFi 5 capabilities
Optional POE support
Compact design (320g)

Perfect for small networks, IoT devices, and more!

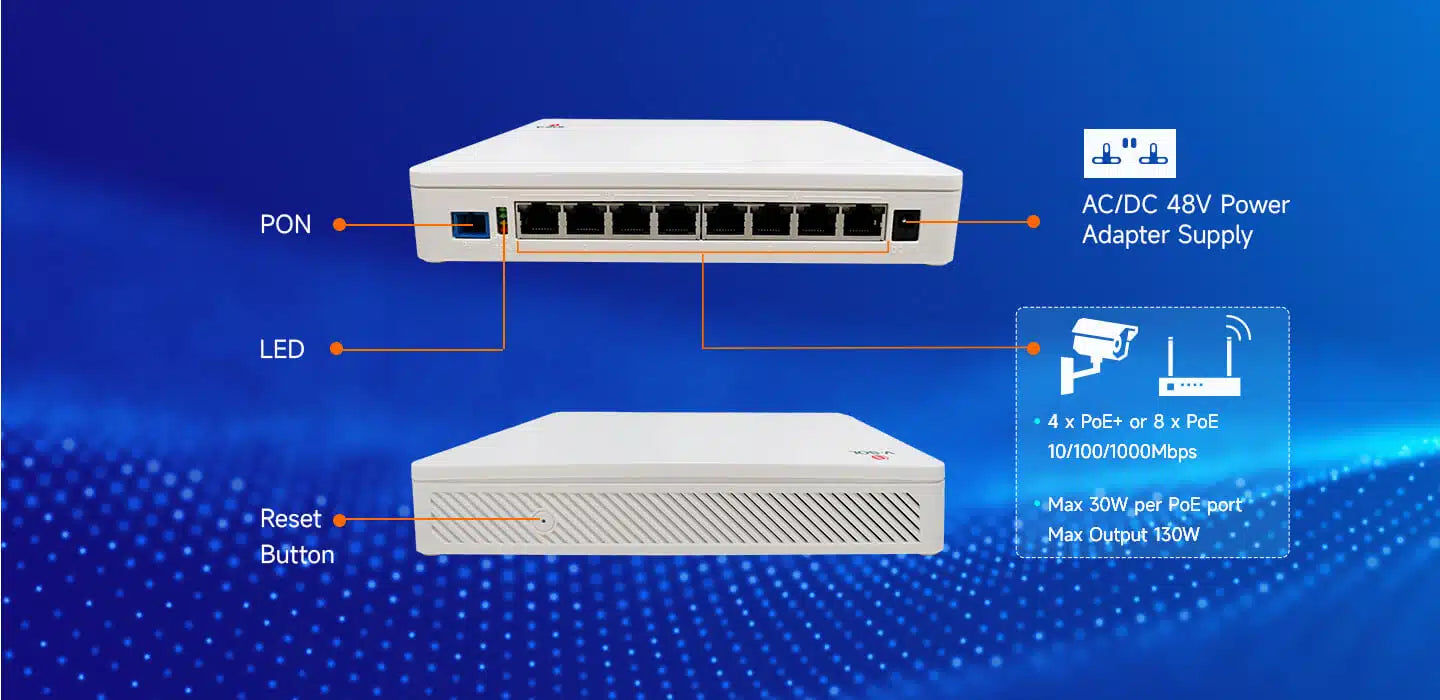

Product Appearance

○ Hardware Parameter
Dimension	196×160×32mm(L×W×H)
Net weight	0.32Kg
Operating condition	Working Temp: -10 ~ +55°C Working Humidity: 5 ~ 95%(non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	ICT3310DPS-8G2NAC: DC 48V, 2.5A (POE） ICT3310D-8G2NAC: DC 12V，1A ICT3310D-4G2NAC: DC12V，1A
Power supply	ICT3310DPS-8G2NAC: ≤130W ICT3310D-8G2NAC: ≤12W ICT3310D-4G2NAC: ≤12W
Interface	1×xPON+8×GE+WiFi5+POE(optional)
Indicators	4, For POWER / WiFi / PON /LOS

○ Interface parameter
PON interface	l 1 XPON port(EPON PX20+ and GPON Class B+) l SC Single Mode，Receiving sensitivity: ≤ –28dBm l TX optical power: 0 ~ +4dBm l Transmission distance: 20KM l RX 2.488Gbps, TX 1.2488Gbps
Wavelength	Tx-1310nm, Rx-1490nm
Optical interface	SC/UPC connector
User interface	l 8*10/100/1000 Mbps auto adaptive Ethernet interface , RJ45 connectors(4×GE Option）. l Support IEEE802.3at standards (POE+ PSE)
WLAN interface	Compliant with IEEE802.11b/g/n/ac,2×2 MIMO 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz

○ Function Data
Management	l Support OMCI(ITU-T G.984.x) l Support CTC OAM 2.0 and 2.1 l Support TR069/Web/Telnet/CLI
Application	l Support L2TP & IPSec VPN l Support EoIP l Support VxLan l Support Web Push
LAN	Support Port rate limiting
WAN	Support config first LAN interface as WAN port
VLAN	l Support VLAN tag/VLAN transparent/VLAN trunk/VLAN translation l Support VLAN based WAN and VLAN based LAN
Multicast	l Support IGMPv1/v2/v3 l Support IGMP Proxy and MLD Proxy l Support IGMP Snooping and MLD Snooping
QoS	l Support 4 queues l Support SP and WRR l Support 802.1P l Support DSCP
Wireless	l Support Wireless AP mode l Support 802.11 b/g/n/ac l Support Multiple SSID l Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) l Modulation type: DSSS, CCK and OFDM l Encoding scheme: BPSK, QPSK, 16QAM and 64QAM l Support EasyMesh
L3	l Support IPv4、IPv6 and IPv4/IPv6 dual stack l Support DHCP/PPPOE/Statics l Support Static route,NAT l Support Bridge, Route ,Route and Bridge mixed mode l Support DMZ, DNS, ALG,UPnP l Support Virtual Server
DHCP	Support DHCP Server & DHCP Relay
Security	Support Filter based on MAC/ACL/URL
